textTable

This page describes the text type with the renderType='textTable'.

The according database field is generated automatically.

The textTable render type triggers a view called "table wizard" to manage the frontend table display in the backend. It is used for the "Table" tt_content content element.

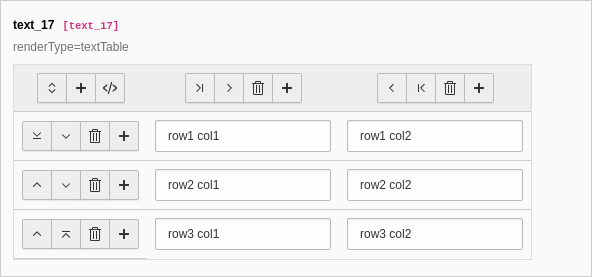

Example: Text field with renderType textTable

The table wizard allows to edit the code-like configuration of the tables with a visual editor.

EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'text_17' => [
            'label' => 'text_17',
            'description' => 'renderType=textTable',
            'config' => [
                'type' => 'text',
                'renderType' => 'textTable',
            ],
        ],
    ],
]
Copied!

Properties of the TCA column type text, render type textTable

Name Type Scope
boolean Proc.
string Display / Proc.
boolean Display
array
array
array
boolean Display
string Display / Proc.
integer Display
string Display
boolean Display
integer Display
array Search
boolean
boolean
string
string Proc.
string (keyword) Display

behaviour

behaviour

allowLanguageSynchronization

allowLanguageSynchronization
Type
boolean
Default
false
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['behaviour']['allowLanguageSynchronization']
Scope
Proc.

Allows an editor to select in a localized record whether the value is copied over from default or source language record, or if the field has an own value in the localization. If set to true and if the table supports localization and if a localized record is edited, this setting enables FieldWizard LocalizationStateSelector: Two or three radio buttons shown below the field input. The state of this is stored in a json encoded array in the database table called l10n_state. It tells the DataHandler which fields of the localization records should be kept in sync if the underlying default or source record changes.

EXT:my_extension/Configuration/TCA/Overrides/someTable.php
<?php

$textTableField = [
    'config' => [
        'type' => 'text',
        'renderType' => 'textTable',
        'behaviour' => [
            'allowLanguageSynchronization' => true,
        ],
    ],
];
Copied!

default

default
Type
string
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['default']
Scope
Display / Proc.

Default value set if a new record is created.

enableTabulator

enableTabulator
Type
boolean
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display
RenderType
default, textTable

Enabling this allows to use tabs in a text field. This works well together with fixed-width fonts (monospace) for code editing.

Does not apply to RTE fields.

Example: Fixed font field with tabulators enabled
EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'text_15' => [
            'label' => 'text_15',
            'description' => 'enableTabulator, fixedFont',
            'config' => [
                'type' => 'text',
                'enableTabulator' => true,
                'fixedFont' => true,
            ],
        ],
    ],
]
Copied!

fieldControl

fieldControl

For details see fieldControl.

fieldInformation

fieldInformation

For details see fieldInformation.

fieldWizard

fieldWizard

defaultLanguageDifferences

defaultLanguageDifferences
Type
array
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['fieldWizard']['defaultLanguageDifferences']

For details see defaultLanguageDifferences.

localizationStateSelector

localizationStateSelector
Type
array
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['fieldWizard']['localizationStateSelector']

For details see localizationStateSelector.

otherLanguageContent

otherLanguageContent
Type
array
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['fieldWizard']['otherLanguageContent']

For details see otherLanguageContent.

fixedFont

fixedFont
Type
boolean
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display
RenderType
default, textTable

Enables a fixed-width font (monospace) for the text field. This is useful when using code.

Does not apply to RTE fields.

Example: Fixed font field with tabulators enabled
EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'text_15' => [
            'label' => 'text_15',
            'description' => 'enableTabulator, fixedFont',
            'config' => [
                'type' => 'text',
                'enableTabulator' => true,
                'fixedFont' => true,
            ],
        ],
    ],
]
Copied!

is_in

is_in
Type
string
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display / Proc.
RenderType
textTable, default

If a user-defined evaluation is used for the field (see eval), then this value will be passed as argument to the user-defined evaluation function.

Does not apply to RTE fields.

max

max
Type
integer
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display
RenderType
textTable, default

Adds the HTML5 attribute "maxlength" to a textarea. Prevents the field from adding more than specified number of characters. This is a client side restriction, no server side length restriction is enforced.

Does not apply for RTE fields.

Example: Textarea with a maximum of 30 characters
EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'text_11' => [
            'label' => 'text_11',
            'description' => 'max=30',
            'config' => [
                'type' => 'text',
                'cols' => 30,
                'rows' => 4,
                'max' => 30,
            ],
        ],
    ],
]
Copied!

placeholder

placeholder
Type
string
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display
Types
input

Placeholder text for the field.

readOnly

readOnly
Type
boolean
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['readOnly']
Scope
Display

Renders the field in a way that the user can see the value but cannot edit it.

rows

rows
Type
integer
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display
RenderType
textTable, codeEditor, default

The number of rows in the textarea. May be corrected for harmonization between browsers. Will also automatically be increased if the content in the field is found to be of a certain length, thus the field will automatically fit the content. Default is 5. Max value is 20.

Does not apply to RTE fields.

Example: A simple text editor with 20 width
EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'text_4' => [
            'label' => 'text_4',
            'description' => 'cols=20, rows=2',
            'config' => [
                'type' => 'text',
                'cols' => 20,
                'rows' => 2,
            ],
        ],
    ],
]
Copied!

search

Type
array
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['search']
Scope
Search
Types
input

Defines additional search-related options for a given field.

pidonly

pidonly
Type
boolean
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['search']['pidonly']

Searches in the column only if search happens on the single page, does not search the field if searching in the whole table.

case

case
Type
boolean
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['search']['case']

Makes the search case-sensitive. This requires a proper database collation for the field, see your database documentation.

andWhere

andWhere
Type
string
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['search']['andWhere']

Additional SQL WHERE statement without 'AND'. With this it is possible to place an additional condition on the field when it is searched

EXT:my_extension/Configuration/TCA/Overrides/someTable.php
<?php

$temporaryColumns['my_editor'] = [
    'config' => [
        'type' => 'text',
        'renderType' => 'textTable',
        'search' => [
            'andWhere' => '{#type}=\'type_x\' OR {#type}=\'type_y\'',
        ],
    ],
];
Copied!

This means that the "my_editor" field of the "tx_mytable" table will be searched in only for elements of type X and Y. This helps making any search more relevant.

The above example uses the special field quoting syntax {#...} around identifiers to be as DBAL compatible as possible.

softref

softref
Type
string
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Proc.
Types
input

Used to attach "soft reference parsers".

The syntax for this value is key1,key2[parameter1;parameter2;...],...

See Soft references of core API for more details about softref keys.

wrap

wrap
Type
string (keyword)
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display
RenderType
textTable, default

Determines the wrapping of the textarea field. Does not apply to RTE fields. There are two options:

virtual (default)
The textarea automatically wraps the lines like it would be expected for editing a text.
off
The textarea will not wrap the lines as you would expect when editing some kind of code.
Example: Textarea with no wrapping
EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'text_5' => [
            'label' => 'text_5',
            'description' => 'wrap=off, long default text',
            'config' => [
                'type' => 'text',
                'wrap' => 'off',
                'default' => 'This textbox has wrap set to "off", so these long paragraphs should appear in one line: Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean non luctus elit. In sed nunc velit. Donec gravida eros sollicitudin ligula mollis id eleifend mauris laoreet. Donec turpis magna, pulvinar id pretium eu, blandit et nisi. Nulla facilisi. Vivamus pharetra orci sed nunc auctor condimentum. Aenean volutpat posuere scelerisque. Nullam sed dolor justo. Pellentesque id tellus nunc, id sodales diam. Sed rhoncus risus a enim lacinia tincidunt. Aliquam ut neque augue.',
            ],
        ],
    ],
]
Copied!
Example: Textarea with virtual wrapping
EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'text_6' => [
            'label' => 'text_6',
            'description' => 'wrap=virtual, long default text',
            'config' => [
                'type' => 'text',
                'wrap' => 'virtual',
                'default' => 'This textbox has wrap set to "virtual", so these long paragraphs should appear in multiple lines (wrapped at the end of the textbox): Lorem ipsum dolor sit amet, consectetur adipiscing elit. Aenean non luctus elit. In sed nunc velit. Donec gravida eros sollicitudin ligula mollis id eleifend mauris laoreet. Donec turpis magna, pulvinar id pretium eu, blandit et nisi. Nulla facilisi. Vivamus pharetra orci sed nunc auctor condimentum. Aenean volutpat posuere scelerisque. Nullam sed dolor justo. Pellentesque id tellus nunc, id sodales diam. Sed rhoncus risus a enim lacinia tincidunt. Aliquam ut neque augue.',
            ],
        ],
    ],
]
Copied!
