CSS Files Organization

All CSS files used in the Backend are in one of two following folders ” structure ” or ” visual “.

Every CSS file inside the ” structure ” directory deals with the layout, positioning of elements and grid-like structure of a page. Typical attributes are: padding, margin, height, width, position, float, etc…

Every CSS file inside the ” visual ” directory basically deals with colors, background images and so on. Typical attributes are: font-size, font-weight, color, background, etc…

Structure

Structure

Visual

Visual

Structure

padding, margin

width, height

position

float

display

visibility

top, right, bottom, left

z-index

clear

Visual

font

color

background

border

overflow

vertical-align

white-space

cursor

text

box-shadow

list-styleline-height

In the TYPO3 Core itself, you will find mainly styles that belong to the structure of a page, you will find this under typo3/stylesheets/structure/. There is no visual stylesheet because it is the purpose of a skin to “dress up” the TYPO3 Backend. You can experiment by removing every skin extension from the Extension Manager. You will have a “naked” but still usable TYPO3 Backend.

img-3 Furthermore, styles should be grouped together to identify them easily. But instead of having one big file that contains all styles, they are in separate files according to their purpose. The stylesheets for the TYPO3 Core are:

img-4 For a more in-depth understanding of the structure, have a look into the files within “typo3/stylesheets/”.

In a skin extension, it makes sense to have a “visual” folder containing all the icons, backgrounds, stylesheets etc. The “structure” folder will contain styles that may override the default structure styles. Normally, you should have more visual styles than structure styles in a skin.

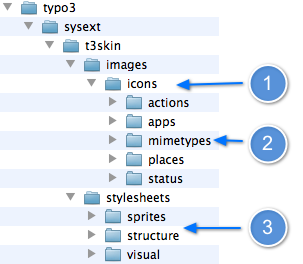

img-5 #. the icons folder

  1. the different group of icons
  2. the stylesheets containing the sprites, structure and visual information
