Extend Existing PDFs

Intro

There is the possibility to load existing PDF documents and use them as template. Under the hood pdfviewhelpers uses FPDI to import PDF documents as template. You must include the static TypoScript template of the extension in order to make this example work.

TypoScript

pdfpage = PAGE
pdfpage {
	10 = FLUIDTEMPLATE
	10 {
		file = EXT:pdfviewhelpers/Resources/Public/Examples/ExtendExistingPDFs/Template.html
	}
	# ensure there is no other output apart from the pdf
	# take a look at the generated pdf file (end!) in a text editor to verify there is no other output
	# like warnings, error messages or html code
	config {
		disableAllHeaderCode = 1
		xhtml_cleaning = 0
		admPanel = 0
	}
}

Fluid Template

<html xmlns="http://www.w3.org/1999/xhtml"
	  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	  xmlns:f="http://typo3.org/ns/TYPO3/CMS/Fluid/ViewHelpers"
	  xmlns:pdf="http://typo3.org/ns/Bithost/Pdfviewhelpers/ViewHelpers"
	  xsi:schemaLocation="http://typo3.org/ns/Bithost/Pdfviewhelpers/ViewHelpers https://pdfviewhelpers.bithost.ch/schema/3.0.xsd"
	  data-namespace-typo3-fluid="true">

<pdf:document sourceFile="EXT:pdfviewhelpers/Resources/Public/Examples/ExtendExistingPDFs/pdf_template.pdf">
	<pdf:page importPage="1" margin="{top: 80, right: 20, bottom: 40, left: 20}">
		<pdf:headline>Here is your header</pdf:headline>
		<pdf:text>Lorem ipsum dolor sit amet, consetetur sadipscing elitr, sed diam nonumy eirmod tempor invidunt.</pdf:text>
		<pdf:html autoHyphenation="1">
			<h1 style="font-weight: normal; font-size: 16px;">Here is the HTML header</h1>
			<p>Lorem ipsum dolor sit amet, consetetur
				sadipscingelitrseddiamnonumyeirmodtemporinviduntutlaboreetdoloremagnaaliquyameratseddiam
				voluptua. At vero eos et dolores et ea rebum. Stet
				clita kasd gubergren, no sea takimata sanctus est
				Lorem ipsum dolor sit amet. Lorem ipsum dolor sit
				diam nonumy eirmod tempor invidunt ut labore et
				dolore magna aliquyam erat, sed diam voluptua. At
				vero eos et accusam et justo duo dolores et ea
				rebum. Stet clita kasd gubergren est Lorem ipsum
				dolor sit amet.</p>
			<p>Lorem ipsum dolor sit amet, consetetur sadipscing
				elitr, sed diam nonumy eirmod tempor invidunt ut
				labore et dolore magna aliquyam erat, sed diam
				voluptua. At vero eos et dolores et ea rebum. Stet
				clita kasd gubergren, no sea takimata sanctus est
				Lorem ipsum dolor sit amet. Lorem ipsum dolor sit
				diam nonumy eirmod tempor invidunt ut labore et
				dolore magna aliquyam erat, sed diam voluptua. At
				vero eos et accusam et justo duo dolores et ea
				rebum. Stet clita kasd gubergren est Lorem ipsum
				dolor sit amet.</p>
		</pdf:html>
	</pdf:page>
</pdf:document>

</html>

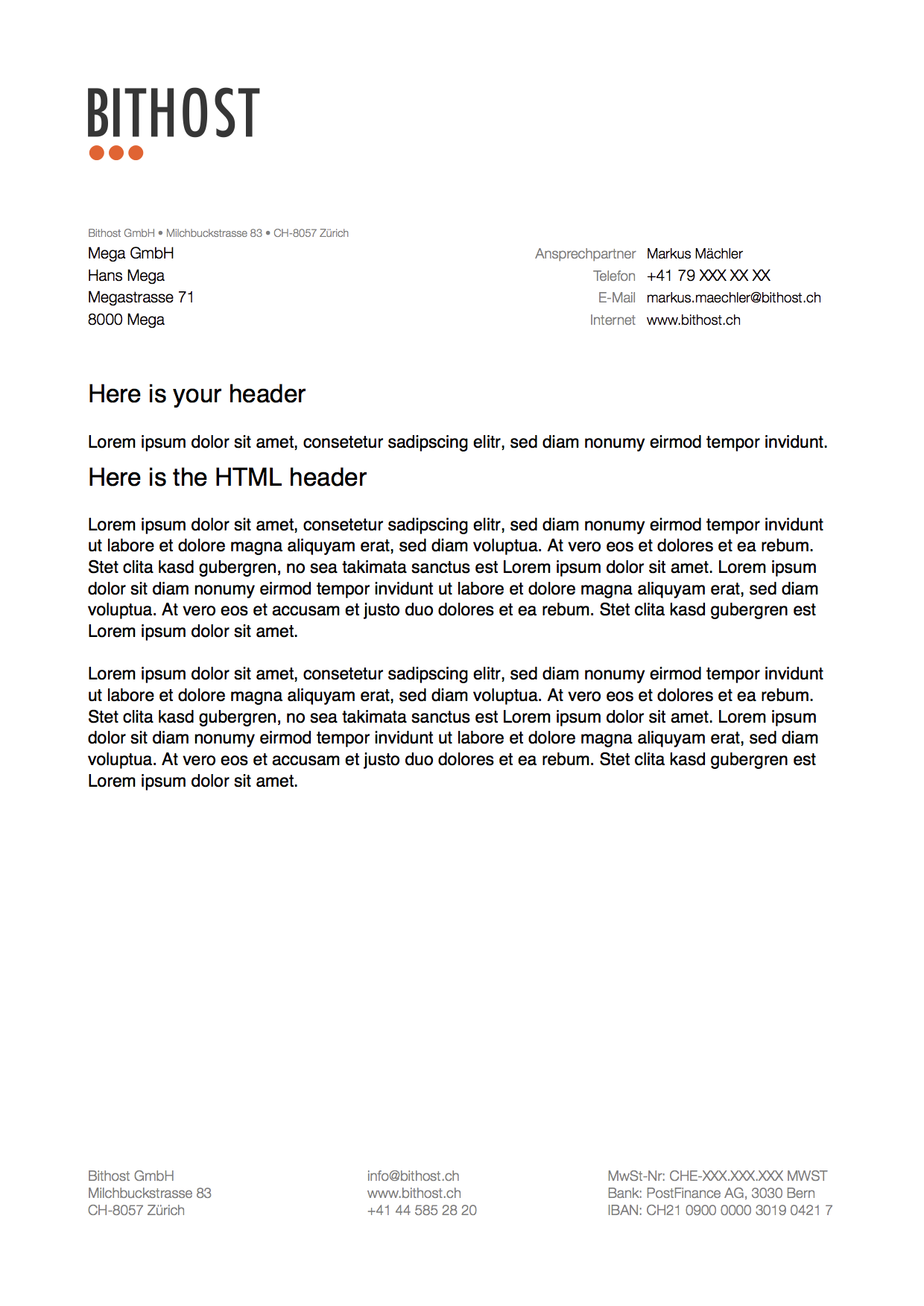

PDF Output

|
