Overview¶
This TYPO3 extensions displays data about COVID-19 (Coronavirus SARS-CoV-2) from the German RKI.
Features¶
Create your own graph with the data you like:

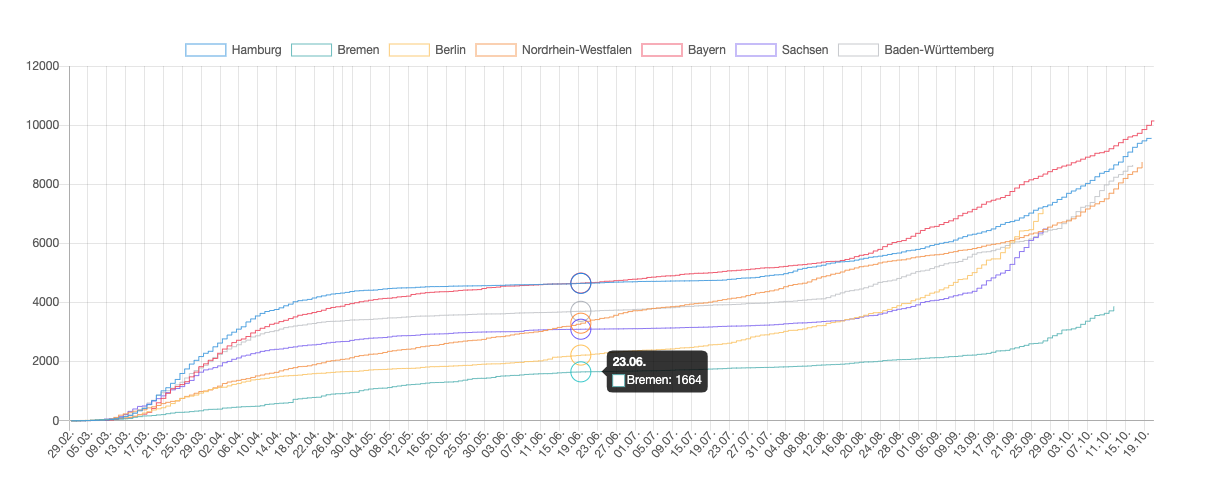

- Compare cities or states in one graph
- Display different corona virus numbers
- Number of infections
- Daily new infections
- Daily new infections (7-Days Ø)
- Incidence value: Number of infections (7-Days Σ/100.000)

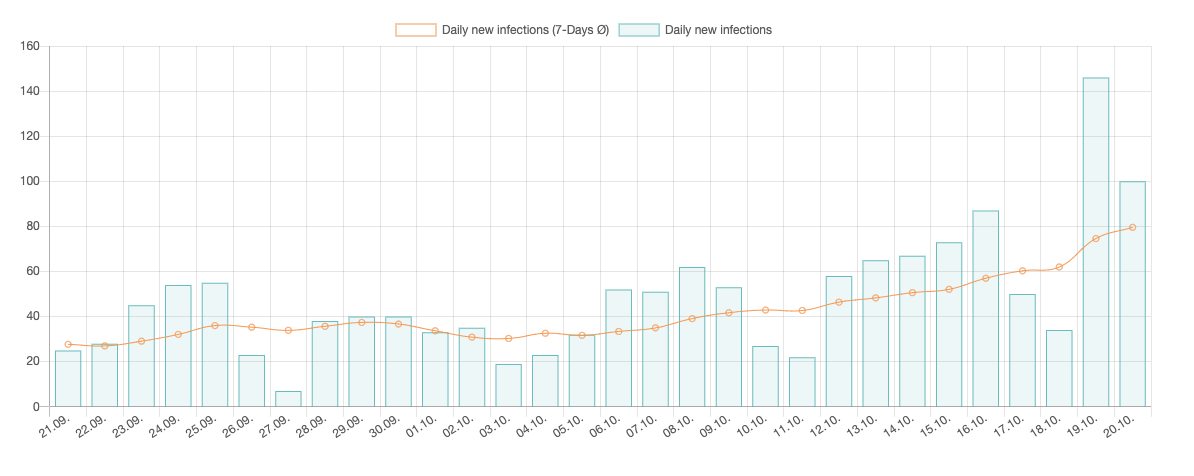

- Display as line or bar graph
- Select color
- Refresh data with scheduler
Installation¶
Install via composer
composer require blueways/bw-covid-numbers
Include TypoScript
Enable the extension in the Extension Manager and include the static TypoScript template or manually include setup and constants.
Add scheduler task
Create a new task and select COVID-19 numbers cache. Let it run once a day.
Usage¶

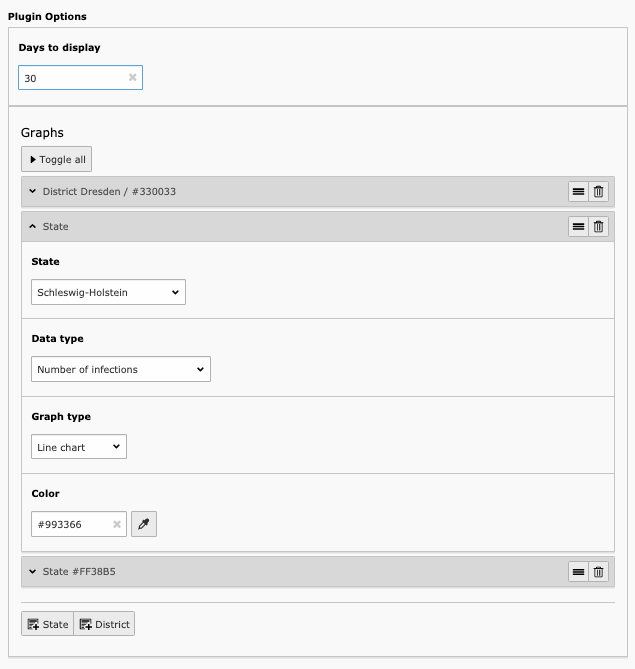

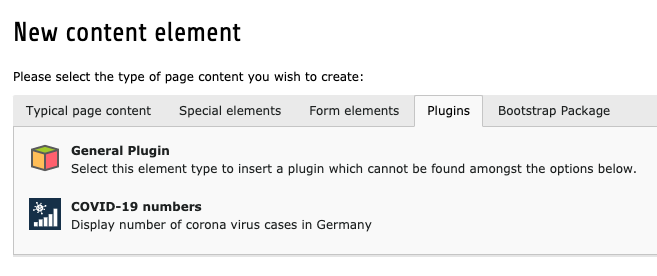

Add the new plugin “COVID-19 numbers” to any page and set up your desired output data in plugin settings.
Configuration¶
Setup¶
You can customize the style of the bar and line chart by setting the dataset properties of chart.js via TypoScript:
plugin.tx_bwcovidnumbers_pi1.settings {
datasetOptions {
line {
pointRadius = 0
pointHoverRadius = 10
steppedLine = true
# For more options see: https://www.chartjs.org/docs/latest/charts/line.html#dataset-properties
}
bar {
borderWidth = 0
hoverBackgroundColor = rgba(0,0,0,0.5)
# For more options see: https://www.chartjs.org/docs/latest/charts/bar.html#dataset-properties
}
}
chartOptions {
aspectRatio = 2
# For more options see:
# https://www.chartjs.org/docs/latest/general/options.html
# https://www.chartjs.org/docs/latest/general/responsive.html
}
}
Tip
To change the onload of the charts, have look at the initChartJs.js
. This file gets included via plugin.tx_bwcovidnumbers_pi1.settings.initChartJs
.
Known issues¶
- The color picker in TYPO3 v7 does not properly work with multiple flexform items: You need to save the plugin settings once before selected color becomes saved.
