Basic Kerberos configuration of intranet.example.com

The method described here as five steps:

Install the mod_auth_kerb authentication module.
Create a service principal <Principal> for the web server.
Create a keytab for the service principal.
Specify the authentication method to be used.
Specify a list of authorized users or user groups.

First of all, you should make sure the clocktime of KDC, workstation and web server is in sync (5 minutes are the highest difference you may allow for Kerberos to work properly).

You may use NTP for that task.

Installing the mod_auth_kerb authentication module

Within an intranet.example.com shell, install the package:

$ sudo apt-get install libapache2-mod-auth-kerb krb5-user

Hint

krb5-user is not an actual requirement but it will provide handy command-line tools for Kerberos.

Hint

In Debian 11 (Bullseye) the module libapache2-mod-auth-kerb is not available anymore. You can use libapache2-mod-auth-gssapi instead.

$ sudo apt-get install libapache2-mod-auth-gssapi

In additional to libapache2-mod-auth-kerb, this will install the dependency package krb5-config and then show you a configuration wizard asking for:

Default Kerberos version 5 realm. Use EXAMPLE.COM (in capital letters).
The KDC. My Active Directory server is ws2008r2.example.com, replace by your own. In a larger organization, you probably have two domain controllers, for redundancy reason.
The administration server. This is typically the same as the LDAP/Active Directory server or in case of multiple domain controllers, this should be normally set to the master.

Settings you provide are then stored within configuration file /etc/krb5.conf which should look like this after the wizard configuration:

[libdefaults]
    default_realm    = EXAMPLE.COM

[realms]
    EXAMPLE.COM = {
        kdc          = ws2008r2.example.com
        #kdc          = other-kdc.example.com
        #master_kdc   = ws2008r2.example.com
        admin_server = ws2008r2.example.com
    }

[domain_realm]
    .example.com     = EXAMPLE.COM

[logging]
    kdc              = SYSLOG:NOTICE
    admin_server     = SYSLOG:NOTICE
    default          = SYSLOG:NOTICE

Note

A description of each section and the meaning of keys is available on http://web.mit.edu/kerberos/krb5-1.5/krb5-1.5/doc/krb5-admin/krb5.conf.html.

You should now check that Kerberos works on intranet.example.com. Do a basic check using kinit:

Ensure that intranet can reach KDC ws2008rs2 via the network (ping, ...).
Have a username and password in Windows Domain EXAMPLE.COM. In this example einstein is used as username.
Within the shell, type:
```
$ kinit einstein@EXAMPLE.COM
```
Copied!
If everything is OK the command will ask you for einstein's domain password and terminates without an error message.
Note

If command fails with
```
kinit: Cannot resolve servers for KDC in realm "example.com" while
getting initial credentials
```
Copied!
then it most probably means that you did not pay attention to writing the realm in CAPITAL LETTERS.

Finally use klist to show the initial ticket you have got from the KDC:

$ klist
Default principal: einstein@EXAMPLE.COM

Valid starting    Expires           Service principal
31/10/2014 13:12  31/10/2014 23:11  krbtgt/EXAMPLE.COM@EXAMPLE.COM
        renew until 01/11/2014 13:12

Creating a service principal for the web server

SPNEGO requires that a Kerberos service principal be created for the web server. The service name is defined to be HTTP, so for the server intranet.example.com the required service principal name is HTTP/intranet.example.com@EXAMPLE.COM.

Create a dummy account in Windows Domain EXAMPLE.COM. It is used like a machine account but is nevertheless a standard user account. In this example the name of dummy account is kerbdummy1.
Log in to the domain controller ws2008r2 and use the Windows command line tool ktpass to map the dummy account kerbdummy1 to the service principal HTTP/intranet.example.com@EXAMPLE.COM. You need that service principal to kerberize host intranet:
```
C:\>ktpass
  -princ HTTP/intranet.example.com@EXAMPLE.COM
  -mapuser kerbdummy1@EXAMPLE.COM
  -crypto AES256-SHA1
  -ptype KRB5_NT_PRINCIPAL
  -pass very!$longp@ssw0rd
  -out C:\temp\intranetkeytab
```
Copied!
Note

If you have to target Windows XP machines, AES256-SHA1 is not supported. Use the legacy crypto RC4-HMAC-NT instead.

Warning

Even if you target recent machines such as running Windows 8.x, AES256-SHA1 may not be supported either. Please check section Basic authentication prompt is always shown for details.
Copy file C:\\temp\\intranetkeytab from the domain controller ws2008r2 to the location where it should reside on host intranet, in our example /etc/apache2/http_intranet.keytab and make www-data its owner.

Note

An alternate way to create the needed keytab file is with the help of kadmin directly on your Linux machine. Please refer to www.microhowto.info for instructions.

Check if the KDC sends correct tickets by checking in detail:

ticket's kvno must match kvno in keytab
principal name in ticket must match the principal name in keytab

$ kvno HTTP/intranet.example.com@EXAMPLE.COM
HTTP/intranet.example.com@EXAMPLE.COM: kvno = 4

$ klist -e
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: HTTP/intranet.example.com@EXAMPLE.COM

Valid starting    Expires           Service principal
31/10/2014 14:53  01/11/2014 00:52  krbtgt/EXAMPLE.COM@EXAMPLE.COM
        renew until 01/11/2014 14:53, Etype (skey, tkt): aes256-cts-hmac-sha1-96, ...
31/10/2014 15:09  01/11/2014 00:52  HTTP/intranet.example.com@EXAMPLE.COM
        renew until 01/11/2014 14:53, Etype (skey, tkt): arcfour-hmac, arcfour-hmac

$ klist -e -k -t /etc/apache2/http_intranet.keytab
Keytab name: FILE:http_intranet.keytab
KVNO Timestamp        Principal
---- ---------------- ---------------------------------------------------------
   4 01/01/1970 01:00 HTTP/intranet.example.com@EXAMPLE.COM (aes256-cts-hmac-sha1-96)

Check that the key has been correctly added to the keytab by attempting to use it to authenticate as the service principal, then view the resulting ticket-granting ticket using klist:

$ kinit -k -t /etc/apache2/http_intranet.keytab HTTP/intranet.example.com
$ klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: HTTP/intranet.example.com@EXAMPLE.COM

Valid starting    Expires           Service principal
31/10/2014 14:11  01/11/2014 00:10  krbtgt/EXAMPLE.COM@EXAMPLE.COM
        renew until 01/11/2014 14:11

Note

if command fails with

kinit: Generic preauthentication failure while getting initial credentials

It may be related to using a legacy crypto. Try to edit file /etc/krb5.conf and update it to actively specify older cryptos:

[libdefaults]
    default_realm = EXAMPLE.COM
    default_tkt_enctypes = rc4-hmac des-cbc-crc des-cbc-md5
    default_tgs_enctypes = rc4-hmac des-cbc-crc des-cbc-md5

Specifying the authentication method to be used

Apache must be told which parts of which web sites are to use authentication provided by mod_auth_kerb. This is done using the AuthType directive with a value of Kerberos.

In order to protect the whole TYPO3 website, add following snippet to your virtual host configuration:

<Location />
    AuthType Kerberos
    AuthName "Intranet of example.com"
    KrbMethodNegotiate on
    KrbMethodK5Passwd off
    # Allow shorter username (without realm):
    KrbAuthRealms EXAMPLE.COM
    KrbServiceName HTTP
    Krb5Keytab /etc/apache2/http_intranet.keytab

    # Disable the verification tickets against local keytab to
    # prevent KDC spoofing attacks
    # It should be used only for testing purposes
    KrbVerifyKDC off
</Location>

If you are using ``libapache2-mod-auth-gssapi``, add the following snippet instead:

<Location />
		SSLRequireSSL
		AuthType GSSAPI
		AuthName "Intranet of example.com"
		GssapiBasicAuth On
		GssapiCredStore keytab:/etc/apache2/http_intranet.keytab
		GssapiLocalName On
		require valid-user
</Location>

Note

Other configuration options are available on http://modauthkerb.sourceforge.net/configure.html.

Note

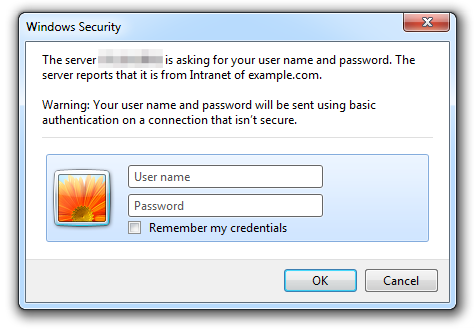

If there is a need for the web site to be accessible to its authorized users from machines that are not part on the Kerberos realm, you may let mod_auth_kerb ask the user for her password using basic authentication and then validate that password by attempting to authenticate to the KDC. Please note however that this is significantly less secure than true Kerberos authentication:

To do so, change:

KrbMethodK5Passwd on

Warning

If you need to enable fallback to basic authentication, you should do that in conjunction with SSL since the password is sent Base64-encoded, that is, as readable as clear text. The use of SSL encryption is also recommended if you are using the Negotiate method.

Specifying a list of authorized users or user groups

Having an authentication method does not by itself restrict access to the web site until you disallow access by anonymous users using Require directive:

<Location />
    # ...
    Require valid-user
</Location>

Please refer to the Apache documentation if you want to restrict access to certain users or groups (if so, you will certainly need to use another authorization module such as mod_authnz_ldap).

Final step is to reload the Apache configuration:

$ sudo apache2ctl configtest
Syntax OK
$ sudo service apache2 force-reload

You will need to access your website from a machine within your domain or by authenticating with the basic authentication dialog, if enabled. TYPO3 will then read the authenticated username from $_SERVER['REMOTE_USER'] and silently create the frontend user session, if it does not exist yet. You do not need any frontend login plugin for your website.

Note

If you are not using Microsoft Internet Explorer, you may need to configure your browser to enable Single Sign-On. Please refer to https://wiki.shibboleth.net/confluence/display/SHIB2/Single+sign-on+Browser+configuration.
