Reaction (External Import endpoint)

Defining the reaction

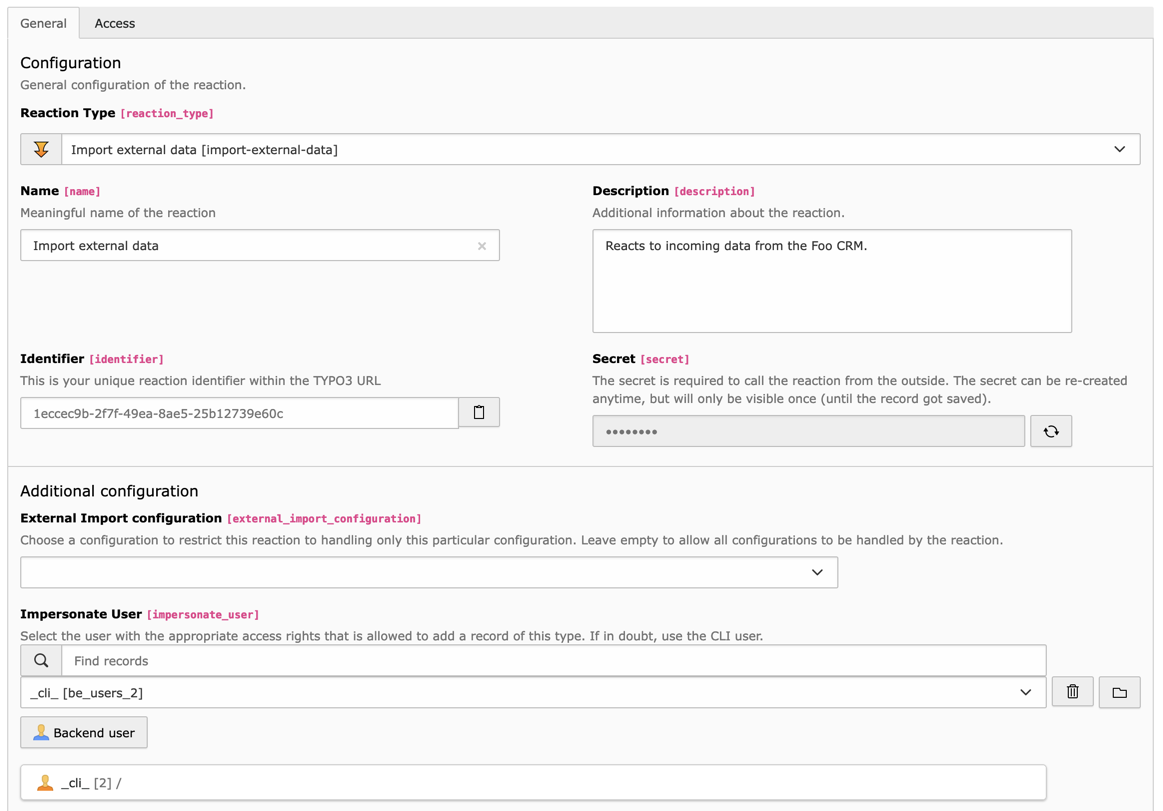

A reaction must be defined using the "Reactions" module in the TYPO3 backend. There can be more than one External Import reaction depending on your needs. Having several reactions allows you to distribute secret keys to different people.

Choosing a configuration is optional. If one is chosen, the reaction will only execute if the incoming configuration matches the selected configuration. This provides better safety, but is more restrictive.

It is absolutely necessary to choose a BE user to impersonate, otherwise the data will not be stored. The easiest option is to choose the _cli_ user but this may seem too encompassing. You can use another BE user or define a specific one, but make sure that it has the proper rights for writing to the table(s) targeted by the import.

External Import configuration

The External Import configuration does not need anything special to be used by a reaction. However if it is only ever used by reactions, then it does not need connector information and can thus be a Non-synchronizable table.

Request payload

To call the endpoint and trigger the External Import reaction, you need to call the URI given by the reaction and pass it the secret key in the headers. The payload in the request body is comprised of the following information:

table

The name of the table targeted by the import (not necessary when a configuration is explicitly defined).

index

The index of the targeted External Import configuration (not necessary when a configuration is explicitly defined).

data

The actual data to import. This can be either a JSON array (for array-type data) or a (XML) string for XML-type data).

pid (optional)

If defined, this uid from the "pages" table will override the pid property from the general configuration.

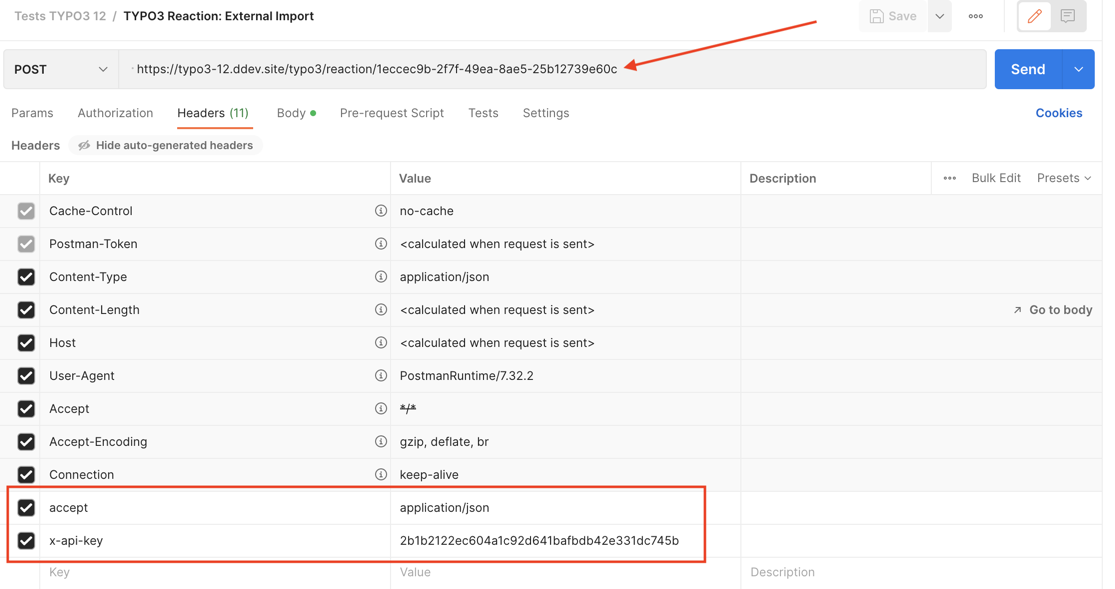

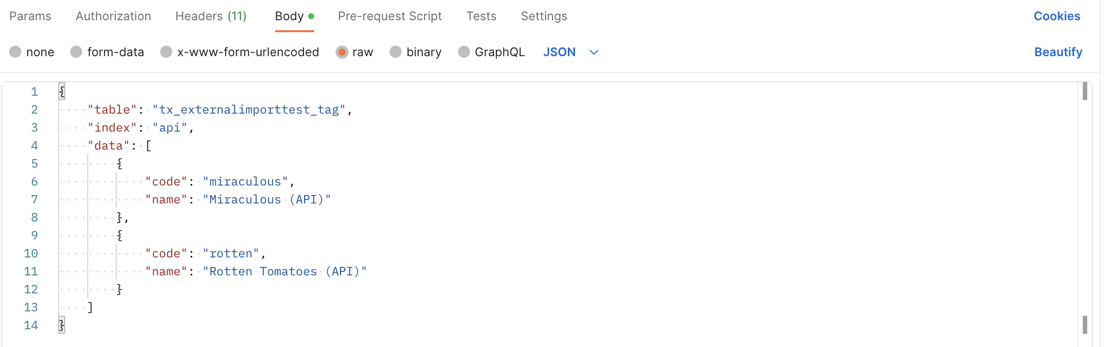

Here is how it could look like (example made with Postman):
