Tab “Elements”

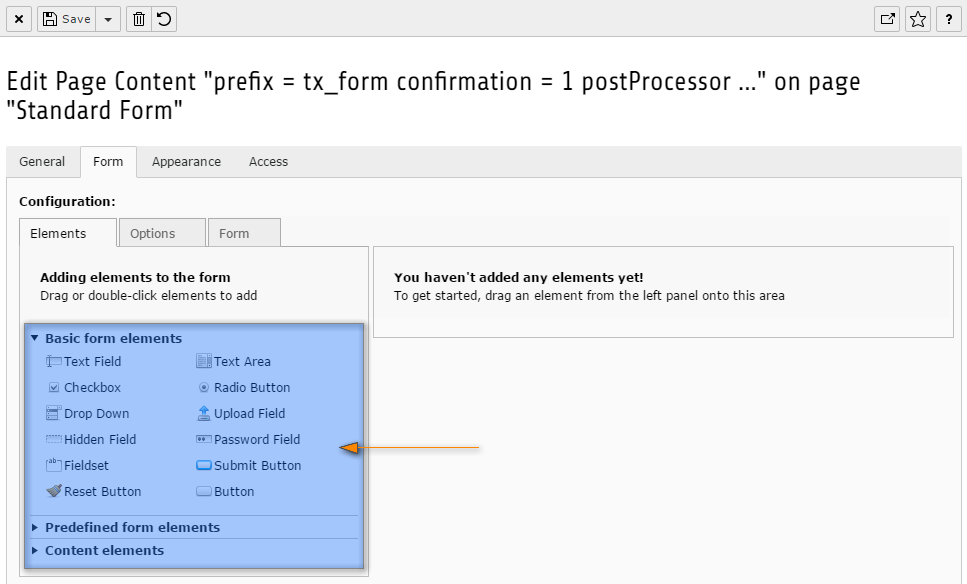

The elements tab contains an accordion with buttons, grouped by their type. These buttons identify a form element, like a text field, password field or submit button. When dragging a button to the form on the right and dropping it at a certain point in the form, the element will be added to the form at that point. An editor can also double click a button. When doing so, the element will be added at the end of the form.

showAccordions

(mod.wizards.form.defaults.tabs.elements.showAccordions)

Property:

showAccordions

Data type:

string

Description:

Comma-separated list of the accordions that will be shown in the wizard. Each of the three accordions contain a single showButton property which defines which form elements will be shown in a given accordion.

Default:

basic, predefined, content

showButtons

(mod.wizards.form.defaults.tabs.elements.accordions.[NameOfAccordion].showButtons)

Property:

showButtons

Data type:

string

Description:

Comma-separated list of the buttons that will be shown in the accordion. Please note, in the shown path has [NameOfAccordion] to be replaced with the name of the specific accordion.

Default:

“basic” elements

• textline (Text Field)
• textarea (Textarea)
• checkbox (Checkbox)
• radio (Radio Button)
• select (Drop Down)
• fileupload (Upload Field)
• hidden (Hidden Field)
• password (Password Field)
• fieldset (Fieldset)
• submit (Submit Button)
• reset (Reset Button)
• button (Button)

“predefined” elements

• name (Full Name)
• email (Email)
• checkboxgroup (Checkbox Group)
• radiogroup (Radio Button Group)

“content” elements

• header (Header)
• textblock (Text Block)

Default configuration

The default configuration of the elements tab is as follows.

mod.wizards {
  form {
    defaults {
      showTabs = elements, options, form
      tabs {
        elements {
          showAccordions = basic, predefined, content
          accordions {
            basic {
              showButtons = textline, textarea, checkbox, radio, select, fileupload, hidden, password, fieldset, submit, reset, button
            }
            predefined {
              showButtons = name, email, checkboxgroup, radiogroup
            }
            content {
              showButtons = header, textblock
            }
          }
        }
      }
    }
  }
}
