Users Manual

Required Configuration

  1. To use reCAPTCHA, you need to sign up for an API key pair for your site: http://www.google.com/recaptcha/admin
  2. Set your API key pair in TypoScript:
1
2
3
4
5
6
7
8
plugin.tx_jhcaptcha {
    settings {
        reCaptcha {
            siteKey =
            secretKey =
        }
    }
}

Optional Configuration

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
plugin.tx_jhcaptcha {
    settings {
        reCaptcha {
            # Description: The color theme of the widget
            # Options: dark | light
            # Default: light
            theme = light
            # Description: The type of CAPTCHA to serve
            # Options: audio | image
            # Default: image
            type = image
            # Description: The language of the widget
            # Options: https://developers.google.com/recaptcha/docs/language
            # Default: en
            lang = en
            # Description: The size of the widget
            # Options: normal | compact
            # Default: normal
            size = normal
        }
    }
}

Usage in powermail

The reCAPTCHA can easy be used in the extension powermail. The following steps are necessary:

Note

Note that the usage has only been tested in the powermail versions 2.2 - 3.11! Most likely it will also work with later versions.

1. Page-TSconfig

First, a new field in powermail must be created for the reCAPTCHA. Add the following line to the PageTSconfig.

1
tx_powermail.flexForm.type.addFieldOptions.jhcaptcharecaptcha = reCAPTCHA (jh_captcha)

2. TypoScript

Take TypoScript Setup to tell powermail, where to find the partial:

1
2
3
4
5
6
7
8
plugin.tx_powermail.view {
    partialRootPath >
    partialRootPaths >
    partialRootPaths {
        10 = EXT:powermail/Resources/Private/Partials/
        20 = EXT:jh_captcha/Resources/Private/Powermail/Partials/Jhcaptcharecaptcha
    }
}

3. Form

Now you can use it in your form.

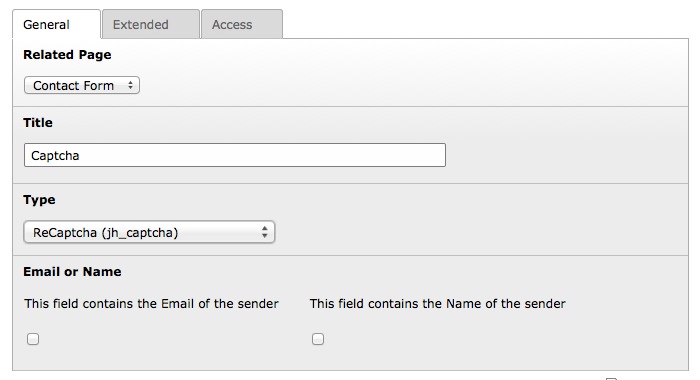

  1. Create a new field in your form, set a title (“Captcha” for example) and select the type “reCAPTCHA (jh_captcha)”.
../_images/Form1.jpg

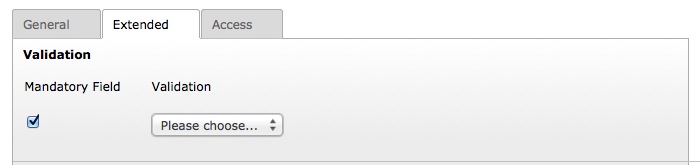

  1. Go to the “Extended” tab. Check “Mandatory Field” and let the “Validation” field blank.
../_images/Form2.jpg

Now the reCAPTCHA is ready!

Usage in Formhandler

The reCAPTCHA can easy be used in the extension formhandler. The following steps are necessary:

Note

Note that the usage has only been tested in the formhandler versions 2.0 and 2.3 - 2.4! Versions 2.1-2.2 don’t work, because there is a bug in error check (fixed with 2.3 http://www.typo3-formhandler.com/footer/history/release-notes/version-230/ )! Most likely it will also work with later versions.

1. Mastertemplate

First the captcha needs to be included in the master template. Example:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
<!-- ###master_spamprotection-jh_captcha_recaptcha### -->
<div class="row">
    <div class="large-3 columns">
        <label class="###is_error_jh_captcha_recaptcha###">###LLL:jh_captcha_recaptcha### ###required_jh_captcha_recaptcha###</label>
    </div>
    <div class="large-9 columns">
        ###jh_captcha_recaptcha###
        ###error_jh_captcha_recaptcha###
    </div>
</div>
<!-- ###master_spamprotection-jh_captcha_recaptcha### -->

2. Template

Now the marker can be used in the Form Template:

1
###master_spamprotection-jh_captcha_recaptcha###

3. TypoScript

Then the validators need to be assigned to the captcha field:

Formhandler 2.0:

1
2
3
4
5
6
7
8
[...]
validators.1.config.fieldConf {
    jh_captcha_recaptcha.errorCheck {
        1 = required
        2 = Tx_JhCaptcha_ErrorCheck_ReCaptcha
    }
}
[...]

Formhandler 2.3 - 2.4:

1
2
3
4
5
6
7
8
    [...]
    validators.1.config.fieldConf {
        jh_captcha_recaptcha.errorCheck {
            1 = required
            2 = \Haffner\JhCaptcha\Validation\ErrorCheck\ReCaptcha
        }
    }
    [...]

4. Language file

Finally, the label and the error messages must be defined. Example:

1
2
3
<label index="jh_captcha_recaptcha">reCAPTCHA</label>
<label index="error_jh_captcha_recaptcha_required">reCAPTCHA is a mandatory field.</label>
<label index="error_jh_captcha_recaptcha_Tx_JhCaptcha_ErrorCheck_ReCaptcha">reCAPTCHA validation error</label>

Now the reCAPTCHA is ready!
