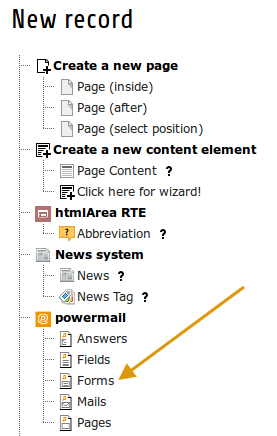

Add a new Form

Introduction

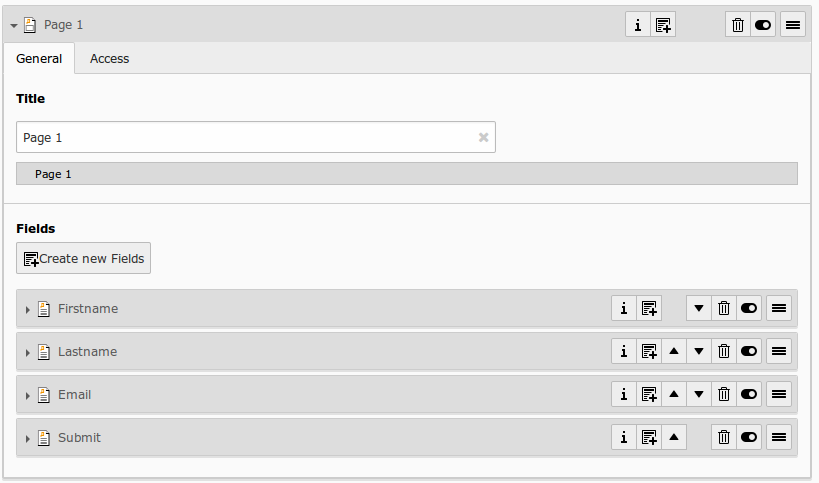

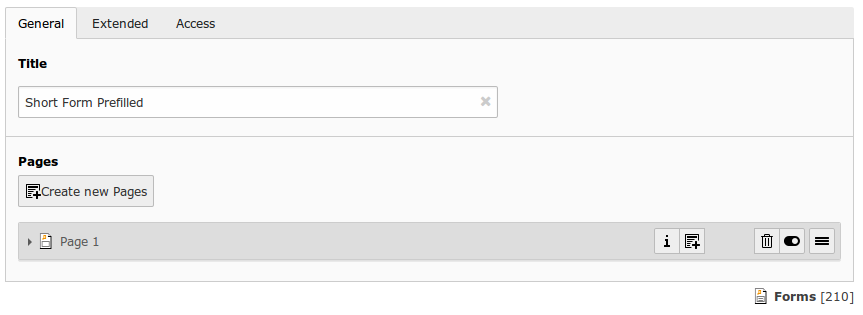

A powermail forms is the main record which contains multiple pages and fields. So if you create and store a form, you can use this on one or more pages. A form that is included in a pagecontent (in a plugin) will be shown in frontend and can be used by website visitors.

Field Settings

General

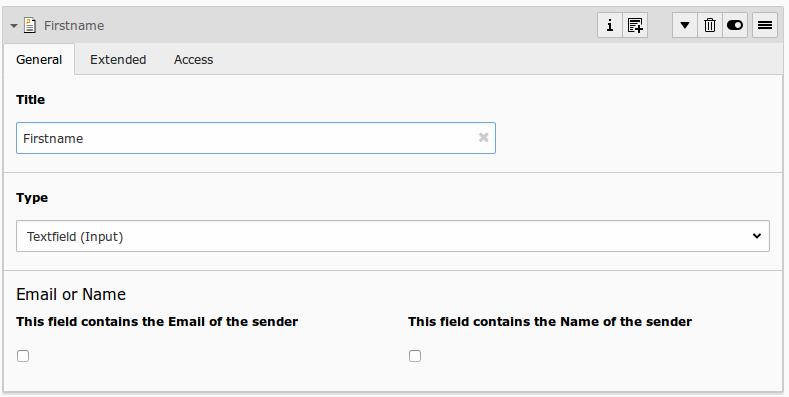

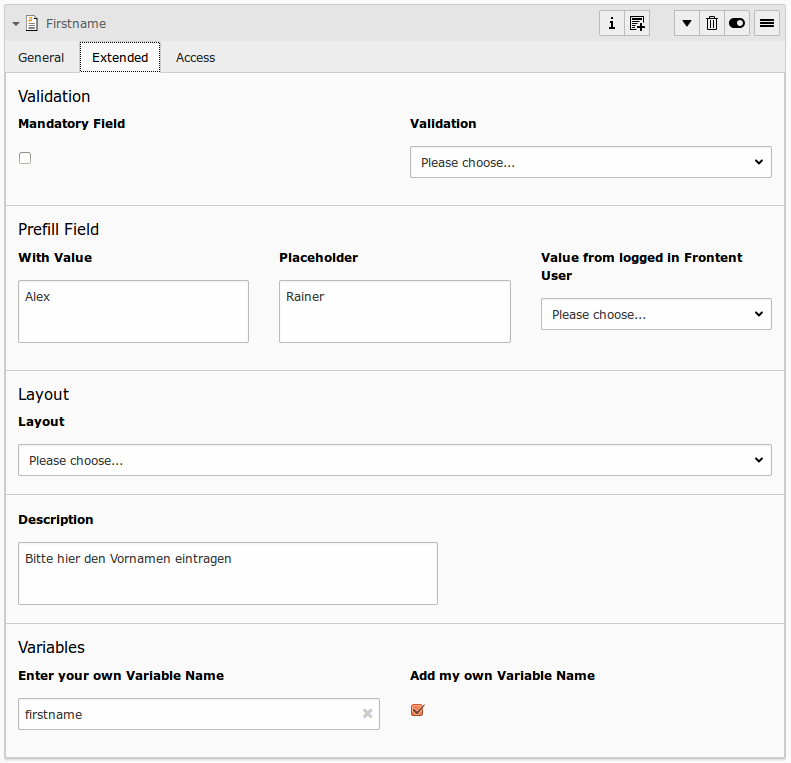

Backend Configuration Example

Explanation

Field	Description	Explanation	Tab
Title	Add a label for this field.	The label is shown in the frontend near to this field.	General
Type	Choose a fieldtype.	See explanation below for a special fieldtype. Different fields are related to some fieldtypes – not all fields are shown on every type.	General
Email of sender	Check this if this field contains the email of the sender.	This is needed to set the correct sender-email-address. If there is no field marked as Senderemail within the current form, powermail will use a default value for the Senderemail.	General
Name of sender	Check this if this field contains the name (or a part of the name) of the sender.	This is needed to set the correct sender-name. If there is no field marked as Sendername within the current form, powermail will use a default value for the Sendername.	General
Mandatory Field	This field must contain input.	Check this if the field must contain input, otherwise submitting the form is not possible.	Extended
Validation	Validate the user input with a validator.	Possible Validation Methods are: Email, URL, Phone, Numbers only, Letters only, Min Number, Max Number, Range, Length, Pattern (RegEx)	Extended
Prefill with value	Prefill field value with a static content.	Other possibilities to prefill a field: TypoScript, GET or POST params	Extended
Placeholder	Add a placeholder for this input field.	A placeholder text is an example, that should help the user to fill out an input field. This text is shown in bright grey within the input field. If you have a name field, you could use the placeholder “John Doe".	Extended
Value from logged in Frontend User	Check if field should be filled from the FE_Users table of a logged in fe_user.	This value overwrites a static value, if set.	Extended
Layout	Choose a layout.	This adds a CSS-Class to the frontend output. Administrator can add, remove or rename some of the entries.	Extended
Description	Add a description for this field.	Per default a description will be rendered as title-attribute in the labels in frontend.	Extended
Variables – Individual Fieldname	This is a marker of this field.	Use a field variable with {marker} in any RTE or HTML-Template. The marker name is equal in any language.	Extended
Add own Variable	Check this, if you want to set your own marker (see row before).	After checking this button, TYPO3 ask you to reload. After a reload, you see a new field for setting an own marker.	Extended
Language	Choose a language.	Choose in which frontend language this record should be rendered.	Access
Hide	Disable the form	Enable or disable this record.	Access
Start	Startdate for this record.	Same function as known from default content elements or pages in TYPO3.	Access
Stop	Stopdate for this record.	Same function as known from default content elements or pages in TYPO3.	Access

Field types

Field	Description	HTML	Tab	Example
Textfield (input)	Simple text field (one line)	<input type="text" />	Standard
Textfield with more rows (Textarea)	Text field with more lines	<textarea></textarea>	Standard
Selectfield	Selector box (Dropdown)	<select><option>X</option></select>	Standard
Checkboxes	Checkbox (Possibility to select more than only one)	<input type="checkbox" />	Standard
Radiobuttons	Radio Buttons (Possibility to check only one)	<input type="radio" />	Standard
Submit	Send Form	<input type="submit" />	Standard
Captcha	Captcha Check against spam	<input type="text" />	Extended
Reset	Reset cleans all fieldvalues in the form	<input type="reset" />	Extended
Show some text	This field let you show some text in the form	This is a Test	Extended
Content Element	Show an existing Content Element	Text with <img src="…" />	Extended
Show HTML	Add some html text. Per default output of fields of type HTML is parsed through a htmlspecialchars() function to avoid Cross-Site-Scripting for security reasons. If you are aware of possible XSS-problems, caused by editors, you can enable it and your original HTML is shown in the Frontend.	This is a <b>Test</b>	Extended
Password Field	Two fields for a password check	<input type="password" /> <input type="password" />	Extended
File Upload	Upload one or more files	<input type="file" />	Extended
Hidden Field	Renders a hidden field, where you can store some additional information within the form.	<input type="hidden" />	Extended
Date	Datepicker field (Date, Datetime or Time)	<input type="date" />	Extended
Countryselection	Choose a Country	<select><option>France</option><option>Germany</option></select>	Extended
Location	Location field. Browser will ask the user if it’s ok to fill the field with his current location.	<input type="text" />	Extended
TypoScript	Fill values from TypoScript	This is a <b>Test</b>	Extended

Type documentation details

• Input
• Textarea
• Select
• Checkboxes
• Radio Buttons
• Submit Button
• Captcha
• Reset Button
• Text
• Content Element
• HTML
• Password
• File Upload
• Hidden
• Date
• Country Selection
• Location
• TypoScript
