Fields¶

Here’s an example of the method “getAvailableFields”

class MyEndpoint implements \Infonique\Newt\NewtApi\EndpointInterface
{
   public function getAvailableFields(): array
   {
      $istopnews = new Field();
      $istopnews->setName("istopnews");
      $istopnews->setLabel("Top News");
      $istopnews->setType(FieldType::CHECKBOX); // Field CHECKBOX

      $title = new Field();
      $title->setName("title");
      $title->setLabel("Title");
      $title->setType(FieldType::TEXT); // Field TEXT

      $image = new Field();
      $image->setName("image");
      $image->setLabel("Image");
      $image->setType(FieldType::IMAGE); // Field IMAGE

      return [
         $istopnews,
         $title,
         $image,
      ];
   }
}

As you can see, you define your fields and then return theme as an array.

Here are all current available field-types:

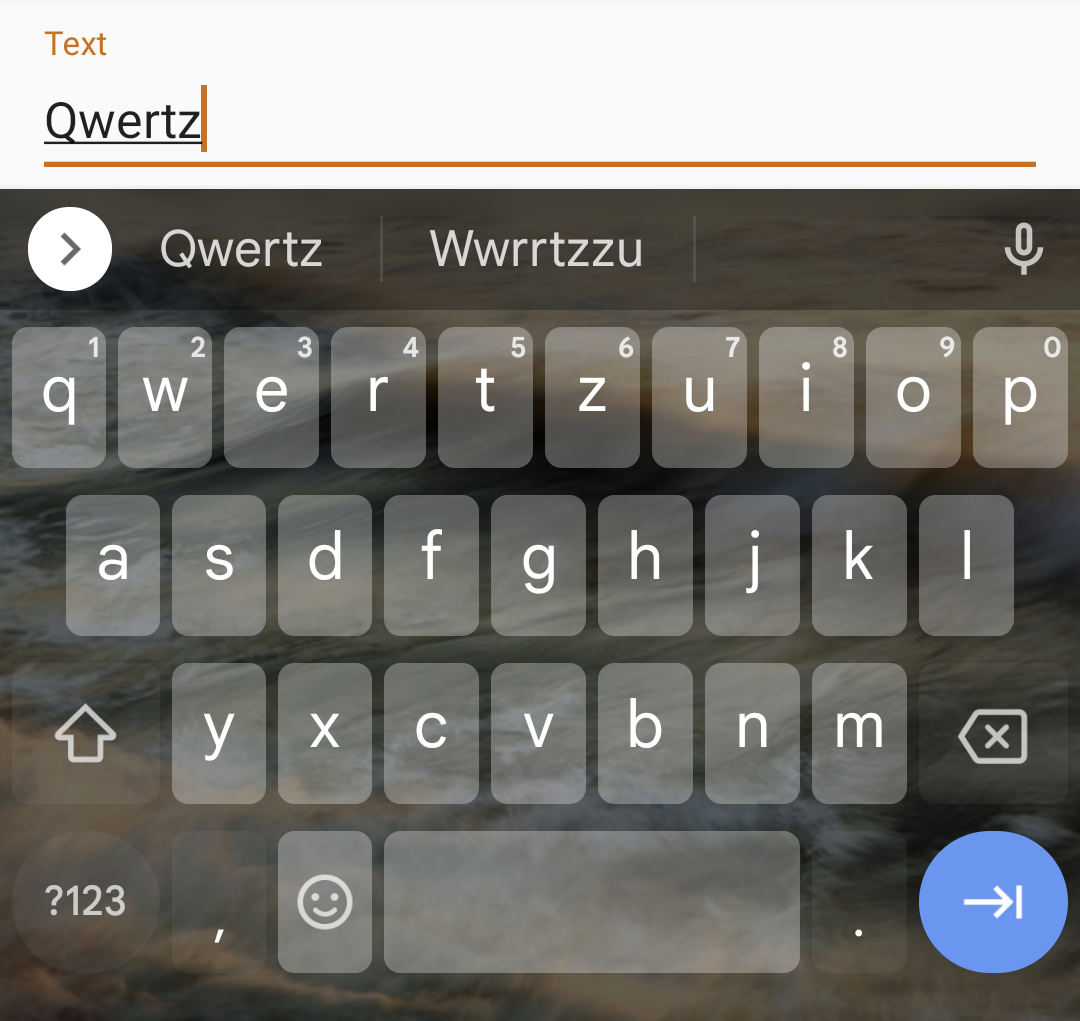

TEXT¶

Simple Text-Field, single line

$text = new Field();
$text->setName("text");
$text->setLabel("Text");
$text->setType(FieldType::TEXT);

Return value:	String

HIDDEN¶

Hidden field, this can be used as passthrough value

$hidden = new Field();
$hidden->setName("hidden");
$hidden->setValue("hidden-value");
$hidden->setType(FieldType::HIDDEN);

Return value:	String

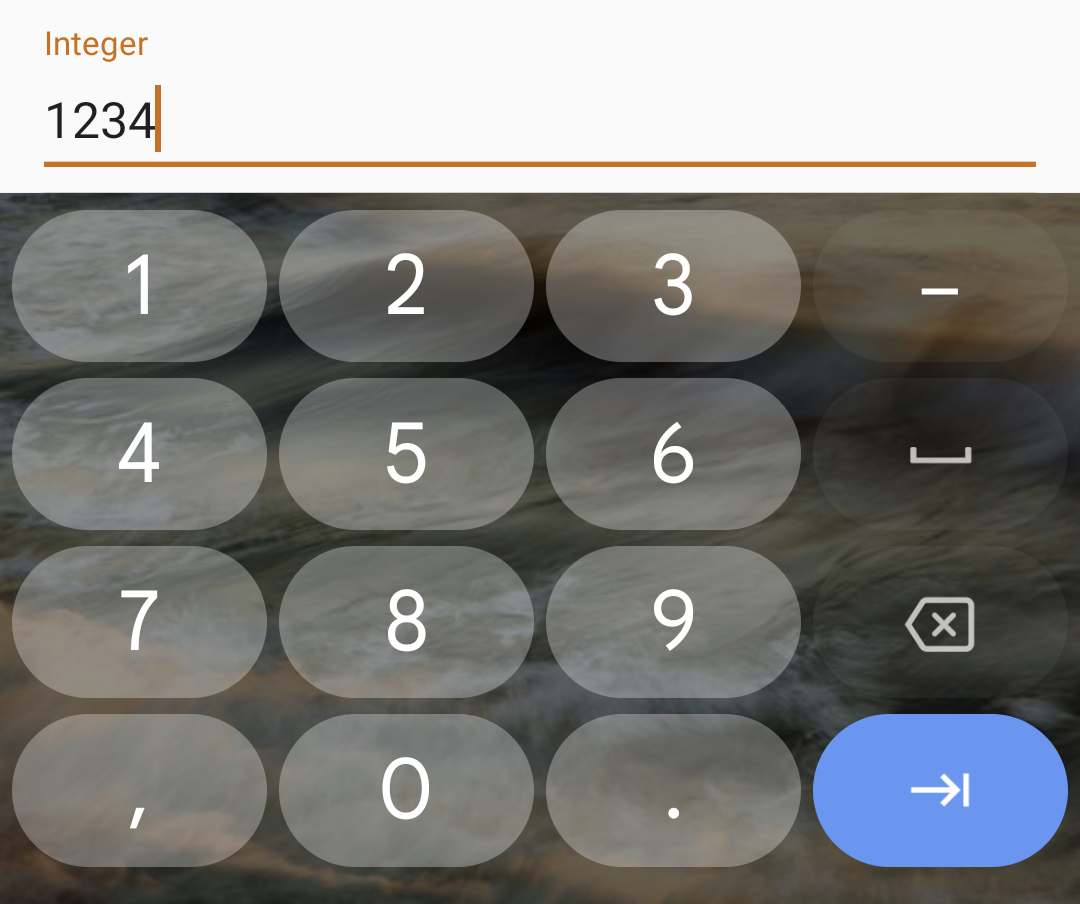

INTEGER¶

Field to enter a number (no text)

$integer = new Field();
$integer->setName("integer");
$integer->setLabel("Integer");
$integer->setType(FieldType::INTEGER);

Return value:	Integer as String

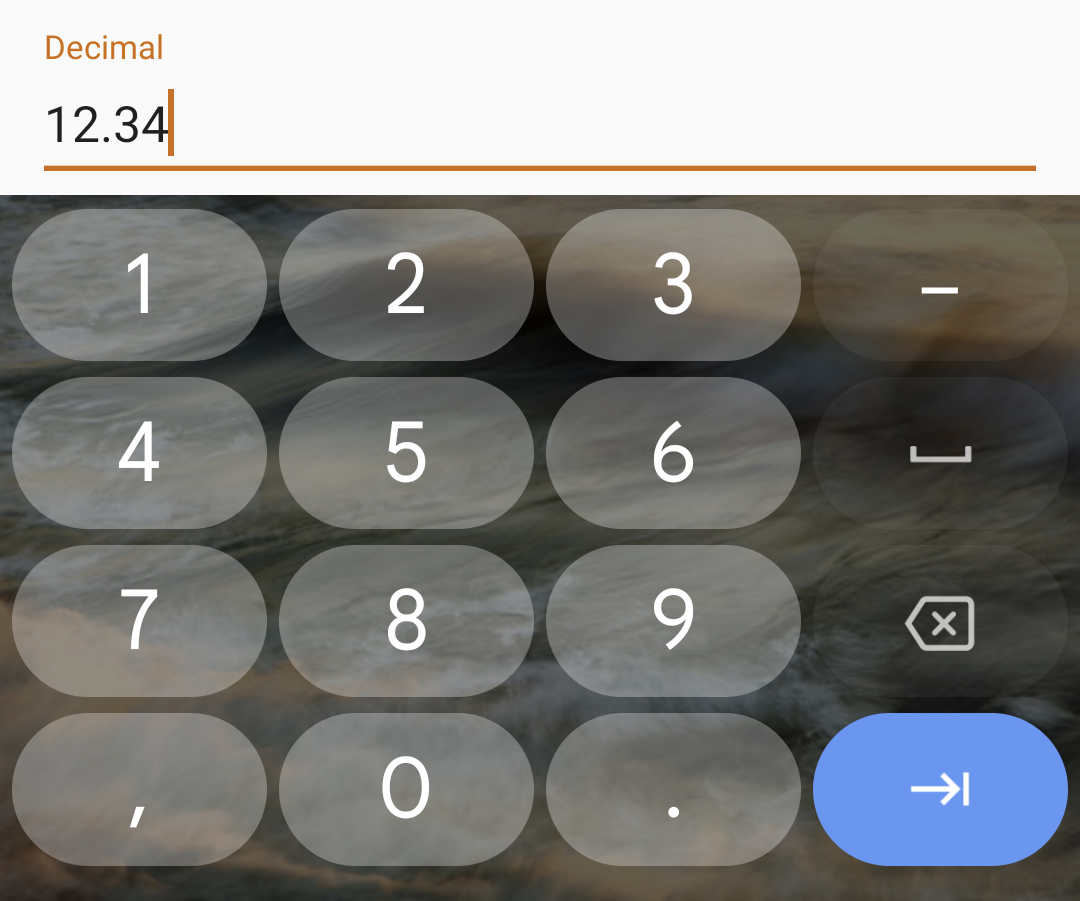

DECIMAL¶

Field to enter a decimal (no text)

$decimal = new Field();
$decimal->setName("decimal");
$decimal->setLabel("Decimal");
$decimal->setType(FieldType::DECIMAL);

Return value:	Float as String

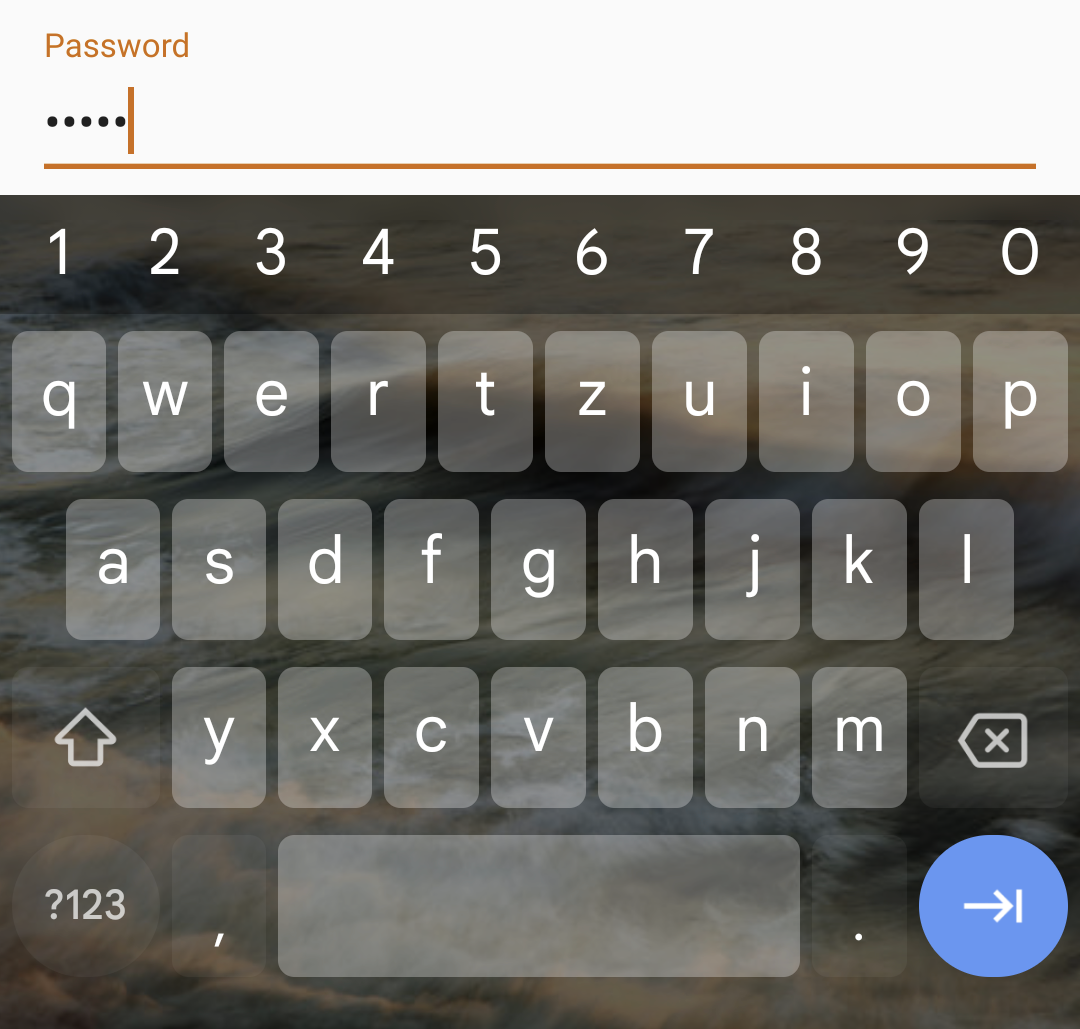

PASSWORD¶

Works like any other password-field

$password = new Field();
$password->setName("password");
$password->setLabel("Password");
$password->setType(FieldType::PASSWORD);

Return value:	String

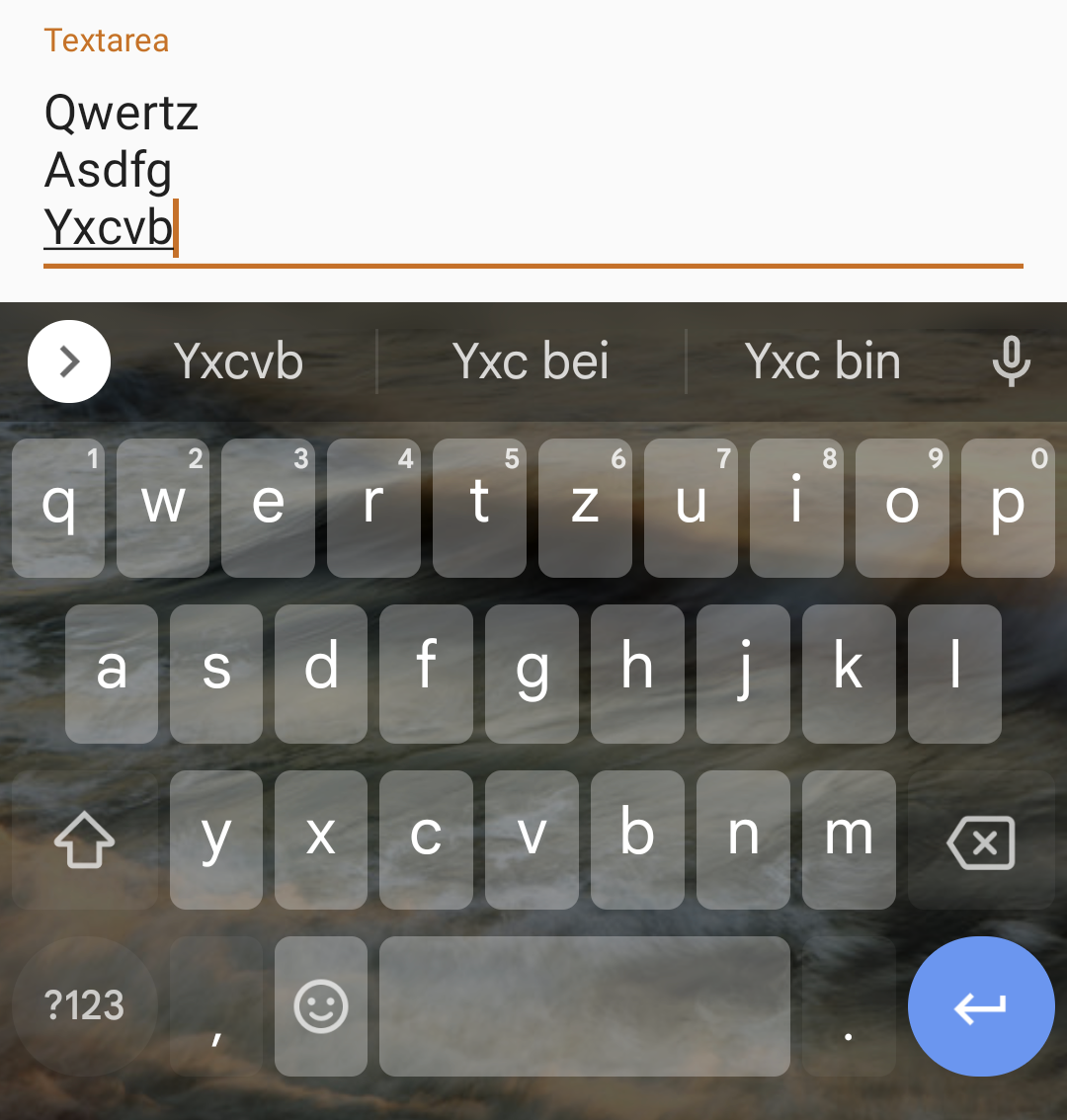

TEXTAREA¶

Multiline text-area

$textarea = new Field();
$textarea->setName("textarea");
$textarea->setLabel("Textarea");
$textarea->setType(FieldType::TEXTAREA);

Return value:	String

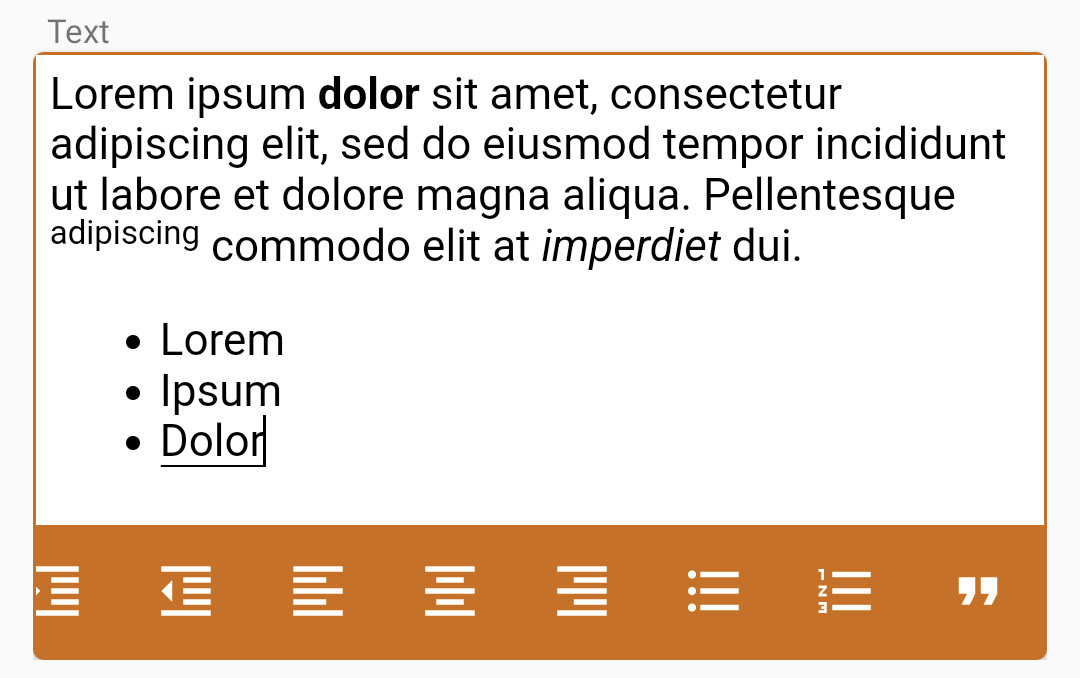

HTML¶

RichEditor for html-text

$textarea = new Field();
$textarea->setName("html");
$textarea->setLabel("HTML");
$textarea->setType(FieldType::HTML);

Return value:	String

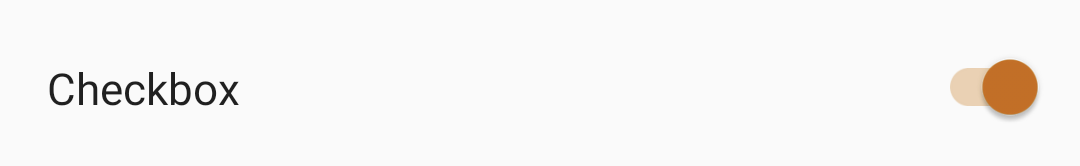

CHECKBOX¶

A checkbox to select on/off values

$checkbox = new Field();
$checkbox->setName("checkbox");
$checkbox->setLabel("Checkbox");
$checkbox->setType(FieldType::CHECKBOX);

Return value:	String (1=on / 0=off)

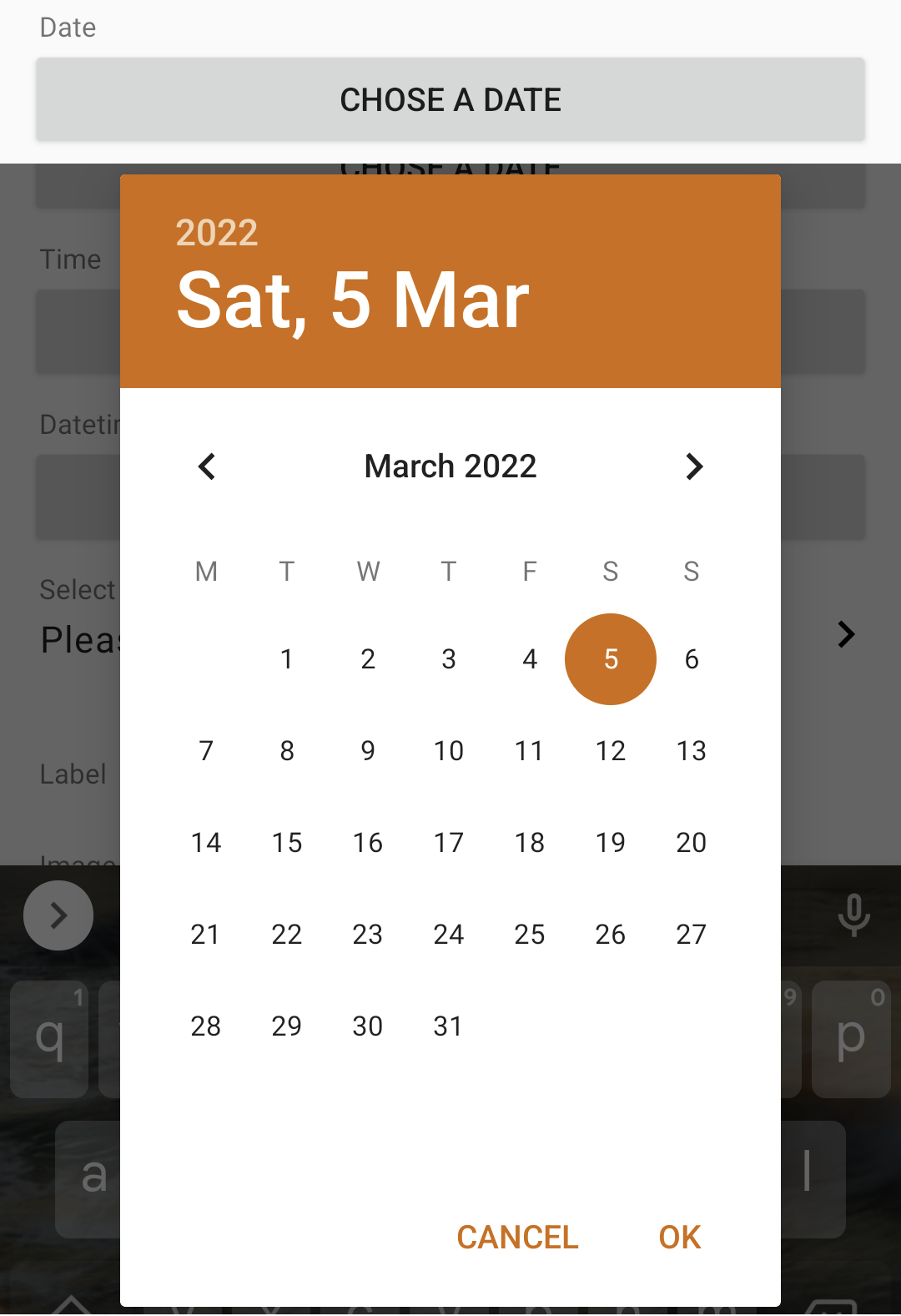

DATE¶

Date picker to chose from a mini-calendar

$date = new Field();
$date->setName("date");
$date->setLabel("Date");
$date->setType(FieldType::DATE);

Return value:	String (eg.: 2022-03-05)

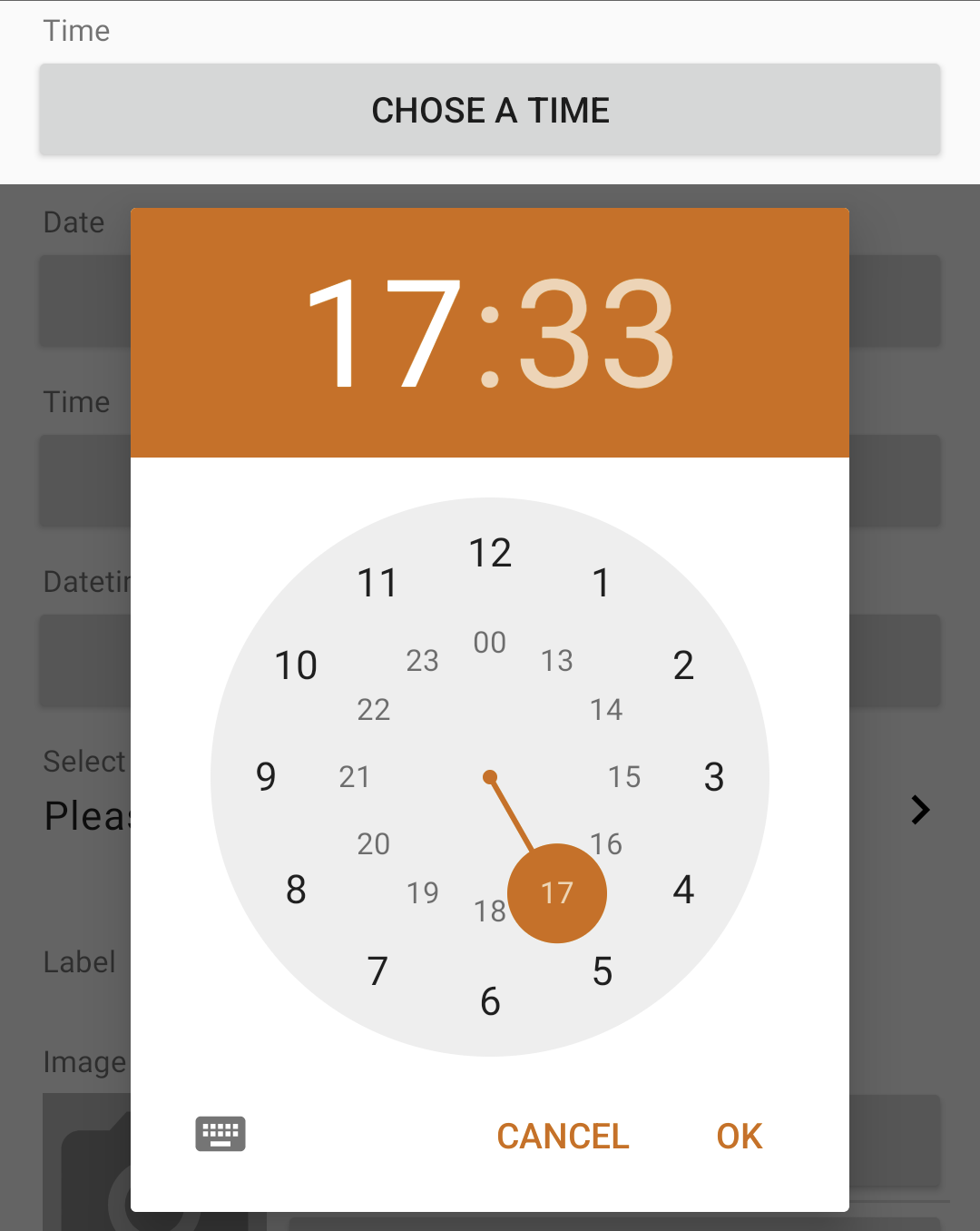

TIME¶

Time picker to chose a time

$time = new Field();
$time->setName("time");
$time->setLabel("Time");
$time->setType(FieldType::TIME);

Return value:	String (eg.: 21:12)

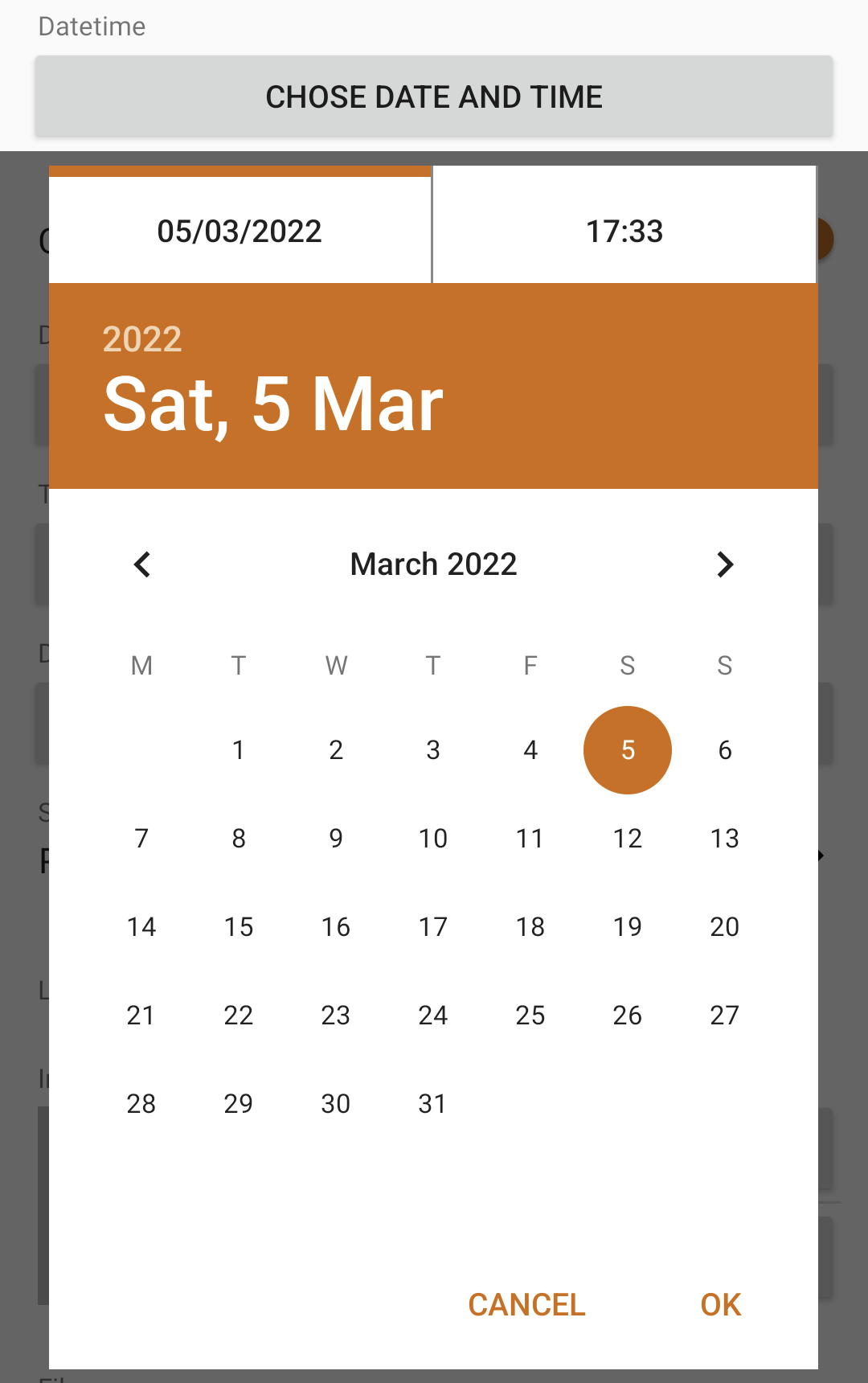

DATETIME¶

Combined Date-Time picker

$datetime = new Field();
$datetime->setName("datetime");
$datetime->setLabel("Datetime");
$datetime->setType(FieldType::DATETIME);

Return value:	String (eg.: 2022-03-05 21:12)

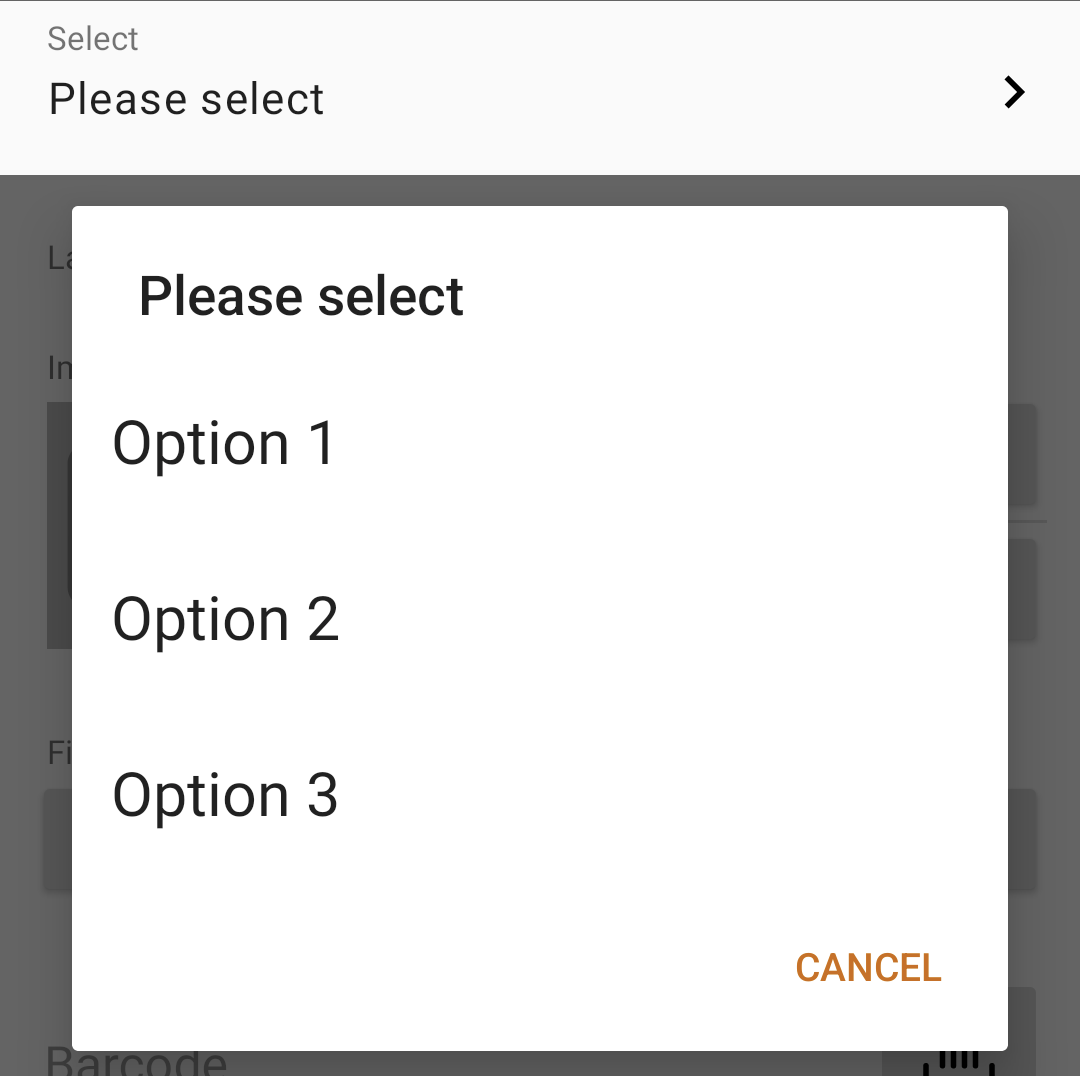

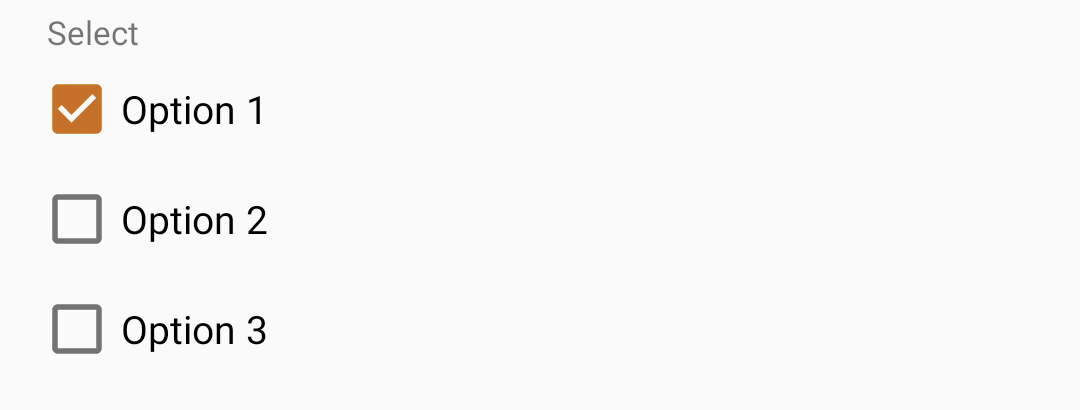

SELECT¶

Select a velue from a list

$select = new Field();
$select->setName("select");
$select->setLabel("Select");
$select->setType(FieldType::SELECT);
foreach (["Option 1", "Option 2", "Option 3"] as $key => $val) {
   $item = new FieldItem($key, $val);
   $select->addItem($item);
}

Return value:	String

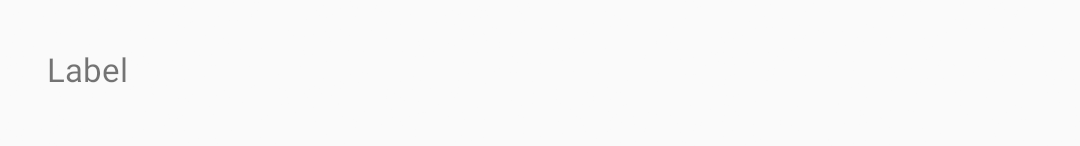

LABEL¶

Will only display a label, you can use this field for hints

$label = new Field();
$label->setName("label");
$label->setLabel("Label");
$label->setType(FieldType::LABEL);

Return value:	none

DIVIDER¶

Will show a divider

$divider = new Field();
$divider->setType(FieldType::DIVIDER);

Return value:	none

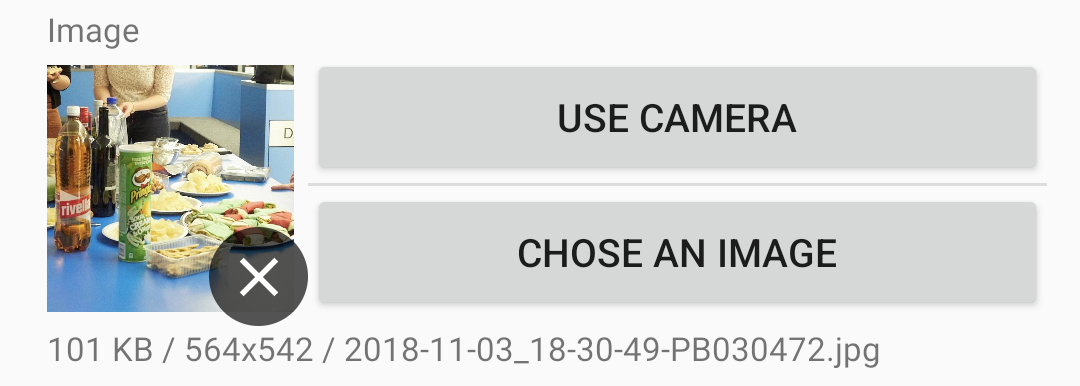

IMAGE¶

Te image-picker can be triggered from gallery or from the camera

$image = new Field();
$image->setName("image");
$image->setLabel("Image");
$image->setType(FieldType::IMAGE);

Return value:	Binary as Base64String

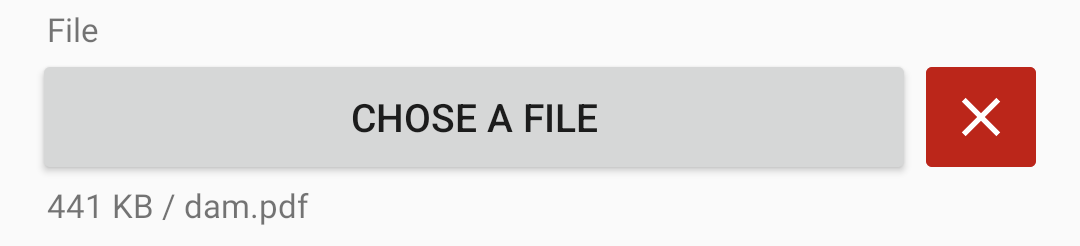

FILE¶

Add files as attachement

$file = new Field();
$file->setName("file");
$file->setLabel("File");
$file->setType(FieldType::FILE);

Return value:	Binary as Base64String

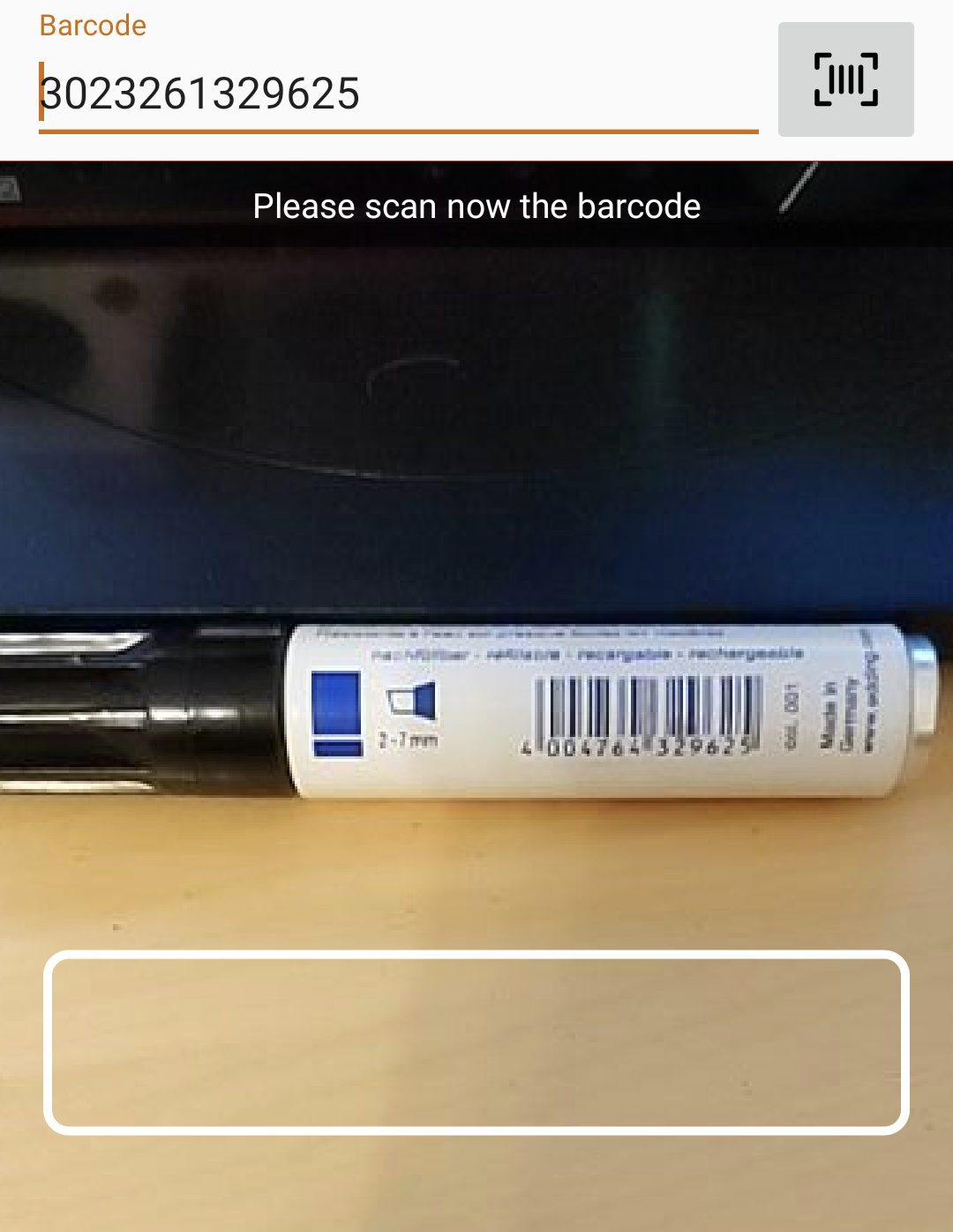

BARCODE¶

Scan for barcodes: Code128, Code39, EAN13 or EAN8

$barcode = new Field();
$barcode->setName("barcode");
$barcode->setLabel("Barcode");
$barcode->setType(FieldType::BARCODE);

Return value:	String

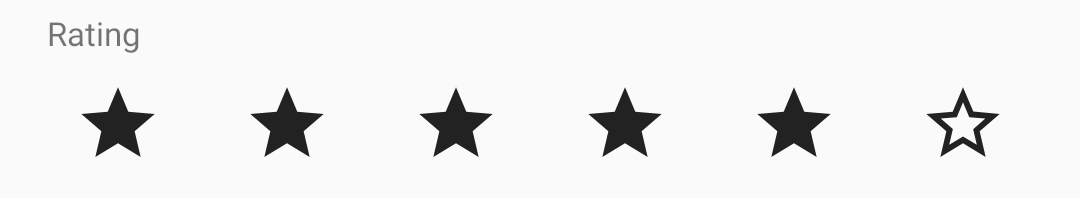

RATING¶

Shows a rating field with an count of stars

$rating = new Field();
$rating->setName("rating");
$rating->setLabel("Rating");
$rating->setType(FieldType::RATING);
$rating->setCount(6); // Count of stars

Return value:	Percentag of the rating as String (all stars = 100% / 1 Star = (100/n)%)

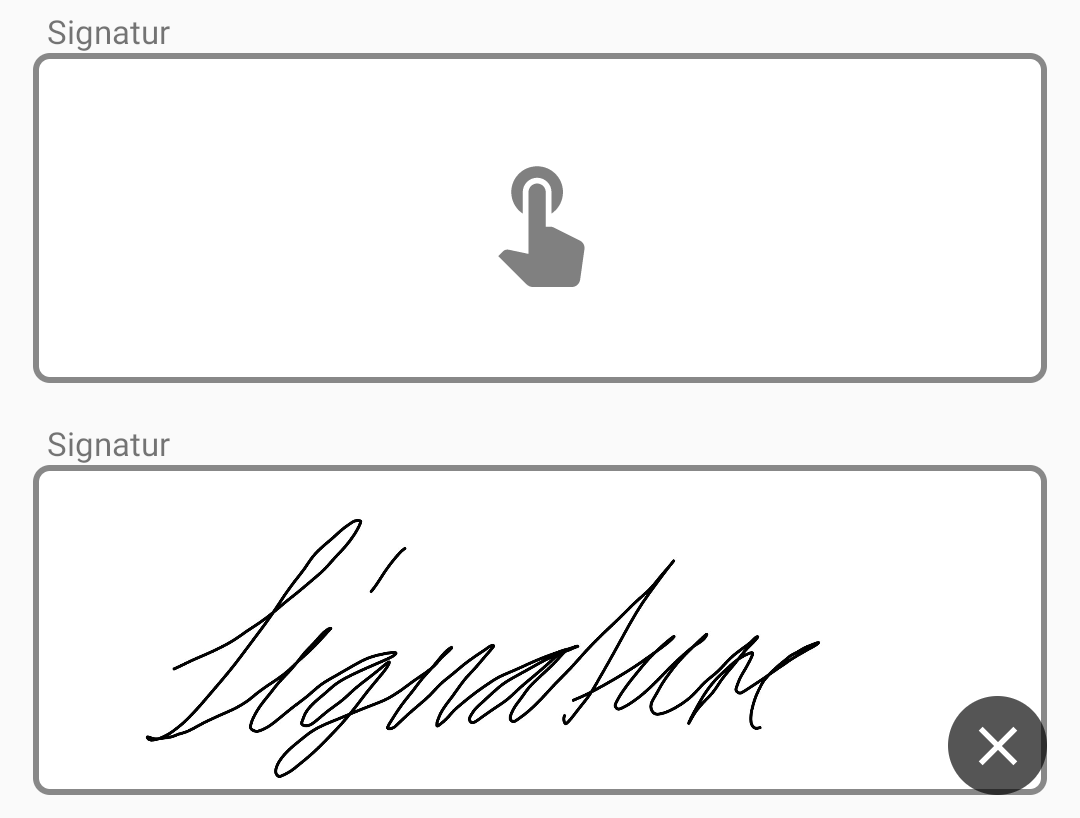

SIGNATURE¶

The signatur field opens a canvas, to paint on

$signatur = new Field();
$signatur->setName("signatur");
$signatur->setLabel("Signatur");
$signatur->setType(FieldType::SIGNATURE);

Return value:	Binary as Base64String (PNG-Image)

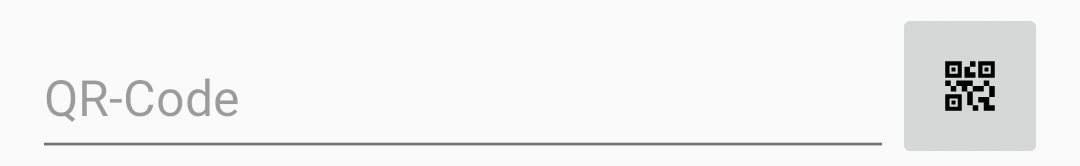

QRCODE¶

Scan QR-Codes and use the content

$qrcode = new Field();
$qrcode->setName("qrcode");
$qrcode->setLabel("QR-Code");
$qrcode->setType(FieldType::QRCODE);

Return value:	String

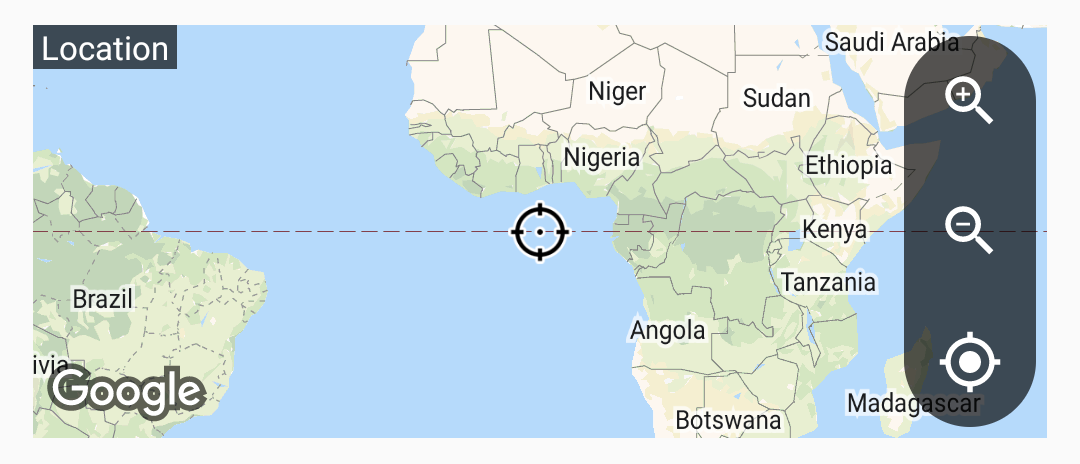

LOCATION¶

Mini-Map to chose the current-location of the user

$location = new Field();
$location->setName("location");
$location->setLabel("Location");
$location->setType(FieldType::LOCATION);

Return value:	String (lat,lng,accuracy)
