Configuration Module

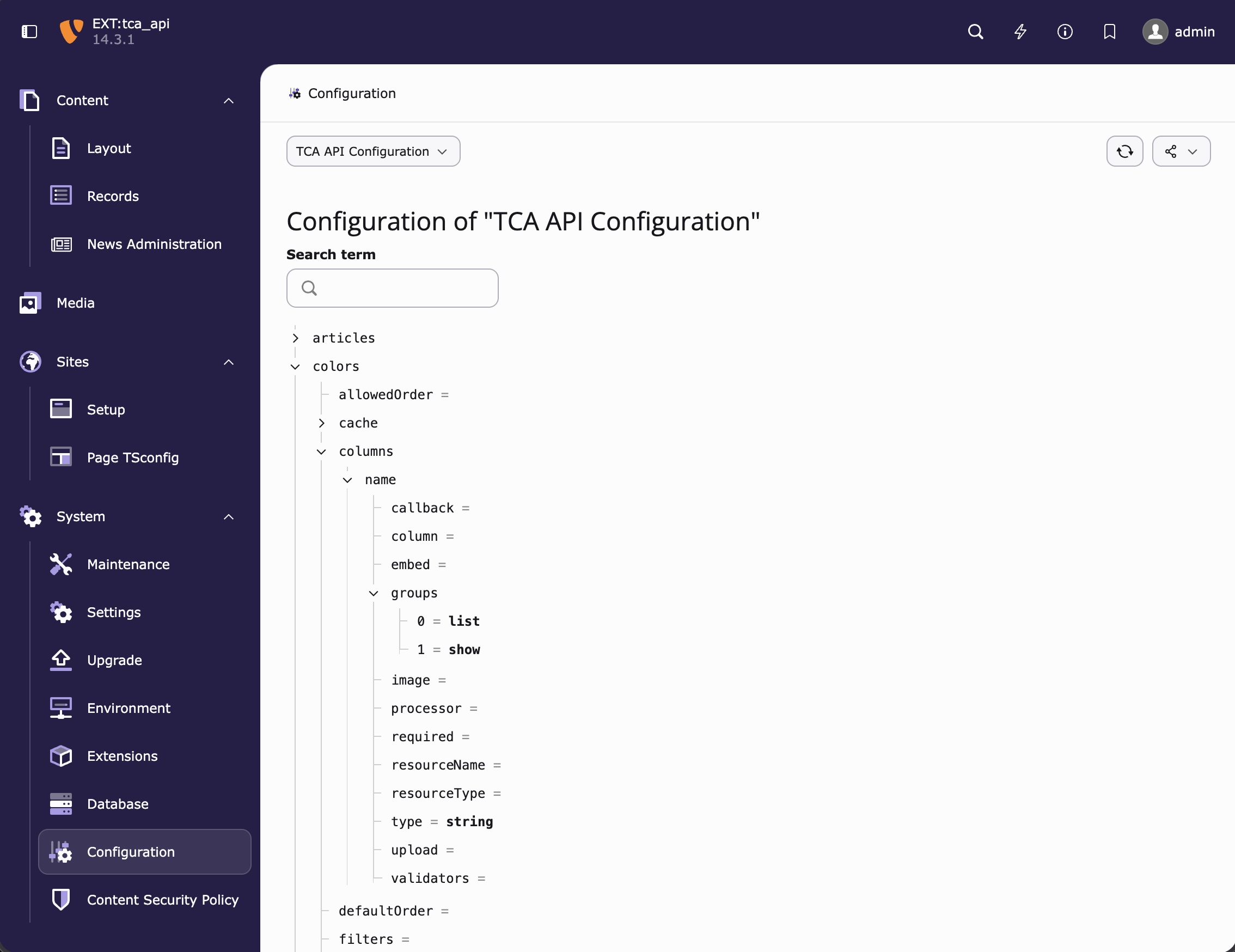

When typo3/cms-lowlevel is installed, TCA_API registers a provider in the
TYPO3 backend Configuration module (System → Configuration).
The provider displays all loaded resource definitions as an interactive tree,
which is useful for debugging your setup and verifying that definitions are
loaded and parsed as expected.
What is shown
Each resource definition is listed by its resourceName and expanded into all
resolved properties. All values reflect the parsed state after ApiDefinitionLoader
has normalised the raw PHP arrays — so what you see is exactly what the extension acts
on at runtime.
Note
The tree is read-only. It reflects the in-memory state after the DI container has been warmed up. Clear the TYPO3 caches after changing a resource definition file to see the updated values.
