IDP-Configurations

Identity Provider Metadata Configurations (Using XML Metadata)

  • Either download the IDP Metadata file or copy the IDP Metadata URL from your Identity Provider

  • Navigate to the IDP Settings tab of the plugin and click on Upload IDP Metadata button

  • Add the name of your Identity Provider.

  • add the downloaded IDP Metadata file or paste the IDP Metadata URL copied from your Identity Provider and save it.

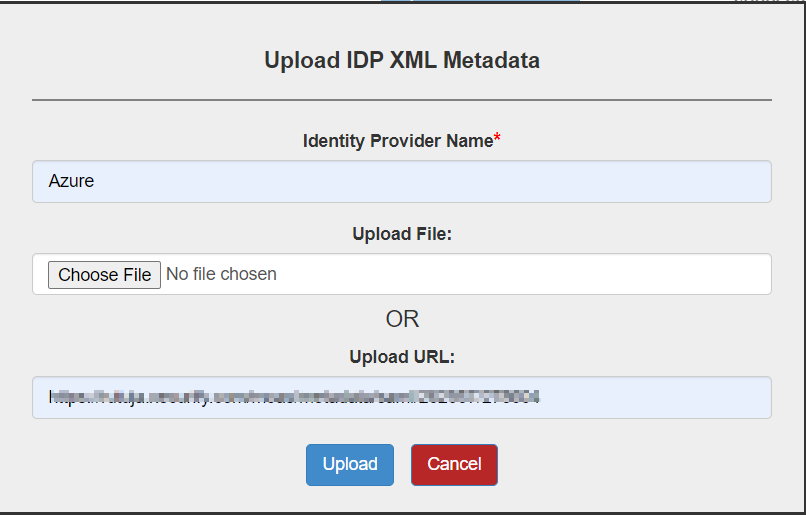

IDP XML Metadata Upload

  • Once you save the settings all the Metadata details will be fetched automatically.

OR

Identity Provider Metadata Configurations (Manually)

  • Identity Provider Name: {Add your Identity Provider Name}

  • IDP Entity ID: {Add your Identity Provider Entity ID}

  • SAML Login URL: {Add your Identity Provider Single Sign On Service URL}

  • SAML x509 Certificate: {Add your Identity Provider x509 certificate}

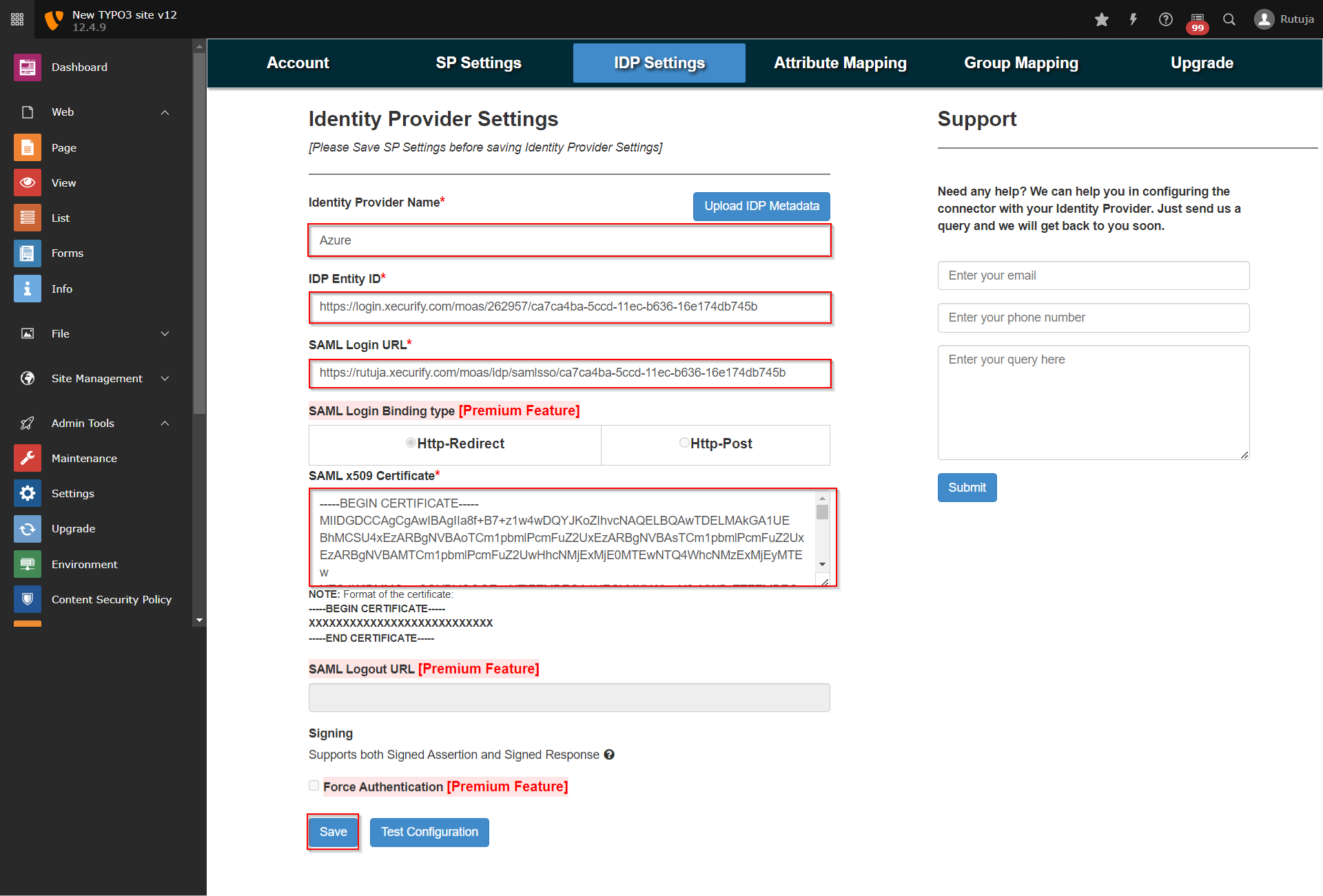

Identity Provider Configurations

  • Once you configure both Identity Provider and Service Provider Metadata, click the Test Configuration button to check if the configurations are made correctly.

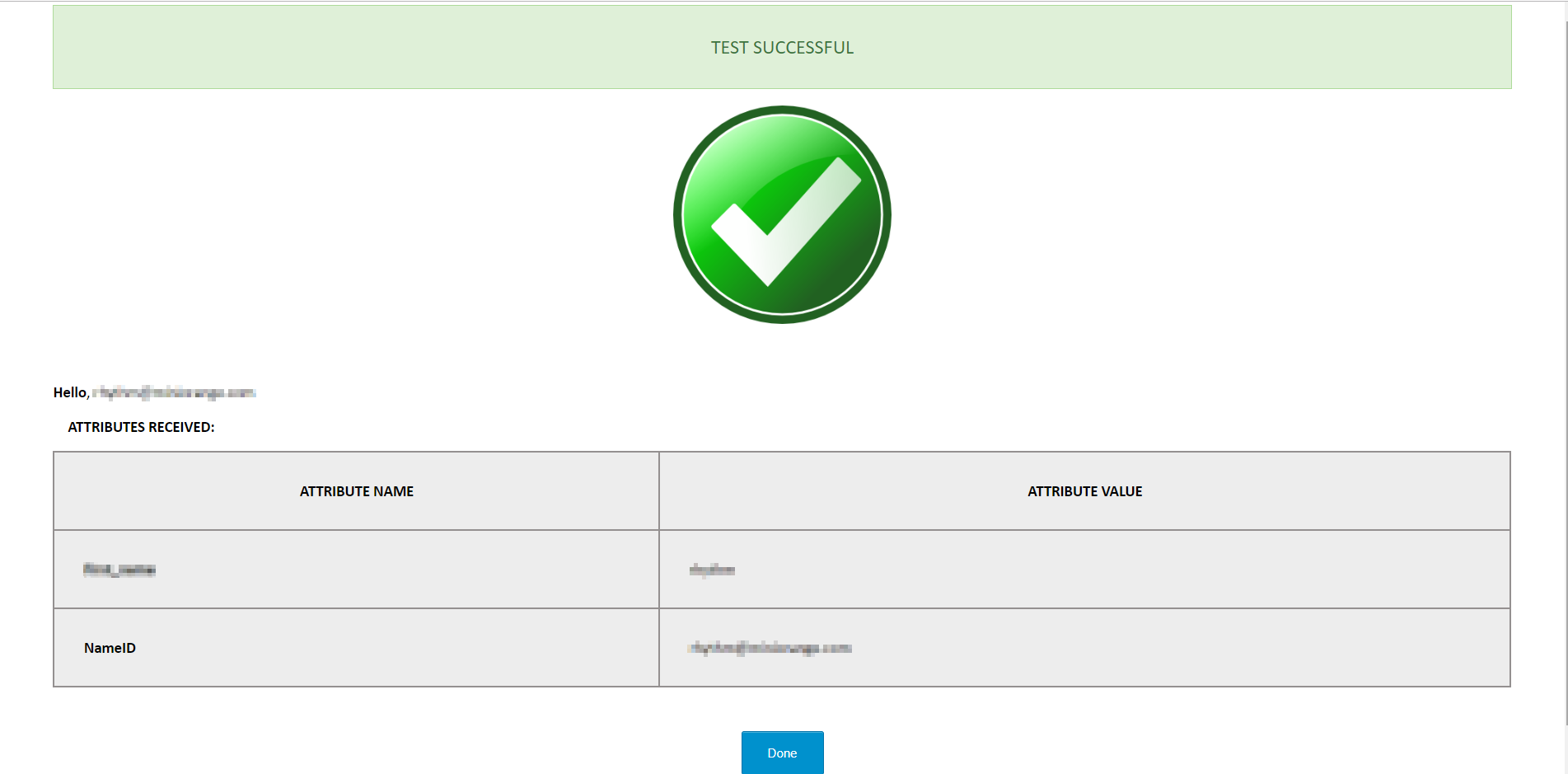

Test Configuration Window

Default Group Mapping

  • Navigate to the Group Mapping tab of the plugin, select the default group to be assigned to the new users in Typo3 and save the settings.

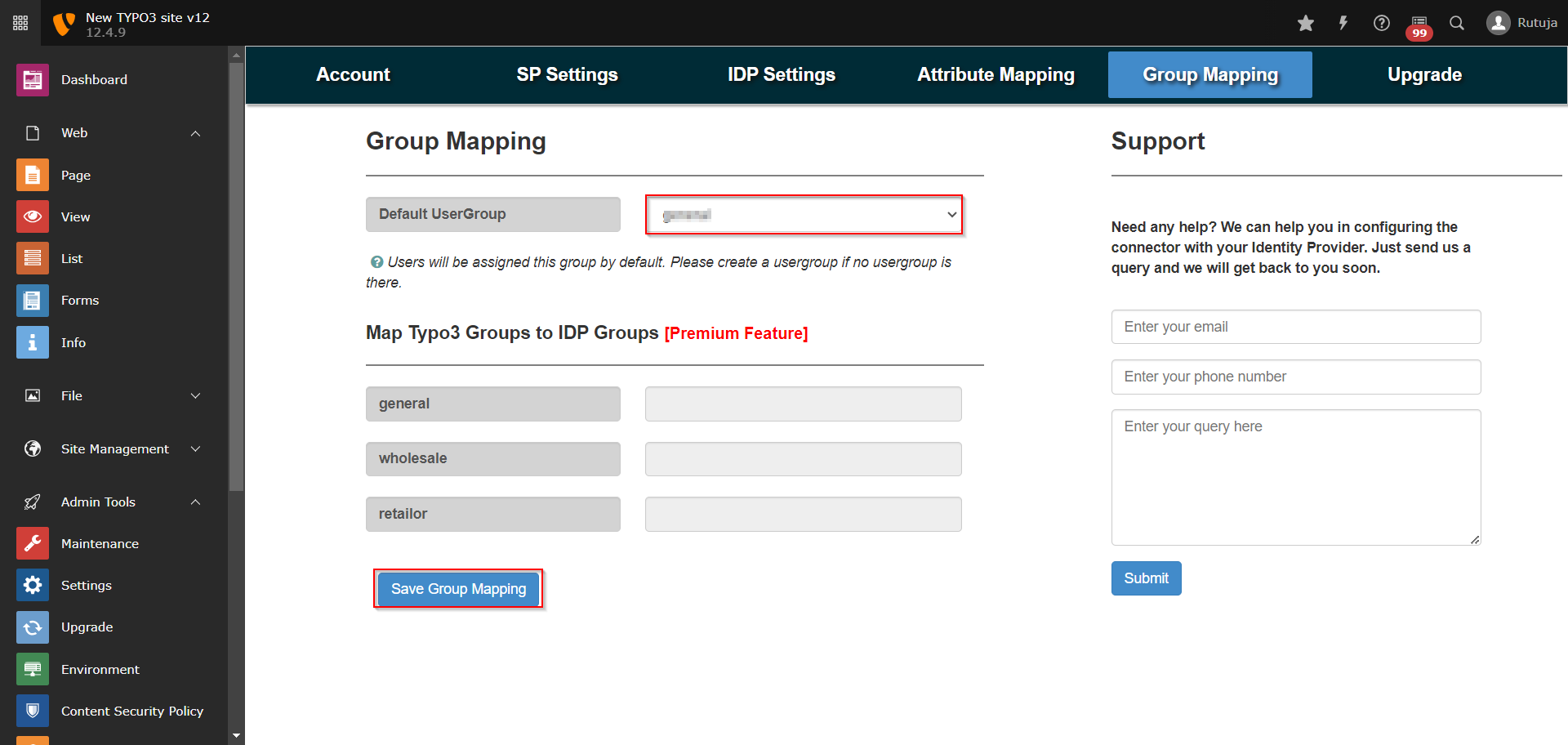

Group Mapping Settings

  • Once you have done all the above steps, you are ready to test the SSO. You can use your Fesaml Page URL in order to initiate the SSO.

  • If you are looking for anything which you cannot find, please drop us an email on info@xecurify.com
