Usage

Backend module

Access the vault through the TYPO3 backend:

Go to Admin Tools > Vault.
The overview shows statistics and quick-start examples.
Navigate to Secrets to manage your secrets.

Vault module overview showing statistics and quick start guide — The vault overview displays key metrics and provides quick-start code examples

Creating secrets

Click Create Secret (+ button).
Fill in the form:

Identifier

Unique identifier for the secret (e.g., stripe_api_key).

Value

The secret value to encrypt.

Description

Optional description for documentation.

Context

Optional context for organization (e.g., payment).

Allowed groups

Backend user groups that can access this secret.

Expiration

Optional expiration date after which the secret becomes inaccessible.
Click Save.

Viewing and editing secrets

Secrets are displayed with their metadata but not their values. Click Reveal to temporarily show a secret value.

Note

Revealing a secret creates an audit log entry.

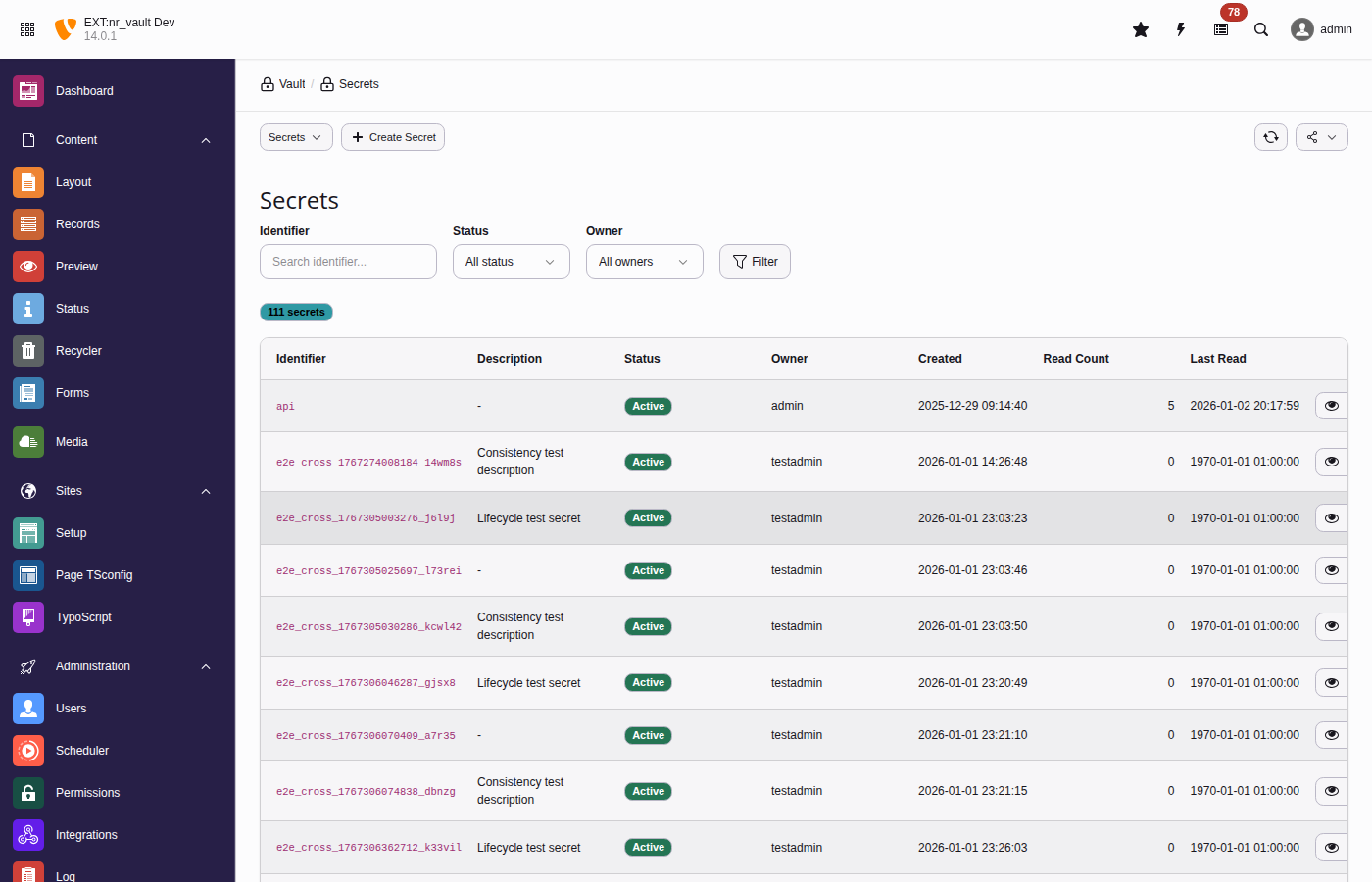

Secrets list view showing secret identifiers, contexts, and metadata — The secrets list provides filtering, bulk actions, and quick access to secret operations

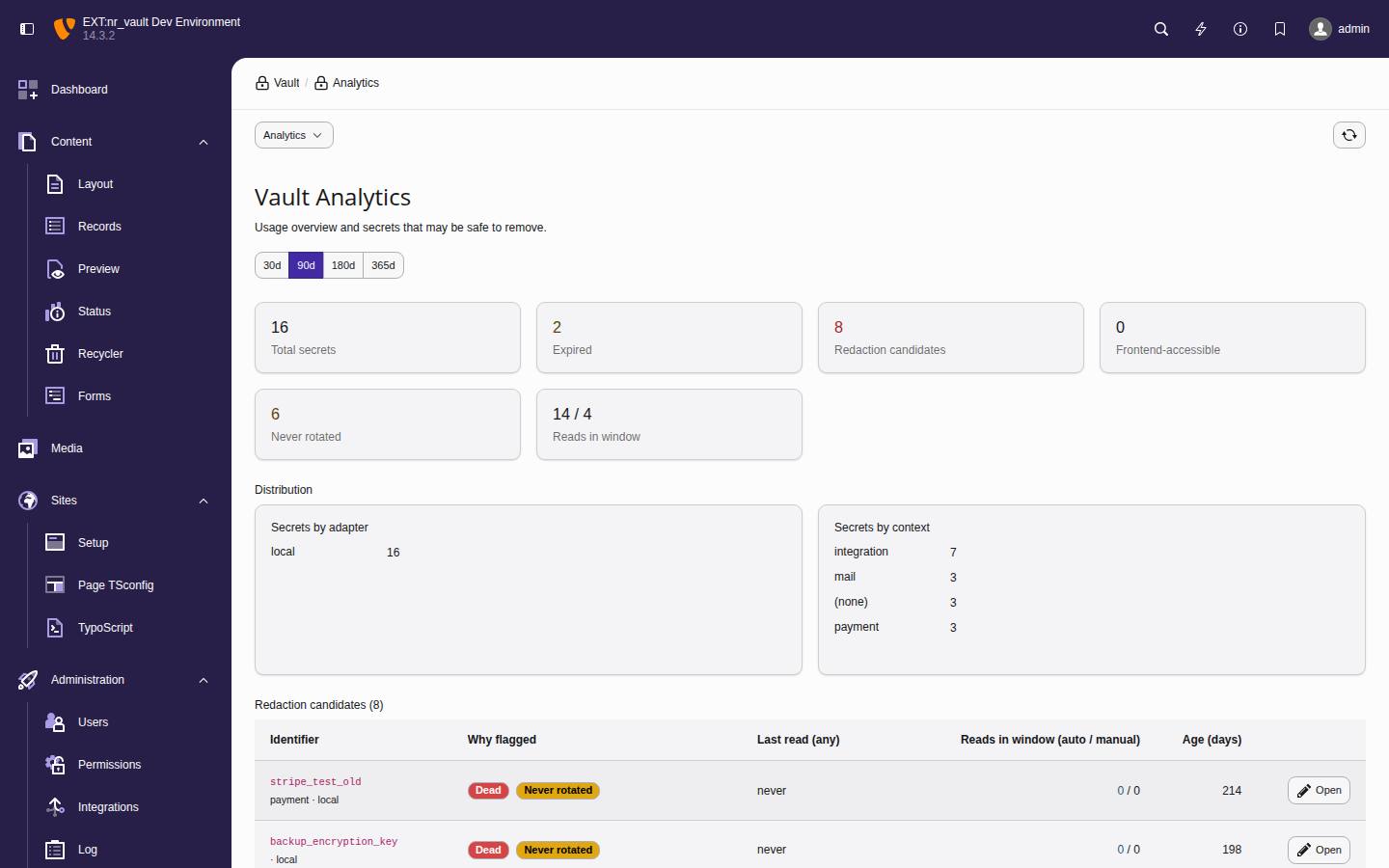

Analytics

The Analytics submodule gives administrators an at-a-glance view of secret usage and highlights secrets that may be safe to remove. Choose the evaluation window with the 30d / 90d / 180d / 365d selector at the top.

Key metrics

Total secrets: Active (non-deleted) secrets in the vault.
Expired: Secrets whose expiration date has passed but that still exist.
Redaction candidates: Secrets flagged by at least one staleness rule (see below).
Frontend-accessible: Secrets marked frontend_accessible - review these with extra care.
Never rotated: Secrets that have never been rotated within the configured threshold.
Reads in window (automated / manual): Read activity for the selected window, split into automated reads (CLI, scheduler, API) and manual reveals performed in the backend.

Redaction candidates

The table lists every flagged secret together with the rule(s) that flagged it, its last read of any kind, the automated / manual read split for the window, and its age in days. Open deep-links straight to the secret record so you can review or delete it.

Secrets are flagged by these rules:

Dead: Never read and older than the threshold, or not read for a long time - the primary deletion candidate.
Expired: Past its expiration date but still present in the vault.
Never rotated: Older than the rotation threshold without ever having been rotated.
Automation-stale: Revealed manually but never read by automation. This is a review signal rather than a deletion signal: the secret may legitimately be used only through manual workflows. It is therefore never combined with Dead.

Note

The automated-versus-manual split is derived from the audit log (actor_type), so it reflects only reads recorded while audit logging was active. The day thresholds are configurable - see Example: SaaS API keys in extension settings.

Tip

To explore the dashboard with realistic, dated history on a development instance, seed demo secrets and audit events with the vault:seed-demo command (development context only).

Site configuration

Reference secrets in your site configuration files using the %vault(identifier)% syntax:

config/sites/mysite/config.yaml

settings:
  payment:
    stripePublicKey: 'pk_live_...'
    stripeSecretKey: '%vault(stripe_secret_key)%'
  email:
    mailchimpApiKey: '%vault(mailchimp_api_key)%'
    sendgridToken: '%vault(sendgrid_token)%'

Secrets are resolved at runtime when the site configuration is loaded. This keeps sensitive values out of your version control while still allowing you to configure them through the familiar site settings.

Important

Site configuration secrets are resolved on every request. Ensure your vault storage is performant (the default local adapter caches lookups).

TypoScript integration

Use vault references in TypoScript for frontend-accessible secrets:

TypoScript vault reference

lib.googleMapsKey = TEXT
lib.googleMapsKey.value = %vault(google_maps_api_key)%

page.headerData.10 = TEXT
page.headerData.10.value = <script>var API_KEY = '%vault(public_api_key)%';</script>

Warning

Security considerations:

Only secrets marked as frontend_accessible can be resolved.
Resolved values may be cached - use cache.disable = 1 for secrets that should not be cached.
Consider using USER_INT for content containing secrets.

Example with caching disabled:

Disable caching for secrets

lib.apiKey = TEXT
lib.apiKey {
  value = %vault(my_api_key)%
  stdWrap.cache.disable = 1
}

CLI commands

vault:init

Initialize the vault and generate a master key:

Initialize vault

vendor/bin/typo3 vault:init

# Output as environment variable format
vendor/bin/typo3 vault:init --env

# Specify custom output location
vendor/bin/typo3 vault:init --output=/secure/path/vault.key

vault:store

Create or update a secret:

Store a secret

# Interactive (prompts for value)
vendor/bin/typo3 vault:store stripe_api_key

# With options (arbitrary metadata via repeatable --metadata key=value)
vendor/bin/typo3 vault:store payment_key \
  --value="sk_live_..." \
  --metadata="description=Stripe production key" \
  --metadata="context=payment" \
  --groups="1,2"

vault:retrieve

Retrieve a secret value:

Retrieve a secret

vendor/bin/typo3 vault:retrieve stripe_api_key

# Quiet mode for scripting
API_KEY=$(vendor/bin/typo3 vault:retrieve -q stripe_api_key)

vault:list

List all accessible secrets:

List secrets

vendor/bin/typo3 vault:list

# Filter by pattern
vendor/bin/typo3 vault:list --pattern="payment_*"

# JSON output for automation
vendor/bin/typo3 vault:list --format=json

vault:rotate

Rotate a secret with a new value:

Rotate a secret

vendor/bin/typo3 vault:rotate stripe_api_key \
  --reason="Scheduled quarterly rotation"

vault:delete

Delete a secret:

Delete a secret

vendor/bin/typo3 vault:delete old_api_key \
  --reason="Service deprecated" \
  --force

vault:audit

View the audit log:

View audit log

# View entries since a given date
vendor/bin/typo3 vault:audit --since=2026-05-01

# Filter by secret
vendor/bin/typo3 vault:audit --identifier=stripe_api_key

# Export to JSON
vendor/bin/typo3 vault:audit --format=json > audit.json

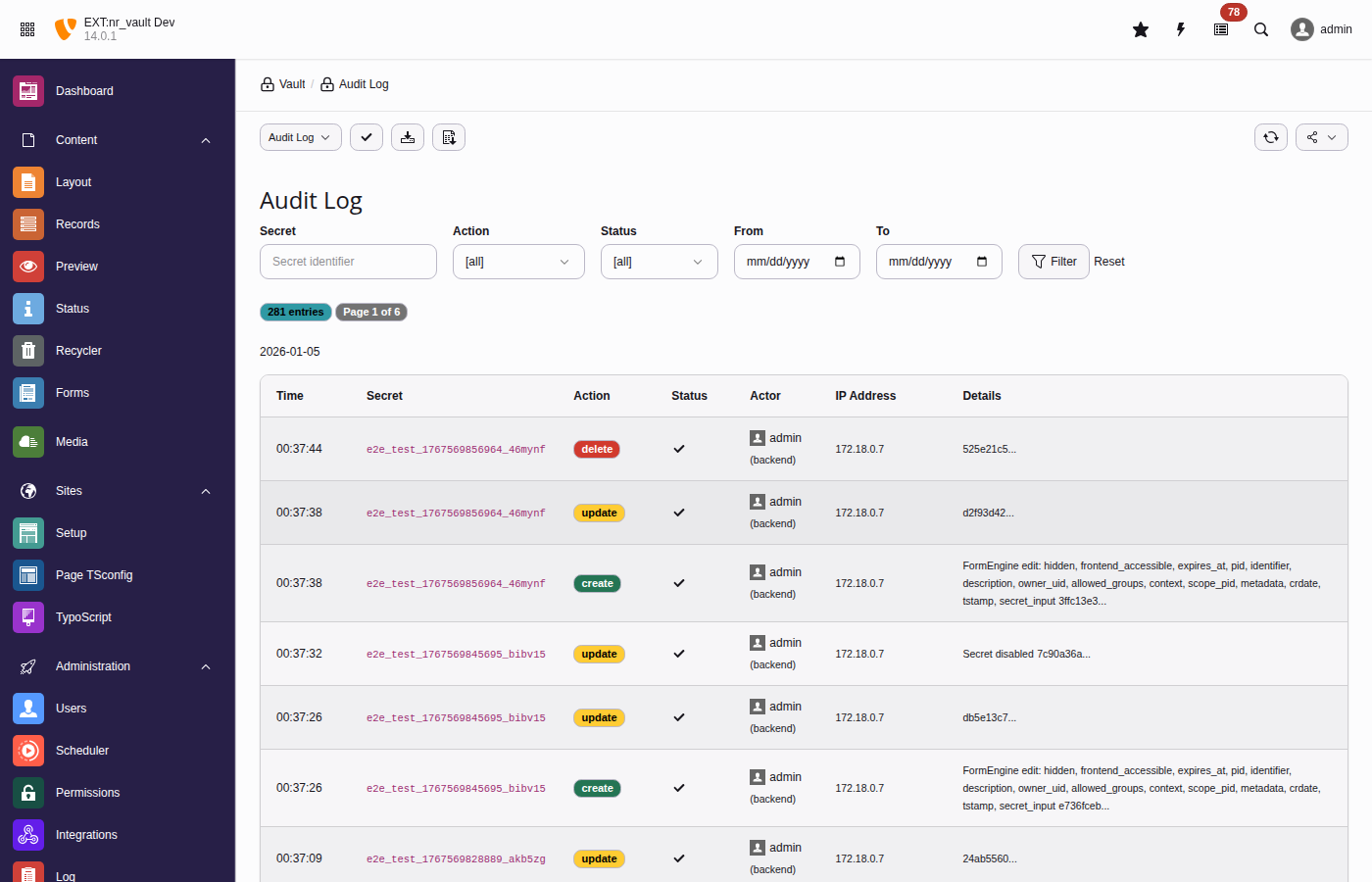

Audit log showing secret access history with timestamps, actors, and IP addresses — The audit log tracks all secret operations with tamper-evident hash chains

vault:rotate-master-key

Rotate the master encryption key (re-encrypts all DEKs):

Rotate master key

# Using old key from file, new key from current config
vendor/bin/typo3 vault:rotate-master-key \
  --old-key=/path/to/old.key \
  --confirm

# Dry run to simulate
vendor/bin/typo3 vault:rotate-master-key \
  --old-key=/path/to/old.key \
  --dry-run

vault:scan

Scan for potential plaintext secrets in database:

Scan for plaintext secrets

vendor/bin/typo3 vault:scan

# Only critical issues
vendor/bin/typo3 vault:scan --severity=critical

# JSON for CI/CD
vendor/bin/typo3 vault:scan --format=json

vault:migrate-field

Migrate existing plaintext field values to vault:

Migrate field to vault

# Preview
vendor/bin/typo3 vault:migrate-field tx_myext_settings api_key --dry-run

# Execute
vendor/bin/typo3 vault:migrate-field tx_myext_settings api_key

vault:cleanup-orphans

Remove orphaned secrets from deleted records:

Clean up orphaned secrets

vendor/bin/typo3 vault:cleanup-orphans --dry-run
vendor/bin/typo3 vault:cleanup-orphans --retention-days=30

PHP API

VaultService

Inject the VaultService to access secrets programmatically:

Inject and use VaultService

use Netresearch\NrVault\Service\VaultServiceInterface;

final class PaymentService
{
    public function __construct(
        private readonly VaultServiceInterface $vaultService,
    ) {}

    public function getApiKey(): ?string
    {
        return $this->vaultService->retrieve('stripe_api_key');
    }
}

Storing secrets

Store secret with options

$this->vaultService->store(
    identifier: 'payment_api_key',
    secret: 'sk_live_...',
    options: [
        'description' => 'Stripe production API key',
        'context' => 'payment',
        'groups' => [1, 2], // Backend user group UIDs
        'expiresAt' => time() + (86400 * 90), // 90 days
    ],
);

Checking existence

Check if secret exists

if ($this->vaultService->exists('stripe_api_key')) {
    $value = $this->vaultService->retrieve('stripe_api_key');
}

Listing secrets

List secrets programmatically

// Get all accessible secrets
$secrets = $this->vaultService->list();

// Filter by pattern
$paymentSecrets = $this->vaultService->list(pattern: 'payment_*');

Vault HTTP client

Make authenticated API calls without exposing secrets to your code. The HTTP client is PSR-18 compatible. Configure authentication with withAuthentication(), then use standard sendRequest().

Inject VaultHttpClientInterface directly:

HTTP client with vault authentication

use GuzzleHttp\Psr7\Request;
use Netresearch\NrVault\Http\SecretPlacement;
use Netresearch\NrVault\Http\VaultHttpClientInterface;

final class ExternalApiService
{
    public function __construct(
        private readonly VaultHttpClientInterface $httpClient,
    ) {}

    public function fetchData(): array
    {
        // Configure authentication, then use PSR-18
        $client = $this->httpClient->withAuthentication(
            'api_token',
            SecretPlacement::Bearer,
        );

        $request = new Request('GET', 'https://api.example.com/data');
        $response = $client->sendRequest($request);

        return json_decode($response->getBody()->getContents(), true);
    }
}

Or access via VaultService:

HTTP client via VaultService

use GuzzleHttp\Psr7\Request;
use Netresearch\NrVault\Http\SecretPlacement;

$client = $this->vaultService->http()
    ->withAuthentication('stripe_api_key', SecretPlacement::Bearer);

$request = new Request(
    'POST',
    'https://api.stripe.com/v1/charges',
    ['Content-Type' => 'application/json'],
    json_encode($payload),
);

$response = $client->sendRequest($request);

Authentication options

Authentication placement examples

use GuzzleHttp\Psr7\Request;
use Netresearch\NrVault\Http\SecretPlacement;

// Bearer token
$client = $vault->http()
    ->withAuthentication('api_token', SecretPlacement::Bearer);
$response = $client->sendRequest(new Request('GET', $url));

// API key header (X-API-Key)
$client = $vault->http()
    ->withAuthentication('api_key', SecretPlacement::ApiKey);
$response = $client->sendRequest(new Request('GET', $url));

// Custom header
$client = $vault->http()
    ->withAuthentication('api_key', SecretPlacement::Header, [
        'headerName' => 'X-Custom-Auth',
    ]);
$response = $client->sendRequest(new Request('GET', $url));

// Basic authentication with separate secrets
$client = $vault->http()
    ->withAuthentication('service_password', SecretPlacement::BasicAuth, [
        'usernameSecret' => 'service_user',
    ]);
$response = $client->sendRequest(new Request('GET', $url));

// Query parameter
$client = $vault->http()
    ->withAuthentication('api_key', SecretPlacement::QueryParam, [
        'queryParam' => 'key',
    ]);
$response = $client->sendRequest(new Request('GET', $url));

For a complete real-world example combining TCA vault fields with the HTTP client, see Example: API endpoint management.
