Frontend Configuration

The Exchange 365 Mailer extension supports frontend email sending through popular TYPO3 extensions like Powermail, Form Framework, and other form extensions. This requires additional TypoScript configuration to work properly.

Attention

Frontend configuration is required for any page that uses forms or email functionality. Without proper TypoScript setup, frontend forms will not be able to send emails through Exchange 365.

Frontend Configuration Overview

Frontend email sending requires the same 5 core parameters as the backend configuration, but they must be configured via TypoScript instead of environment variables or LocalConfiguration.php.

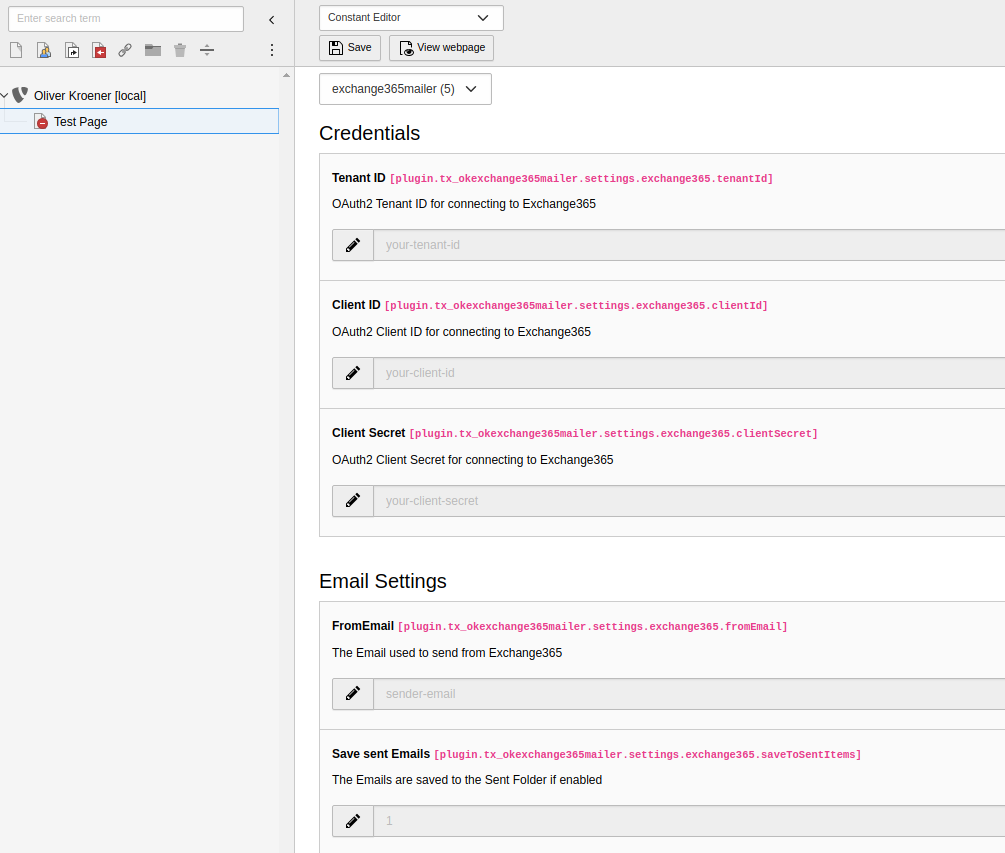

TYPO3 TypoScript configuration showing Exchange365 frontend parameters

Required TypoScript Parameters

The following 5 parameters must be configured in your TypoScript setup for frontend email functionality:

Transport Class Configuration

Set the mail transport to use the Exchange365Transport class for frontend operations.
```
config.mail.transport = OliverKroener\OkExchange365\Mail\Transport\Exchange365Transport
```
Copied!
Note

This tells TYPO3 to use the Exchange 365 transport instead of the default SMTP transport for frontend emails.
Tenant ID

Configure your Microsoft Entra ID tenant identifier.
```
plugin.tx_okexchange365mailer.settings.exchange365.tenantId = your-tenant-id-here
```
Copied!
Attention

Replace your-tenant-id-here with the actual Tenant ID from your Azure Configuration (step 4).
Client ID

Set your Azure application's client identifier.
```
plugin.tx_okexchange365mailer.settings.exchange365.clientId = your-client-id-here
```
Copied!
Attention

Replace your-client-id-here with the actual Client ID from your Azure Configuration (step 4).
Client Secret

Configure the Azure application's client secret.
```
plugin.tx_okexchange365mailer.settings.exchange365.clientSecret = your-client-secret-here
```
Copied!
Warning
- Replace your-client-secret-here with the actual Secret Value from your Azure Configuration (step 7)
- Security Risk: TypoScript is visible in the frontend source. Consider using Essential Configuration with environment variables for production
- Never expose this value in public repositories or frontend debugging
From Email Address

Set the sender email address for frontend-generated emails.
```
plugin.tx_okexchange365mailer.settings.exchange365.fromEmail = service@your-domain.com
```
Copied!
Note
- Replace service@your-domain.com with a valid email address from your Exchange 365 environment
- This email must exist as a SharedMailbox or User Mailbox in your organization
- If not specified, falls back to config.mail.defaultMailFromAddress
Save to Sent Items (Optional)

Determine whether frontend emails should be saved to the sender's "Sent Items" folder.
```
plugin.tx_okexchange365mailer.settings.exchange365.saveToSentItems = 1
```
Copied!
Note
- Set to 1 to save emails to Sent Items folder
- Set to 0 to skip saving emails to Sent Items folder
- Default value is 0 if not specified

Complete TypoScript Configuration Example

Here's a complete TypoScript setup example for frontend email functionality:

# Exchange 365 Frontend Mail Configuration
config {
    mail {
        # Set transport to Exchange 365
        transport = OliverKroener\OkExchange365\Mail\Transport\Exchange365Transport

        # Optional: Default mail settings
        defaultMailFromAddress = service@your-domain.com
        defaultMailFromName = Your Organization Name
    }
}

# Exchange 365 specific configuration
plugin.tx_okexchange365mailer {
    settings {
        exchange365 {
            # Azure/Microsoft Entra ID Configuration
            tenantId = your-tenant-id-here
            clientId = your-client-id-here
            clientSecret = your-client-secret-here

            # Email Configuration
            fromEmail = service@your-domain.com
            saveToSentItems = 1
        }
    }
}

Integration with Form Extensions

Powermail Integration

When using Powermail, the extension will automatically use the configured Exchange 365 transport for sending emails:

plugin.tx_powermail {
    settings {
        setup {
            # Powermail will use the global mail configuration
            # No additional configuration needed
        }
    }
}

TYPO3 Form Framework Integration

For the TYPO3 Form Framework, ensure your form configuration references the global mail settings:

# In your form configuration (YAML)
finishers:
  -
    identifier: EmailToReceiver
    options:
      # Uses global mail configuration automatically
      recipientAddress: 'recipient@example.com'
      recipientName: 'Recipient Name'

Configuration File Locations

Place your TypoScript configuration in one of these locations:

Template Records

Add the configuration to your main TypoScript template record in the TYPO3 backend.

Static Files

Create or modify files in your site package:

Configuration/TypoScript/setup.typoscript
Configuration/TypoScript/constants.typoscript (for constants)

Page TSconfig (Not recommended for mail settings)

Only use for page-specific overrides, not for global mail configuration.

Security Considerations for Frontend

Danger

TypoScript Security Warning

TypoScript configuration is potentially visible in frontend source code and through various debugging tools:

Client Secret Exposure: Never use sensitive secrets in TypoScript on production sites
Recommended Approach: Use Essential Configuration with environment variables
Alternative: Use TYPO3's encrypted configuration features for sensitive data
Monitoring: Regularly audit your TypoScript for exposed credentials

Best Practices

Environment-Specific Configuration

Use different Azure applications for different environments:

[applicationContext == "Development"]
    plugin.tx_okexchange365mailer.settings.exchange365.clientId = dev-client-id
    plugin.tx_okexchange365mailer.settings.exchange365.tenantId = dev-tenant-id
[END]

[applicationContext == "Production"]
    plugin.tx_okexchange365mailer.settings.exchange365.clientId = prod-client-id
    plugin.tx_okexchange365mailer.settings.exchange365.tenantId = prod-tenant-id
[END]

Conditional Loading

Only load Exchange 365 configuration when needed:

[siteIdentifier == "main-site"]
    <INCLUDE_TYPOSCRIPT: source="FILE:EXT:site_package/Configuration/TypoScript/exchange365.typoscript">
[END]

Fallback Configuration

Always provide fallback settings:

config.mail {
    defaultMailFromAddress = fallback@your-domain.com
    defaultMailFromName = Fallback Sender
}

Testing Frontend Configuration

To test your frontend configuration:

Create a test form using Powermail or Form Framework
Submit the form and verify email delivery
Check TYPO3 logs for any authentication or sending errors
Verify in Exchange 365 that emails appear in the sender's mailbox (if saveToSentItems is enabled)

Tip

Use TYPO3's mail spooling functionality during development to prevent sending actual emails while testing configuration.

Troubleshooting Frontend Issues

Common issues and solutions:

Emails not sending

Verify all 5 parameters are correctly configured in TypoScript
Check that the Azure application has proper permissions
Ensure the sender email exists in Exchange 365

Authentication errors

Verify Tenant ID and Client ID are correct
Check that the Client Secret is valid and not expired
Confirm Azure admin consent has been granted

Permission errors

Ensure the Azure application has Mail.Send permission
Verify the sender email address exists in your Exchange 365 environment
Check that the application can send on behalf of the specified user
