Configuration

The Extension works out of the box and configures all relevant parameters automatically.

Only the TypoScript needs to be inserted in order to obtain a display in the frontend. Here you can choose between site sets, add classic TypoScript records, or write your own TypoScript.

Site Sets

New in version TYPO3 v13.1 / iconpack v1.2.6

If you are working with TYPO3 v12.4, use TypoScript Records.

The extension ships some TypoScript code which can be included in the site configuration via Site sets:

Got to backend module Site Management > Sites.
Edit the configuration of your site.
On the first tab go to Sets for this Site.
Add the template Iconpack from the available items.

TypoScript Records

The extension ships some TypoScript code which needs to be included.

You can edit the corresponding template directly, or you can choose the following method (TYPO3 v12+):

Switch to Site Management > TypoScript.
Choose Edit TypoScript record from the dropdown menu.
Select the corresponding template in Selected record.
Press the link Edit the whole TypoScript record and switch to the tab Advanced Options.

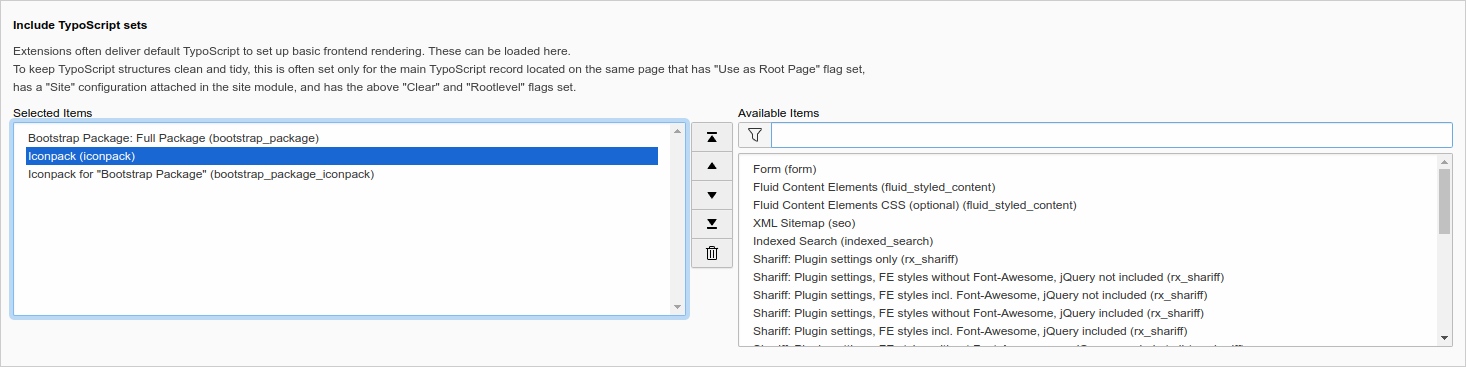

Select Iconpack (iconpack) at the field Include TypoScript sets:

Edit TypoScript Constants

If you choose one of the two methods above, the following TypoScript constants are available for editing:

cssClass

type: string
default: iconpack

Default CSS class: This classname will be the added in the frontend to all icons.

cssFile

type: string
default: EXT:iconpack/Resources/Public/Css/Iconpack.min.css

Default CSS file: Use this CSS file as default in the frontend.

renderTypesNative

type: string
default: svgInline,svgSprite,webfont,svg

Render types order (Native fields): If an Iconpack provides one of the types defined here (separated by commas), it will be used in the frontend (the order is crucial!).

renderTypesRte

type: string
default: svgInline,svgSprite,webfont,svg

Render types order (RTE): If an Iconpack provides one of the types defined here (separated by commas), it will be used in the frontend (the order is crucial!).

Custom TypoScript Configuration

If you do not choose either of the methods above or want to make individual configurations, you will need to define a few things in TypoScript so that the icons can be displayed in the frontend:

RTE content needs to be parsed by lib.parseFunc_RTE.nonTypoTagUserFunc
For the RTE, allowed content must be defined to enable the output of SVG elements
Templates must be added so that the icon field contained in the extension can be rendered for the title of a record. Keep this in mind if you use your own templates for the header.
A small CSS is required for the frontend output to achieve a consistent display of different icons.

Tip

Take a closer look at the content of iconpack/Configuration/TypoScript/setup.typoscript to make individual adjustments.

Note

If you use EXT:bootstrap_package_iconpack, make sure you include the templates at the end, otherwise lib.parseFunc_RTE will be overwritten by EXT:bootstrap_package and the icons cannot be displayed by the RTE.

Overriding Settings

The basic representation of icons is defined in the respective iconpack via the "renderTypes" key, and can be subsequently overwritten at any time using TypoScript for the frontend. The defined values are keywords separated by commas, which represent a sequence. If an iconpack does not contain the requested renderType, the next defined renderType is used.

To override the default settings for rendering iconpacks, the key plugin.tx_iconpack.settings.renderTypes is created in the template or in the respective page. The settings can apply to all iconpacks with the key _default, or can refer to a specific iconpack.

The following examples show such a configuration for the frontend.

Override Settings in the Frontend

The settings for the frontend are made in the TypoScript Setup. Rendering in the frontend is done via dataProcessing, which can be assigned to any custom fields.

# Typoscript setup
plugin.tx_iconpack {
   settings {
      # If you change the CSS class, please also note that you have to change it in your CSS files accordingly!
      #   You can also remove this completely if you don't need it.
      cssClass = {$plugin.tx_iconpack.cssClass}
      # Define the order of the renderTypes here.
      #   If an Iconpack provides one of the types defined here (separated by commas), it will be used (the order is crucial!).
      #   This can be specified differently for icons from a field or the RTE with the keys "native" and "rte".
      #   Available values: svgInline, svgSprite, webfont, svg
      renderTypes {
         # Override default values for all iconpacks
         _default {
            native = svgSprite, webfont
            rte = webfont
         }
         # Override values only for specific iconpacks by using their key
         fa6 {
            native = svgInline
         }
         glyphicons = webfont
      }
   }
}

Extension Configuration

You can control whether the required assets should be included automatically and whether the CKEditor should be configured automatically.

Some iconpacks also offer the option of choosing between different icon set versions and other options. These settings are made in the extension configuration of the respective iconpack.

The following settings are currently available:

autoConfigRte

type: bool
default: 1

If enabled, the CKEditor will be configured automatically (no PageTS needed), so that the icons inserted in the RTE and their values are preserved when saving. If this option is disabled, these parameters must be inserted manually in the custom YAML configuration for the CKEditor.

autoAddAssets

type: bool
default: 1

If enabled, all CSS files required by the installed iconpacks are automatically included in the frontend.

rteSvg

type: bool
default: 1

If this option is enabled, icons are loaded in the RTE as SVG (inline, sprites) if they are available in the respective icon pack. Otherwise, only webfonts and IMG tags will be used instead, which results in a simpler format but may differ from the frontend appearance. Note: Clear the TYPO3 cache after changing this option!

This setting only affects the presentation of the icons used in the RTE, not the content stored in the database! When loading the content, an icon is generated as SVG via the iconfig string and displayed in the RTE. When saving, it is converted back and no real SVG code ever ends up in the database!

defaultConfig

type: string
default: EXT:iconpack/Configuration/Iconpack/Default.yaml

Path to the YAML configuration file containing the default options for all installed icon packs. Leave this field blank to disable it, or use your own configuration file. If you specify your own file here, it will overwrite the default options for all icon packs, unless they contain their own options. Please also note that you must specify a corresponding CSS file for rendering the respective options in the YAML file with the key optionsCss (see example below).

Important

Changing the extension configuration requires an emptying of the TYPO3 cache for the changes to take effect!

If you deactivate autoConfigRte or autoAddAssets, however, you will have to make the required configuration yourself and integrate it into your own setup. Use the following two examples...

Example of manual CKEditor 4 configuration (TYPO3 v10/11)

editor:

   externalPlugins:
      iconpack: { resource: 'EXT:iconpack/Resources/Public/JavaScript/v11/CKEditor/plugin.js' }

   config:
      # Note: CSS files required by specific iconpacks is loaded automatically!
      contentsCss:
         - 'EXT:iconpack/Resources/Public/Css/Backend/CKEditor.min.css'

      # This configuration is necessary so that certain contents can be inserted in CKEditor4 in the first place.
      # All values defined here finally end up in the RTE and can be edited there.
      #
      # Note, however, that these values are additionally filtered again with PHP when saving, and ultimately only the attributes
      # defined here are actually stored in the database. In addition, for the output in the frontend on the one hand the
      # RteHtmlParser is used and on the other hand the Sanitizer, which finally decides which output ends up in the FE.
      #
      # More information about the RTE content filter can be found here:
      #   https://ckeditor.com/docs/ckeditor4/latest/examples/acfcustom.html
      #   https://ckeditor.com/docs/ckeditor4/latest/guide/dev_advanced_content_filter.html
      #
      extraAllowedContent:
         # Allow <span> tags (webfont)
         - span(*)[!data-iconfig,id,name,class,style,alt,title]{color,background*,margin,padding,align,vertical-align}
         # Allow SVG images (svg)
         - img[!data-iconfig,id,name,class,style,alt,title]{margin,padding,align,vertical-align}

      extraPlugins:
         - iconpack

If you have also enabled the rteSvg option via the extension configuration, you will need to allow various SVG elements in CKEditor4 as well (in CKEditor5, this is done via the model schema of the CKEditor plugin):

editor:
   config:
      extraAllowedContent:
         # Allow SVG (svgInline, svgSprite)
         #   svgGlobalAttributes = class,id,title
         #   svgPresentationAttributes = clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility
         - svg(*)[!data-iconfig,name,style,alt,width,height,fill,viewBox,xmlns,xmlns:xlink,class,id,title,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]{color,background*,margin,padding,align,vertical-align}
         - use[href,xlink:href,x,y,width,height,class,id,title,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - title[id]
         - desc[id]
         - defs[class,id,title,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - linearGradient[gradientUnits,gradientTransform,spreadMethod,x1,x2,y1,y2,class,id,title,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - radialGradient[gradientUnits,gradientTransform,spreadMethod,cx,cy,fr,fx,fy,r,class,id,title,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - g(*)[class,id,title,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - stop[stop-color,stop-opacity,offset,class,id,title,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - line[x1,y1,x2,y2,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - path[!d,style,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - polyline[!points,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - polygon[!points,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - rect[width,height,x,y,rx,ry,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - circle[cx,cy,r,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]
         - ellipse[cx,cy,rx,ry,clip-path,clip-rule,color,display,fill,fill-opacity,fill-rule,filter,mask,opacity,shape-rendering,stroke,stroke-dasharray,stroke-dashoffset,stroke-linecap,stroke-linejoin,stroke-miterlimit,stroke-opacity,stroke-width,transform,visibility]

Example of manual CKEditor 5 configuration (TYPO3 v12+)

editor:
   config:
      # Note: CSS files required by specific iconpacks is loaded automatically!
      contentsCss:
         - 'EXT:iconpack/Resources/Public/Css/Backend/CKEditor.min.css'

      # Load modules for plugins when CKEditor is initialized
      # See CKEditor plugin API for details
      importModules:
         - { module: '@quellenform/iconpack-ckeditor.js', exports: [ 'Iconpack' ] }

      toolbar:
         items:
            - '|'
            - Iconpack

(Please take at look at the examples, located in Configuration/RTE/)

Example of a YAML file for custom options

The defaultConfig option defines a YAML file that controls the default options for all installed icon packs. You can edit this file as you wish so that you can use your own transformations and animations. Please note, however, that the values used here will also be stored in the database, so you should use these settings with caution.

iconpack:
   optionsCss:
      transforms: "EXT:iconpack/Resources/Public/Css/IconpackTransforms.min.css"

   options:
      size:
         type: "select"
         label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:label.size"
         values:
         xs:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.xs"
            attributes:
               class: "iconpack-xs"
         sm:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.sm"
            attributes:
               class: "iconpack-sm"
         md:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.md"
            attributes:
               class: "iconpack-md"
         lg:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.lg"
            attributes:
               class: "iconpack-lg"
         1x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.1x"
            attributes:
               class: "iconpack-1x"
         2x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.2x"
            attributes:
               class: "iconpack-2x"
         3x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.3x"
            attributes:
               class: "iconpack-3x"
         4x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.4x"
            attributes:
               class: "iconpack-4x"
         5x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.5x"
            attributes:
               class: "iconpack-5x"
         6x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.6x"
            attributes:
               class: "iconpack-6x"
         7x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.7x"
            attributes:
               class: "iconpack-7x"
         8x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.8x"
            attributes:
               class: "iconpack-8x"
         9x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.9x"
            attributes:
               class: "iconpack-9x"
         10x:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:size.10x"
            attributes:
               class: "iconpack-10x"

      decoration:
         type: "select"
         label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:label.decoration"
         values:
         border:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:decoration.border"
            attributes:
               class: "iconpack-border"

      transform:
         type: "select"
         label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:label.transform"
         values:
         r90:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.90"
            attributes:
               class: "iconpack-rotate-90"
         r180:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.180"
            attributes:
               class: "iconpack-rotate-180"
         r270:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.270"
            attributes:
               class: "iconpack-rotate-270"
         fx:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.flipHorizontal"
            attributes:
               class: "iconpack-flip-horizontal"
         fy:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.flipVertical"
            attributes:
               class: "iconpack-flip-vertical"
         fxy:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.flipBoth"
            attributes:
               class: "iconpack-flip-both"
         beat:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.beat"
            attributes:
               class: "iconpack-beat"
         bounce:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.bounce"
            attributes:
               class: "iconpack-bounce"
         fade:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.fade"
            attributes:
               class: "iconpack-fade"
         beat-fade:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.beat-fade"
            attributes:
               class: "iconpack-beat-fade"
         flip:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.flip"
            attributes:
               class: "iconpack-flip"
         shake:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.shake"
            attributes:
               class: "iconpack-shake"
         spin:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.spin"
            attributes:
               class: "iconpack-spin"
         spin-pulse:
            label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:transform.spin-pulse"
            attributes:
               class: "iconpack-spin-pulse"

      fixed:
         type: "checkbox"
         label: "LLL:EXT:iconpack/Resources/Private/Language/locallang_be.xlf:label.fixed"
         attributes:
         class: "iconpack-fw"
