Configuration

The Extension works out of the box and configures all relevant parameters automatically.

Only the TypoScript needs to be inserted in order to obtain a display in the frontend:

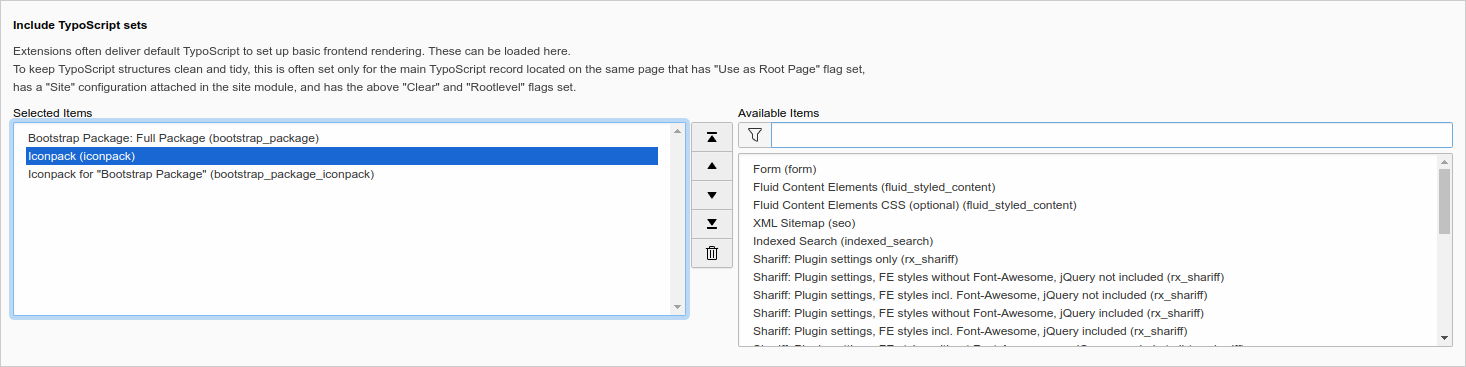

TypoScript Configuration

To enable the icons to be output in the frontend, a few things need to be defined in the TypoScript:

  • RTE content is parsed by lib.parseFunc_RTE.nonTypoTagUserFunc
  • Allowed content is defined for the RTE to enable the output of SVG elements
  • Templates are added so that the icon field contained in the extension can be rendered for the title of a record. Keep this in mind if you use your own templates for the header.
  • A small CSS is added to the frontend output to achieve a consistent display of different icons.

All these values can of course be overwritten individually.

If you want to keep the default settings, simply add the TypoScript provided at the end of your setup:

Overriding Settings

The basic representation of icons is defined in the respective iconpack via the "renderTypes" key, and can be subsequently overwritten at any time using TypoScript for the frontend. The defined values are keywords separated by commas, which represent a sequence. If an iconpack does not contain the requested renderType, the next defined renderType is used.

To override the default settings for rendering iconpacks, the key plugin.tx_iconpack.settings.renderTypes is created in the template or in the respective page. The settings can apply to all iconpacks with the key _default, or can refer to a specific iconpack.

The following examples show such a configuration for the frontend.

Override Settings in the Frontend

The settings for the frontend are made in the TypoScript Setup. Rendering in the frontend is done via dataProcessing, which can be assigned to any custom fields.

# Typoscript setup
plugin.tx_iconpack {
   settings {
      # If you change the CSS class, please also note that you have to change it in your CSS files accordingly!
      #   You can also remove this completely if you don't need it.
      cssClass = {$plugin.tx_iconpack.cssClass}
      # Define the order of the renderTypes here.
      #   If an Iconpack provides one of the types defined here (separated by commas), it will be used (the order is crucial!).
      #   This can be specified differently for icons from a field or the RTE with the keys "native" and "rte".
      #   Available values: svgInline, svgSprite, webfont, svg
      renderTypes {
         # Override default values for all iconpacks
         _default {
            native = svgSprite, webfont
            rte = webfont
         }
         # Override values only for specific iconpacks by using their key
         fa6 {
            native = svgInline
         }
         glyphicons = webfont
      }
   }
}
Copied!

Extension Configuration

You can control whether the required assets should be included automatically and whether the CKEditor should be configured automatically.

Some iconpacks also offer the option of choosing between different icon set versions and other options. These settings are made in the extension configuration of the respective iconpack.

The following settings are currently available:

autoConfigRte

autoConfigRte
type

bool

default

1

If enabled, the CKEditor will be configured automatically (no PageTS needed), so that the icons inserted in the RTE and their values are preserved when saving. If this option is disabled, these parameters must be inserted manually in the custom YAML configuration for the CKEditor.

autoAddAssets

autoAddAssets
type

bool

default

1

If enabled, all CSS files required by the installed iconpacks are automatically included in the frontend.

If you deactivate these settings, however, you will have to make the required configuration yourself and integrate it into your own setup. Use the following two examples...

Example of manual CKEditor 4 configuration (TYPO3 v10/11)

editor:

   externalPlugins:
      iconpack: { resource: 'EXT:iconpack/Resources/Public/JavaScript/v11/CKEditor/plugin.js' }

   config:
      # Note: CSS files required by specific iconpacks is loaded automatically!
      contentsCss:
         - 'EXT:iconpack/Resources/Public/Css/Backend/CKEditor.min.css'

      # This configuration is necessary so that certain contents can be inserted in CKEditor4 in the first place.
      # All values defined here finally end up in the RTE and can be edited there.
      #
      # Note, however, that these values are additionally filtered again with PHP when saving, and ultimately only the attributes
      # defined here are actually stored in the database. In addition, for the output in the frontend on the one hand the
      # RteHtmlParser is used and on the other hand the Sanitizer, which finally decides which output ends up in the FE.
      #
      # More information about the RTE content filter can be found here:
      #   https://ckeditor.com/docs/ckeditor4/latest/examples/acfcustom.html
      #   https://ckeditor.com/docs/ckeditor4/latest/guide/dev_advanced_content_filter.html
      #
      extraAllowedContent:
         # webfont: Allow <span> tags
         - span(*)[!data-iconfig,id,name,class,style,alt,title]{color,background*,margin,padding,align,vertical-align}
         # image: Allow svg images
         - img[!data-iconfig,id,name,class,style,alt,title]{margin,padding,align,vertical-align}

      extraPlugins:
         - iconpack
Copied!

Example of manual CKEditor 5 configuration (TYPO3 v12+)

editor:
   config:
      # Note: CSS files required by specific iconpacks is loaded automatically!
      contentsCss:
         - 'EXT:iconpack/Resources/Public/Css/Backend/CKEditor.min.css'

      # Load modules for plugins when CKEditor is initialized
      # See CKEditor plugin API for details
      importModules:
         - { module: '@quellenform/iconpack-ckeditor.js', exports: [ 'Iconpack' ] }

      toolbar:
         items:
            - '|'
            - Iconpack
Copied!

(Please take at look at the examples, located in Configuration/RTE/)
