Module manual¶
If you like to use the GpsNose-Plugin, it is a must, to install the free GpsNose-App in your Smartphone.
- For iOS
- For Android
Create an account and validate it (only validated users are allowed to create new Mashup-Sites)
Open the GpsNose-Module (after installation the plugin, it will appear under the Admin-Tools on the left) Use the QR-Code-Reader in the GpsNose-App to scan the the generated QR-Code in the Module. Some seconds later, you should see the Mashup-Admin Page (empty list with an Add-Button)
![../_images/backend-04.png](../_images/backend-04.png)

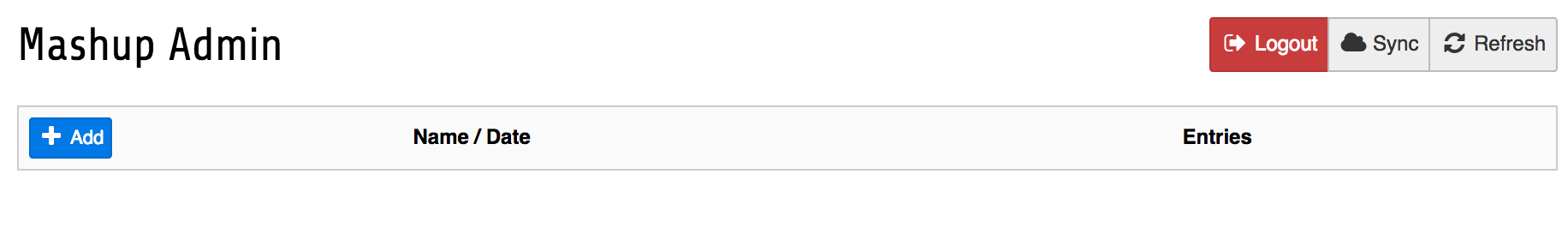

Empty list¶
When you click the Add-Button you get the create-mashup page, enter the name of your mashup-domain
![../_images/backend-05.png](../_images/backend-05.png)

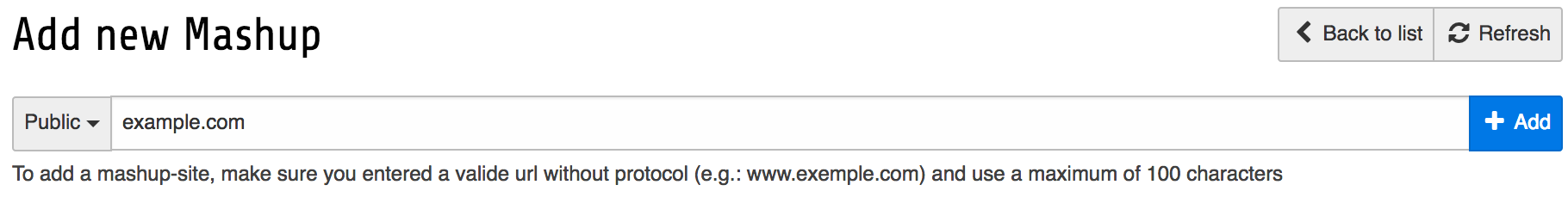

Add mashup-site¶
Click the Submit-Button, if the mashup-site is not registered by another user, you will see your temporary created mashup-entry. As long as you dont validate it, it will be bossible to change the visibility of the new mashup-site.
From now on, your page will provide a new meta-tag, this meta-tag will be used by GpsNose to validate the mashup-site
<meta name="gpsnose-validation-key" content="240dac81-573c-4a52-bc18-5e8a56a65d4d" />
If you are ok with your work, click the Validta-Button
![../_images/backend-06.png](../_images/backend-06.png)

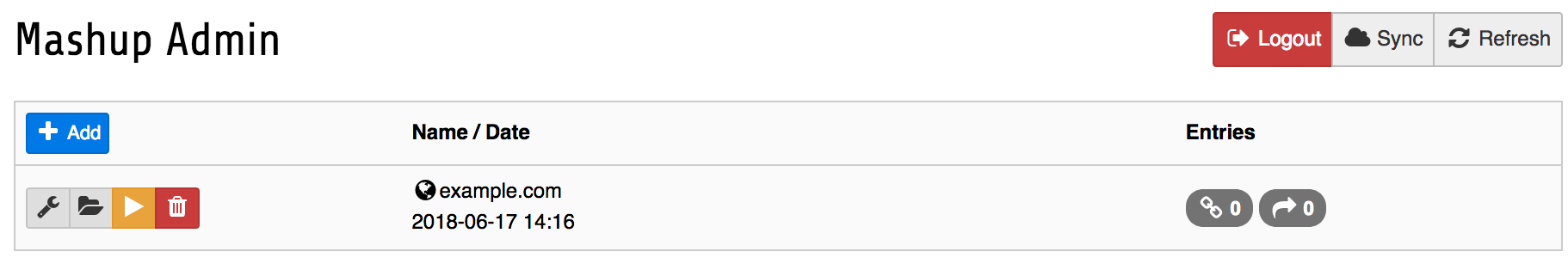

Validate mashup-site¶
After GpsNose has validated the meta-tag, it will return the API-Key to the TYPO3-Backend
When everything works like expected, you are able to edit your mashup-site
![../_images/backend-03.png](../_images/backend-03.png)

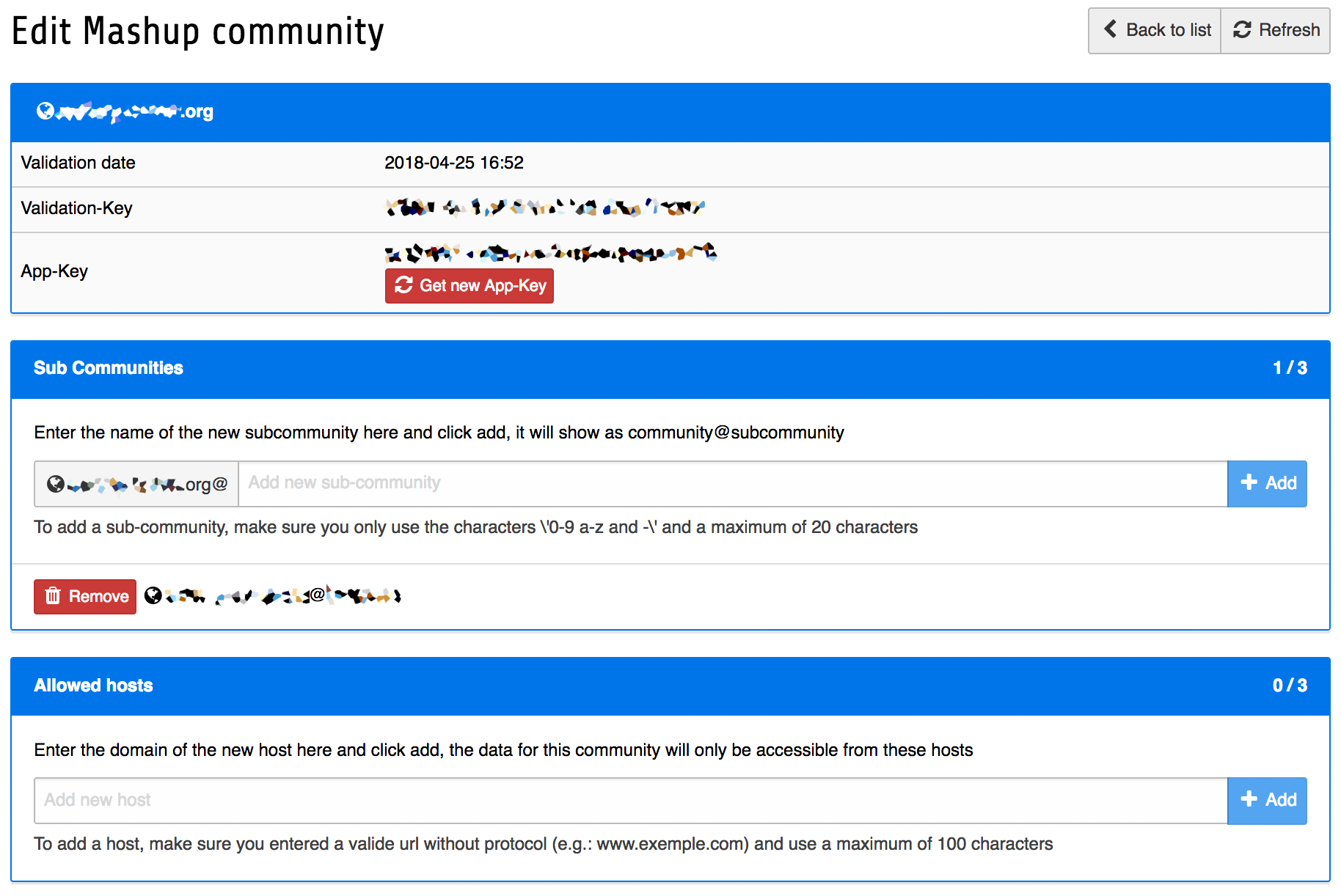

Entry Detail¶
Validaten-Key is only used to validate the mashup-site and does nothing after validaten was successfully
App-Key is the secure 16 Byte key, dont show this information to anybody, it is your key to request data from GpsNose
Subcommunity is used to create a hierarchical structure, the plugins will provide
Allowed hosts defines witch host is allowed to request data from GpsNose
Target group: Administrators
