Target group: Editors
Welcome to our small dashboard introduction. We will explain the basic usage of the TYPO3 dashboard.
TODO: Add documentation once dashboard position is fixed.
The ext:dashboard allows to have multiple dashboards. Switching between different dashboards is possible by using the corresponding tab.
In order to add further dashboards, press the + sign.

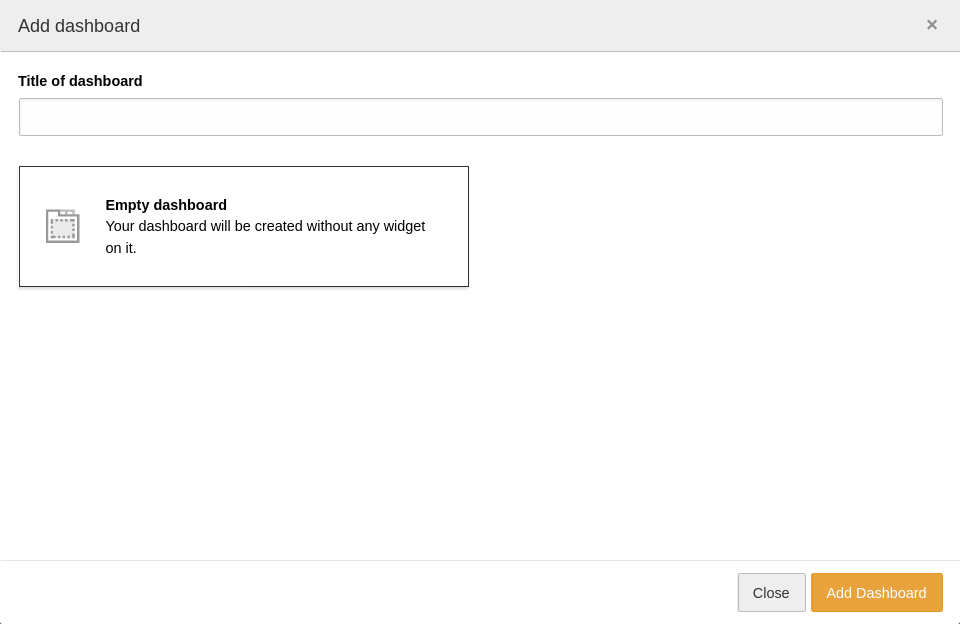

A wizard should open which allows to add the new dashboard.
There you can select a preset. At least the the default preset, which is shipped by core should be available. Depending on system configuration further dashboard presets might be available.
Existing dashboards can be edited and deleted. On the right side of the tab bar are the icons which allow deletion and adjusting settings of the currently active dashboard.
Widgets can be added to a dashboard. Dashboards which do not contain any widget yet, offer a dialog in the middle of the screen, which allows to add one or more widgets to the current dashboard.
All dashboards allow to add further widgets in the lower right corner through the + Icon.

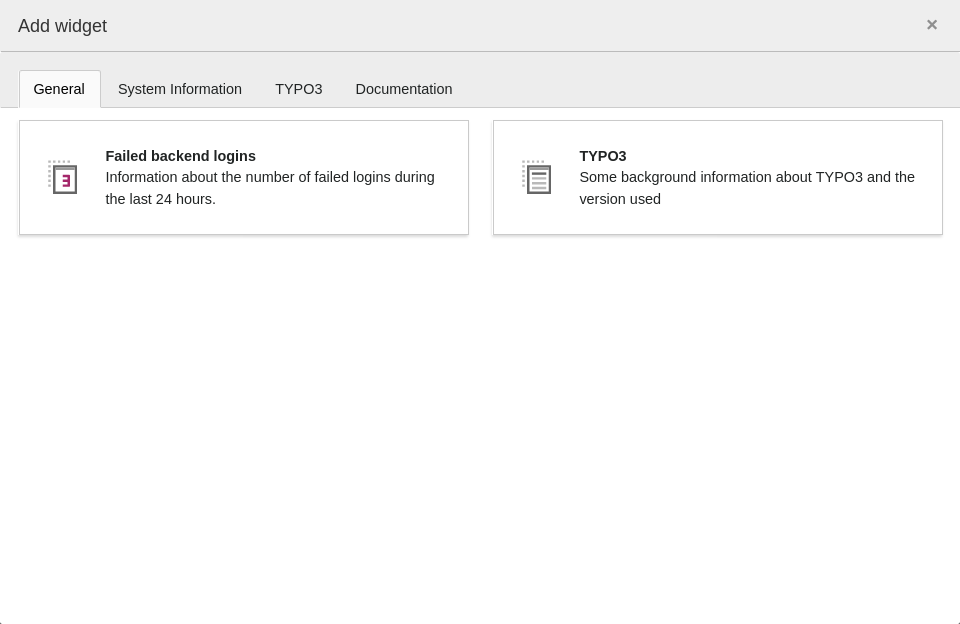

Once the action to add a new wizard was triggered, a wizard opens which allows to select the widget to add.
Widgets are grouped in tabs and can be added by clicking on them.

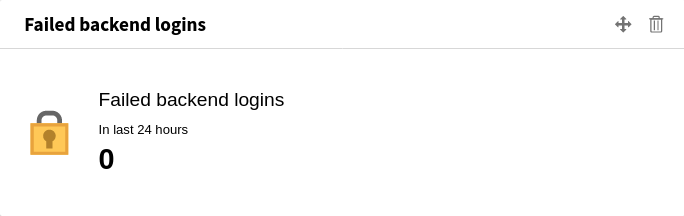

Widgets can be moved around. Therefore a widget needs to be hovered. If a widget is hovered some icons appear in the upper right corner of the widget.
To move the widget, click and hold left mouse button on the cross icon. Then move to the target position.
To delete a widget, the widget needs to be hovered. If a widget is hovered some icons appear in the upper right corner of the widget.
Click the trash icon which appears to delete the widget.

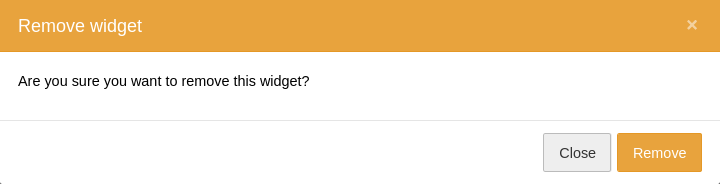

In order to prevent accidentally deletion, a modal is shown to confirm deletion. Confirm by clicking the Remove button.
