Administration

Extension Configuration

Some global settings of the extension may be configured in Settings -> Extension Configuration -> ods_osm.

Screenshot

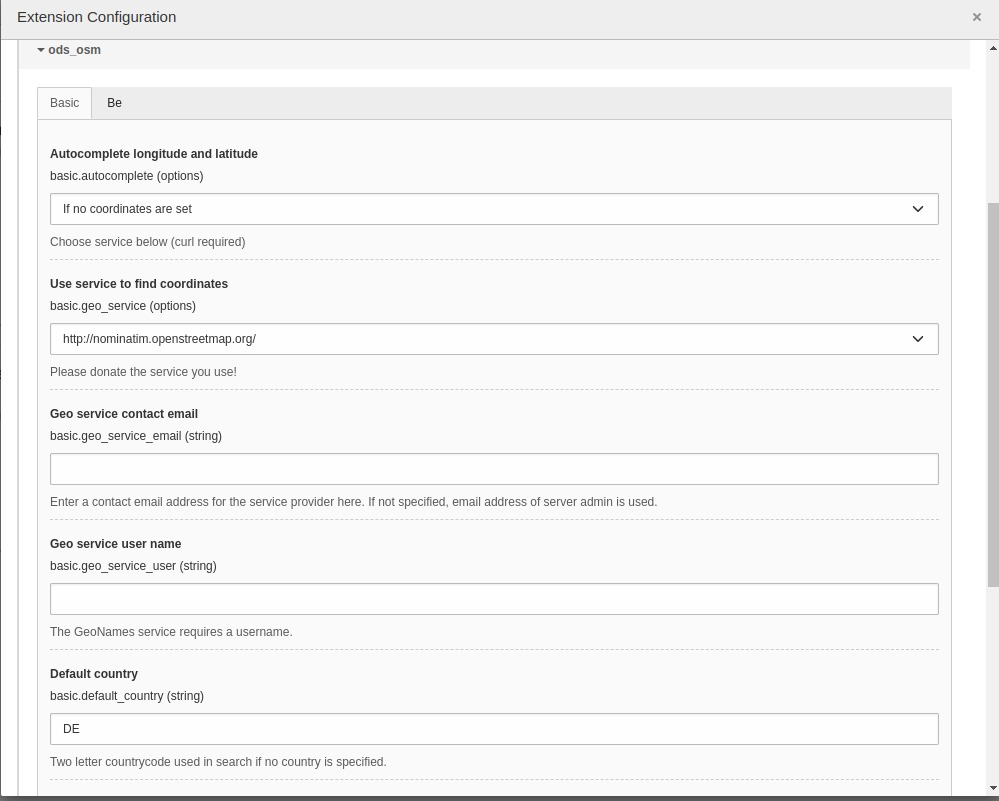

Screenshot with first part of the ods_osm settings in the extension configuration

Screenshot of the ods_osm Extension Configuration

Reference

Option Description Default
Autocomplete longitude and latitude You can enable to search the coordinates on geonames.org when saving an fe_users or tt_address element. 1: If no coordinates are set
Use service to find coordinates Use this service to get the coordinates of an address. If you select “Only cache” you have to fill the cache table manually. If you select a provider here, be aware that the fields “zip”, “city” and “country” of every address record you save is sent to the provider. 2: Nominatim
Geo service contact email Enter a contact email address for the service provider here. If not specified, email address of server admin is used.
Geo service user name The GeoNames service requires a username
Default country Two letter countrycode used in search if no country is specified. DE
Enable address search cache The result of the geo service is stored in tx_odsosm_geocache if activated. 1
Use local javascripts and images Activate this if you don't like to use the javascript files from CDNs but the local ones from this extension. 1
Default longitude   10.41
Default latitude   51.27
Default zoom   8

TypoScript Configuration

It is mandatory to include the ods_osm TypoScript template "Template OpenStreetMap". This template sets some default values for the ods_osm plugin. The defaults may be configured with the TypoScript Constant Editor.

With these TypoScript defaults, the editor does not need to make a detailed configuration of the ods_osm plugin. Selecting the wanted marker is suffician.

The dimenions of the map, the right JavaScript library and zoom level are set by the defaults. But editors may set and overwrite the defaults in the plugin settings.

Reference

Property Data type Description Default
cluster boolean Cluster marker at lower map zoom. 0
cluster_radius integer Cluster marker in given radius. 80
external_control boolean
Allow control with GET or POST
lon: Map center longitude
lat: Map center latitudezoom: Map zoom level
layers: Comma separated list of tx_odsosm_layer uid's
records: Comma separated list of markers
Don't forget to set no_cache=1
0
height integer

Height of the map div block. This depends on your webdesign. The default value is 80vh which means 80% from current view port.

You can set other values like "80%", 480, 480px

80vh
icon IMAGE or TEXT object Default marker image Library default
JSlibrary string JavaScript library: none / jquery none
layer integer list | Comma separated list of tx_odsosm_layer uid's. | 1: Mapnik | 2: SLUB Renderer | 3: CycleMap | 13: ÖPNV Deutschland | 14: Hike & Bike Map | 15: Hillshading (NASA SRTM3 v2) | 17: Hiking routes | 18: Mapnik BW | 19: MapSurfer.Net Road | 20: MapSurfer.Net Topographic | 21: MapSurfer.Net Hybrid | 25: TransportMap | 28: Cycling routes | 29: Stamen Toner | 30: Stamen Watercolor | 31: Public Transport Lines | 32: Stamen Terrain Labels | 33: Railway Infrastructure 1
library string Library: leaflet / openlayers / openlayers3 / static |ol|
marker array with table name and integer list Tablenames and a comma separated list of record ids. see m
|mpi| integer Open popup of this marker
no_marker boolean
If no marker is set:
0: Hide map
1: Show map
1
popup TS object There are two additional fields: “group_title” and “group_description” filled with group information. see p
position boolean Get current user postion from browser to center the map. 0
|sls| boolean   0
show_popups boolean
0:No
1:Click
2:Hover
0
show_scalebar boolean Show a scale line on the map. 0
|uconm| boolean Use the default coordinates only if no marker exists. 0
width integer

Height of the map div block. This depends on your webdesign. The default value is 80vw which means 80% from current view port.

You can set other values like "100%", 640, 640px

80vw

Examples

plugin.tx_odsosm_pi1 {
	width = 800
	height = 600
	mouse_position = 1
}
Copied!

Markers

plugin.tx_odsosm_pi1 {
	marker {
		pages =
		fe_users =
		fe_groups =
		tx_odsosm_track =
	}
}
Copied!

Popups

plugin.tx_odsosm_pi1 {
	popup {
		fe_users = COA
		fe_users {
			9 = FILES
			9 {
				references {
					table = fe_users
					fieldName = image
				}
				renderObj = IMAGE
				renderObj {
					file {
						import.data = file:current:uid
						treatIdAsReference = 1
						width = 150c
						height = 150c
					}
					altText.data = file:current:alternative
					titleText.data = file:current:title
					stdWrap.typolink.parameter.data = file:current:link
				}
			}
			10 = TEXT
			10 {
				field = name
				wrap = <h2>|</h2>
				override = {field:first_name} {field:middle_name} {field:last_name}
				override.insertData = 1
				override.if.isFalse.field = name
			}
			20 = TEXT
			20.field = description
			20.htmlSpecialChars = 1
		}
		tt_address = COA
		tt_address {
			9 = FILES
			9 {
				references {
					table = tt_address
					fieldName = image
				}
				renderObj = IMAGE
				renderObj {
					file {
						import.data = file:current:uid
						treatIdAsReference = 1
						width = 150c
						height = 150c
					}
					altText.data = file:current:alternative
					titleText.data = file:current:title
					stdWrap.typolink.parameter.data = file:current:link
				}
			}
			10 = TEXT
			10.field = name
			10.wrap = <h2>|</h2>
			20 = TEXT
			20.field = description
			20.stdWrap.parseFunc < lib.parseFunc_RTE
			20.htmlSpecialChars = 0
		}
	}
}
Copied!

Icon Property

plugin.tx_odsosm_pi1 {
	icon {
		# IMAGE example
		fe_users = IMAGE
		fe_users {
			file = fileadmin/icon.png
			file.width = 60px
		}

		# HTML example
		fe_users = TEXT
		fe_users {
			value = <span>X</span>
			size_x=20
			size_y=30
			offset_x=10
			offset_y=15
		}
	}
}
Copied!
