Using a wizard for additional parameters

You may need to ask user for more than a single parameter. And as a single string is used to store and pass them to your method, you will have to encode them in some way, either as a comma-separated list of values or as a JSON string or even as XML. This means you hardly can expect user to remember the exact syntax to be used to specify all those parameters.

You already know of many extensions providing a wizard to help you prepare plugin configuration. With this extension, you also have the opportunity to create a wizard. The wizard is typically written in JavaScript and basically supports whatever you may do with a TCA wizard of type “userFunc” (see TSref for more information).

Screenshot below shows an additional icon next to the parameter field:

Additional parameters

In order to display the parameter wizard icon (Wizard available), you have to write a method getWizard() in your class that returns either the JavaScript code to be executed when user clicks on the icon or a full HTML snippet to be included after the field:

public function getWizard($methodName, array &$PA, &$autoJS) {
    $js = '';

    if ($methodName === 'myRecipientList') {
        $js = '
            var params = document.'.$PA['formName'].'[\''.$PA['itemName'].'\'].value;
            if (empty(params)) params = 2;
        ';

        // Show a standard javascript prompt and assign result to the parameters field
        // This information will be saved with form and available in myRecipientList
        $js .= '
            var r = prompt("How many items do you want in your list?", params);
            if (r != null) {
                document.'.$PA['formName'].'[\''.$PA['itemName'].'\'].value =
                    parseInt(r);'.
                implode('', $PA['fieldChangeFunc']) .';
            }
        ';
    }

    return $js;
}

Parameters of the getWizard method are:

  • $methodName : Name of the method for which a wizard may be specified.
  • $PA : The full TCA configuration for the parameter field. Passed by reference. This allows you to change the way the input field itself is rendered. (see TSref for an example).
  • $autoJS : Defaults to TRUE. Passed by reference. Should be set to FALSE if you want to have full control to create your wizard. In such case, no code is added to the onclick event of the parameter icon. You should handle it on your own. This is typically useful when creating an ExtJS wizard. The icon tag is given HTML id params-btn.

Caution

Make sure to always run JavaScript code stored in $PA['fieldChangeFunc'] when updating the value as it takes care of telling TCEforms that the value has been updated.

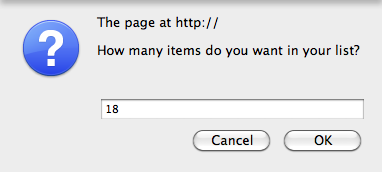

If you run code written in method getWizard() above, you will get a standard JavaScript prompt that asks you the number of recipients you want to get in your recipient list:

Standard alert box

As TYPO3 comes with the ExtJS framework, you may show a prettier dialog (code is provided in Classes/Samples):

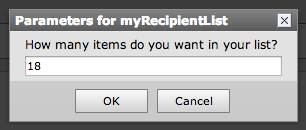

Alert box based on ExtJS
