Common pitfalls¶
This section describes common pitfalls while configuring SSO. Please feel free to open tickets if you encounter other problems and found a solution.
Case of option switches¶
Warning
Option switches MUST be written lower case. Opposed to other modules like mod_rewrite.c, where the case of the keywords “on” and “off” does not matter, mod_kerb_auth.c requires you to write these switches lower case, or else the default value will be used.
Basic authentication prompt is always shown¶
Problem is that, although you set KrbMethodK5Passd off
in your Apache configuration, the browser of your domain
machines/computers always shows the basic authentication dialog and does not seem to silently pass your user credentials
to the web server.
Apache’s error log shows:
[debug] [client X.X.X.X] kerb_authenticate_user entered with user (NULL) and auth_type Kerberos
[debug] [client X.X.X.X] Acquiring creds for HTTP@intranet.example.com
[debug] [client X.X.X.X] Verifying client data using KRB5 GSS-API
[debug] [client X.X.X.X] Client didn't delegate us their credential
[debug] [client X.X.X.X] GSS-API token of length 9 bytes will be sent back
[debug] [client X.X.X.X] GSS-API major_status:000d0000, minor_status:000186a5
[error] [client X.X.X.X] gss_accept_sec_context() failed: Unspecified GSS failure.
Minor code may provide more information (, )
It turns out that although the domain controller is MS Windows Server 2008r2 and the domain machine is using MS Windows 8.1, the account does not support Kerberos AES 256 bit encryption by default.
To fix this problem, either switch to RC4 for your Apache keytab file or enable the enhanced security option for the user accounts on your domain controller.

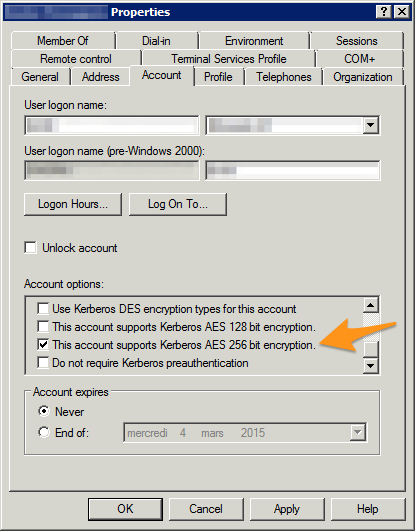

Security properties of a Windows domain account
Apache’s error log when everything is working properly:
[debug] [client X.X.X.X] kerb_authenticate_user entered with user (NULL) and auth_type Kerberos
[debug] [client X.X.X.X] Acquiring creds for HTTP@intranet.example.com
[debug] [client X.X.X.X] Verifying client data using KRB5 GSS-API
[debug] [client X.X.X.X] Client didn't delegate us their credential
[debug] [client X.X.X.X] GSS-API token of length 185 bytes will be sent back
[debug] [client X.X.X.X] kerb_authenticate_a_name_to_local_name einstein@EXAMPLE.COM -> einstein
Hint
In case you need/prefer it, a hidden option of mod_auth_kerb
lets you automatically strip @EXAMPLE.COM (the
realm) from usernames:
KrbLocalUserMapping on
Another problem with the basic authentication prompt always shown might show up as follows in Apache’s error log:
[error] [client X.X.X.X] gss_accept_sec_context() failed: Unspecified GSS failure.
Minor code may provide more information (, Wrong principal in request)
Although the reason is most probably that the reverse DNS of the web server is not exactly identical to what was specified in the keytab file, in one case, it turned out the problem was the very same as above, namely that the account did not support Kerberos AES 256 bit encryption.
Note
It may be a good option to add the domain name of your intranet page to the file /etc/hosts
. This is of
course no actual requirements but may help the keytab file to work properly if your DNS are not reliable.
Sources:
