Using Advanced templates¶
More complex templates are provided with SAV Charts. They can display upto to 9 items in the same charts.
Colors are defined in a specific template DefaultColors.xml
which were chosen to provide constrast between items.
Let us illustrate the use of advanced templates with, for example,
the template LineChartAdvanced.xml
.
In the template section enter the following code, save and go to the frontend.
<template id="1">
typo3conf/ext/sav_charts/Resources/Private/Templates/ChartsExamples/LineChartAdvanced.xml
</template>

The chart has 9 superposed curves with the same data, predefined colors, predefined labels and a predefined title.

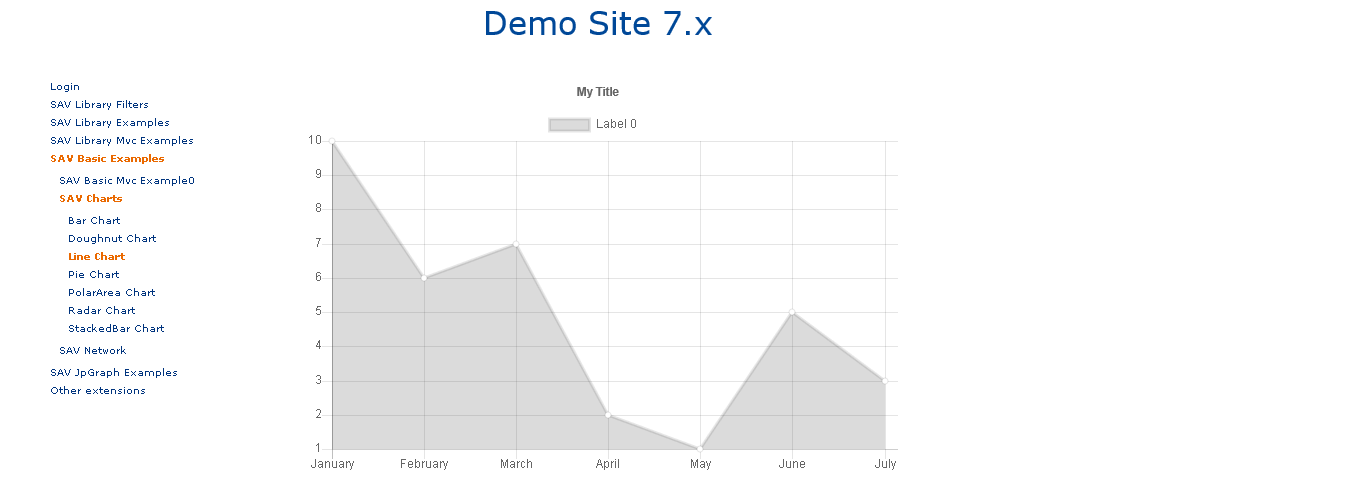

In the data section enter the following code, save and go to the frontend.
<data id="data">
<item key="0" values="10, 6, 7, 2, 1, 5, 3" />
</data>

Modify the data section as follows:
<data id="data">
<item key="0" values="10, 6, 7, 2, 1, 5, 3" />
<item key="1" values="5, 3, 8, 1, 6, 9, 2" />
</data>
<data id="labels">
1, 2, 3, 4, 5, 6, 7
</data>

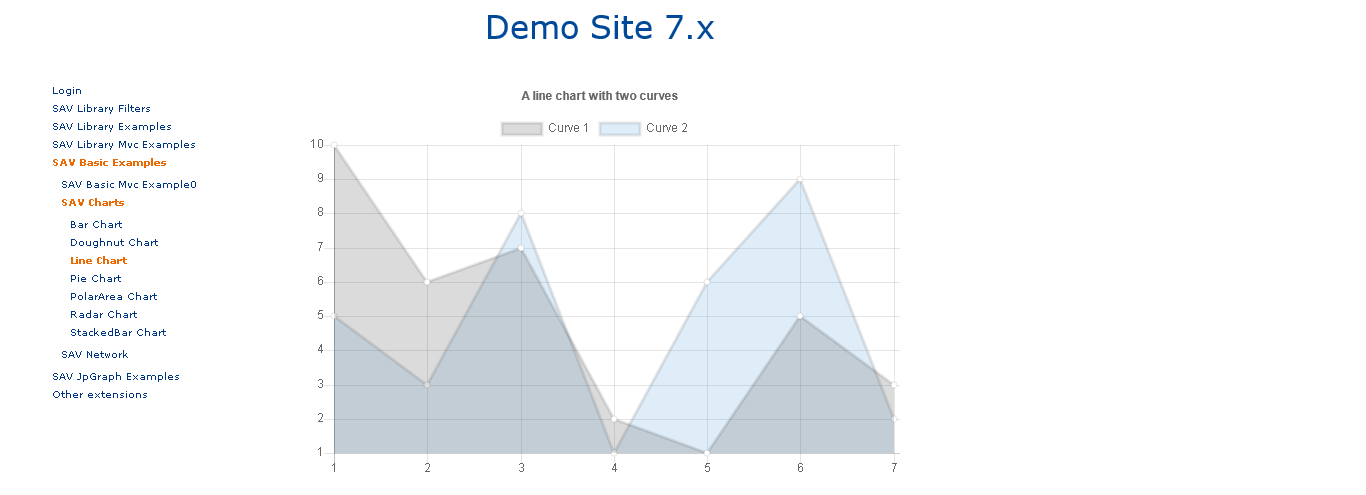

In the marker section, enter the following code, save and go to the frontend.
<marker id="title">A line chart with two curves</marker>
<marker id="labelSet0">Curve 1</marker>
<marker id="labelSet1">Curve 2</marker>
