Running tools

The built-in tools

nr-llm ships forty-one read-only tools and five writing tools. Each is a reference implementation of the security contract: model-chosen arguments are validated and scoped, volumes are capped, and secret-bearing output is either redacted or gated behind a separate _raw variant. Thirty-eight ship enabled; the three unredacted _raw variants (get_env_raw, get_php_info_raw and list_be_users_raw) and all five writing tools (update_page_metadata, set_file_alternative_text, move_content_element, create_content_element_draft, create_translation_draft) ship disabled and must be enabled deliberately. Many require admin; the read-only structure, content and file tools (get_pagetree, get_tca, get_full_tca, get_table_schema, get_flexform_schema, fluid_resolve, search_records, get_page_content, read_records, get_record_history, resolve_url, validate_tca, list_fal_storages, browse_fal_folder, search_fal_files, get_fal_references, find_missing_files) are offered to non-admin backend users — those self-enforce the acting user's TYPO3 permissions (page-show rights, tables_select) inside the tool, so a non-admin only ever sees what the backend already grants them (see ADR-042).

The two tools below are the fullest illustrations of the contract:

fetch_logs

Returns the most recent sys_log entries, newest first, with an optional PSR level filter and a limit (default 20, hard-capped at 50). Personally-identifying fields — the client IP, the backend user id and the serialized payload — are redacted by omission, because the result egresses to the external provider.

read_fal_asset_meta

Returns read-only metadata (file name, MIME type, size, title, alternative text) for a single managed file (sys_file) by its uid. The uid is model-chosen and therefore injection-steerable, so the lookup is storage-scoped (default: the default storage). A uid in a non-permitted storage returns the same neutral "not found or not permitted" string as a missing uid — the model cannot enumerate arbitrary files.

The remaining tools follow the same pattern:

list_fal_storages

The file storages this run may touch (uid, name, driver, status flags). The effective set is the configured allow-list, intersected for non-admins with their file mounts; the server-side base path is never part of the output.

browse_fal_folder

One FAL folder: subfolders (with file count), then files with size and MIME type. Storage-relative identifiers only; anything unresolvable collapses into one neutral denial. Capped at 100 entries.

search_fal_files

Substring search over file name and metadata title/alternative within the accessible storages. %/_ in the query match literally; missing files are excluded.

get_fal_references

Where a file is used: sys_file_reference rows as `table:uid (field)`, hidden references marked. Soft references (RTE links, plain URLs) are not tracked — stated in the output so "no references" is never read as "safe to delete". Non-admins only see references from tables they may read.

find_missing_files

sys_file records whose physical file is gone (missing = 1) — the "broken image" diagnosis. The total count is always reported next to the capped listing.

get_env / get_env_raw

Process environment variables. get_env redacts secret-looking values (password, token, key, secret, salt, DSN, …); get_env_raw returns them unredacted (database password, encryption key) and ships disabled.

get_php_info / get_php_info_raw

PHP runtime configuration. get_php_info is redacted; get_php_info_raw returns the full, secret-bearing phpinfo detail and ships disabled.

get_pagetree

The backend page tree (uid, title, doktype) as a depth-indented outline; deleted and hidden pages are excluded — structure only, no content.

get_tca

The TYPO3 TCA schema: with no argument it lists the configured table names; with a table argument it returns that table's field definitions.

list_be_groups

The backend user groups (uid, title).

list_be_users / list_be_users_raw

Backend users. list_be_users omits credentials (password hashes and MFA secrets are never included); list_be_users_raw returns the full non-credential profile columns and ships disabled.

search_records

Full-text search across the tables that define TCA searchFields. Returns compact table:uid hits with a short excerpt around the match. Credential and nr-llm configuration tables are never searched; non-admins are limited to their tables_select tables and to hits on pages they may show.

get_page_content

One page's header data plus its content elements in column/sorting order (uid, colPos, CType, header, a short bodytext excerpt). Non-admins need page-show permission; only admins see hidden elements (marked [hidden]).

read_records

Generic equality-filtered read of one TCA table — never raw SQL. Fields are validated against the TCA and credential-like columns are silently dropped; the same table gates as search_records apply.

get_record_history

One record's change history from sys_history, newest first: when, which backend user, which action, and per modification the changed fields as old → new values. Values of credential-like fields are never rendered — only the fact that they changed. Same table gates as read_records, and non-admins additionally need page-show access on the record's page.

resolve_url

Map a URL (or path) of this instance to the page that serves it: site, language, page uid/title/slug and route arguments. Routing only — no request is sent; foreign hosts cannot match by construction. Non-admins need page-show permission on the resolved page.

get_typoscript

The resolved frontend TypoScript (setup or constants) effective on a page, with a dotted path drill-down and capped output. Admin-only — constants routinely carry API keys — and credential-like values render as [redacted] on top of that.

get_tsconfig

The rootline-merged Page TSconfig effective on a page, with the same path drill-down, output cap and redaction as get_typoscript. Admin-only.

get_last_exception

The newest exception/error from the TYPO3 file logs with its parsed stack trace and the surrounding source lines of the project frames inlined. index steps back through older errors, search filters by message, class or component. Admin-only.

read_source

A line-numbered range of one project source file. Paths must resolve inside the project root; dotfiles, var/* (except var/log), config/system, settings.php/additional.php, key material and credential paths are structurally unreadable. Admin-only.

search_code

Literal-substring (or opt-in regex) search across the project's source files, returning path:line hits. Vendor, var and dot directories are never searched; matched credential lines are value-redacted. Admin-only.

probe_url

One GET against a URL of this instance: status, key headers, timing and a short body excerpt — and on a 5xx the matching exception from the TYPO3 logs is appended automatically. Foreign hosts and non-http(s) schemes are denied; redirects are reported, not followed. Admin-only.

get_full_tca

The TCA index: the names and titles of all accessible tables, each with a pointer to get_table_schema. A navigation aid so the model can traverse the schema without the whole (multi-megabyte) TCA being sent at once. The same table gates as get_table_schema apply. Optional filter and extension narrow the list.

get_table_schema

One table's schema in a readable form: control settings plus, per field, its type and — for relational fields — the foreign table and relation kind (the value over get_tca). Sensitive tables are denied for every user; credential-like columns show name and type only.

get_flexform_schema

The data structure of a TCA FlexForm field, rendered as sheets and fields. When the field selects one of several structures by a pointer, the available keys are listed so a follow-up call can pass ds_pointer. Same table gates as get_table_schema.

fluid_resolve

Which physical Fluid file backs a template, partial or layout name in an extension: the candidate paths in override order with an exists flag and the winning path — to debug a wrong or missing template. Paths only. (Resolves an extension's own Resources/Private paths; TypoScript override root paths need a live rendering context and are not reflected.)

validate_tca

Structural TCA checks: ctrl.label/ctrl.type naming undefined columns, foreign_table references to unknown tables, showitem entries referencing undefined columns or palettes. One table or all accessible tables; findings name schema keys, never record data.

check_typoscript

Scans the TypoScript effective on a page (constants and setup) for syntax errors — invalid lines, unbalanced braces, @import matching no file — using the same core scanner as the backend's TypoScript module. Reports source and line number only, never the offending line's content (a constants line may carry an API key). Admin-only.

list_extensions

The installed (active) extensions: key, version, composer name and title — no package paths. Admin-only.

get_site_config

Without arguments the configured sites (identifier, base, root page); with identifier that site's configuration flattened to dotted key: value lines. Credential-like keys (camelCase included, e.g. apiKey) render as [redacted]. Admin-only.

list_scheduler_tasks

The scheduler tasks with next execution, disabled flag and a last-run-failed marker. The serialized task object is never unserialized; degrades gracefully when EXT:scheduler is absent. Admin-only.

get_system_status

One compact block: TYPO3/PHP/database versions, application context, composer mode, OS family, timezone — no paths, no hostnames. Admin-only.

list_deprecations

The newest distinct messages from the deprecation log, deduplicated with a ×count suffix and project paths relativized — the upgrade work list. Admin-only.

list_middlewares

A PSR-15 middleware stack (frontend or backend) in execution order with identifiers and classes. Admin-only.

site_rag_query

Curated evidence about the website's own public content for a question: source id, title, URL and match excerpt per source, retrieved from the best available search index — EXT:solr, ke_search, indexed_search or a database fallback — and labelled with the answering backend (ADR-049). Index-level filtering is always public-only (what the anonymous visitor could read).

site_fetch_source

The full indexed text behind a site_rag_query source id, capped at 8000 characters — for reading a promising source beyond its excerpt.

The writing tools

Five tools change anything at all: update_page_metadata, set_file_alternative_text, move_content_element, create_content_element_draft and create_translation_draft. All five write through the TYPO3 DataHandler, as the acting backend user, in the live workspace only, on exactly one record per call (ADR-135, ADR-146).

What holds for all of them:

• They ship disabled, sit in their own editing group, and are not offered until both the group and the tool are enabled.
• Every call pauses for a human decision (ADR-134). The approval card names the record and the values, together with the values the write would REPLACE (ADR-136); nothing is written until somebody presses Approve, and the approver must themselves be permitted to run the tool (ADR-133).
• Permissions are enforced twice: the tool checks the acting user's own rights first, and the DataHandler enforces its own rules on top. A non-admin therefore writes only what the backend already lets them write.
• A field the user lacks the "exclude field" grant for is dropped by the DataHandler without an error. Every one of them re-reads the record afterwards and reports that as a failure rather than as a successful write.
• A call the tool would refuse is refused whole rather than applied in part, and a record the acting user may not reach is refused with the same words as a record that does not exist — so a refusal never confirms that a uid exists.

update_page_metadata

Sets a fixed set of descriptive fields on one page. Editable: title, subtitle, nav_title, abstract, description, keywords and — when EXT:seo is installed — seo_title, og_title, og_description, twitter_title, twitter_description. Anything else (slug, hidden, doktype, fe_group, perms_*, no_index, the image relations …) is refused. Authorised by the acting user's page-edit right; the DataHandler then enforces tables_modify and the field-level grants.

set_file_alternative_text

Sets the alternative text (sys_file_metadata.alternative) of one managed file, identified by its sys_file uid — the accessibility gap an editor most often leaves behind. It writes that one field and nothing else.

Authorised by the same storage allow-list and file mounts as the read-only FAL tools; core's own file-metadata permission check (a writable file mount) then applies inside the DataHandler, so a read-only mount is refused there.

Two limits worth knowing before enabling it:

• It never creates a metadata record. A file that carries none is refused, in the same words as a file the user may not reach — so the model cannot tell "not yours" from "not indexed".
• It writes the live, default-language record only and takes no language argument. A translation, and a draft version of the same record in a workspace, are both left alone. Translated alternative texts stay a backend job (ADR-135).

An empty string is accepted and is the correct value for a decorative image.

move_content_element

Moves one content element to a page and a column. The element keeps its uid, its content, its language, its history and its references — only its place changes, which is what makes it the least committal write in the set.

Both ends are authorised: the acting user needs content-edit rights on the source page as well as on the target, because moving an element out of a page edits that page's content too. An after_content_uid anchor must sit on the target page and in the same language; a wrong anchor is refused rather than silently corrected.

The destination column is always stated explicitly on the wire, so the element lands where the approval card said it would even when the anchor element sits in a column the caller did not expect.

create_content_element_draft

Creates one content element on a page — the first tool that brings a record into being. Three things bound it:

• It is always hidden. There is no argument to switch that off: publishing is a separate act with a separate audience, and the approval that let the tool run approved a draft.
• The content type is an allow-list (header, text, textmedia, bullets) intersected with what the installation's TCA actually declares. Types whose payload is configuration rather than prose — list (a plugin), html, shortcut — are out of reach.
• The field set is fixed: headline, body text, column, language, position. This is not a generic record API.

bodytext reaches the DataHandler and its RTE transformation exactly as an editor's input does. It is bounded in length and not otherwise filtered — an editor may write the same markup by hand, and a tool enforcing a stricter rule than the CMS would be enforcing a rule that does not exist.

create_translation_draft

Translates one page or content element into another language by running core's own localize command, so connected-mode translations, inline children and every localisation hook behave exactly as they do in the backend.

The result is hidden, which is the part core does not do: localize copies the source's visibility, so a translation of a live page would go live the moment it was created.

An existing translation stops the call and is named in the refusal. The overwrite argument is the only way past it: it deletes that translation first — recoverably (deleted = 1) and in sys_log — and the approval card says so on its own line. Whether the target language exists for the record's site is core's check, not a second implementation here.

Registering a tool

A tool is a PHP class that implements Netresearch\NrLlm\Service\Tool\ToolInterface:

getSpec(): ToolSpec

Returns the declaration the model receives — a name, a description, and a JSON-Schema parameters block. Build it with ToolSpec::function($name, $description, $parameters).

execute(array $arguments): string

Runs the tool with the model-provided arguments and returns a plain string that is fed back into the conversation as a tool turn.

getGroup(): string

The tool's group — a short, stable identifier used to enable or disable whole families of tools at once. Built-ins use content, editing, structure, system, accounts and configuration; third-party tools declare their own group (recommended: the providing extension's key). See Tool groups.

The interface carries #[AutoconfigureTag('nr_llm.tool')], so a class is auto-registered simply by implementing it — no central registration file to edit. ToolRegistry collects every tagged tool through a DI iterator and indexes it by spec name; two tools with the same name is a developer error and fails fast at container build.

When you write a tool, honour the security contract: treat $arguments as attacker-influenced (the model is steerable by injected skill prose), validate and scope every input (cap volumes, scope identifier lookups), and never return secrets — the result leaves the instance.

Managing tools

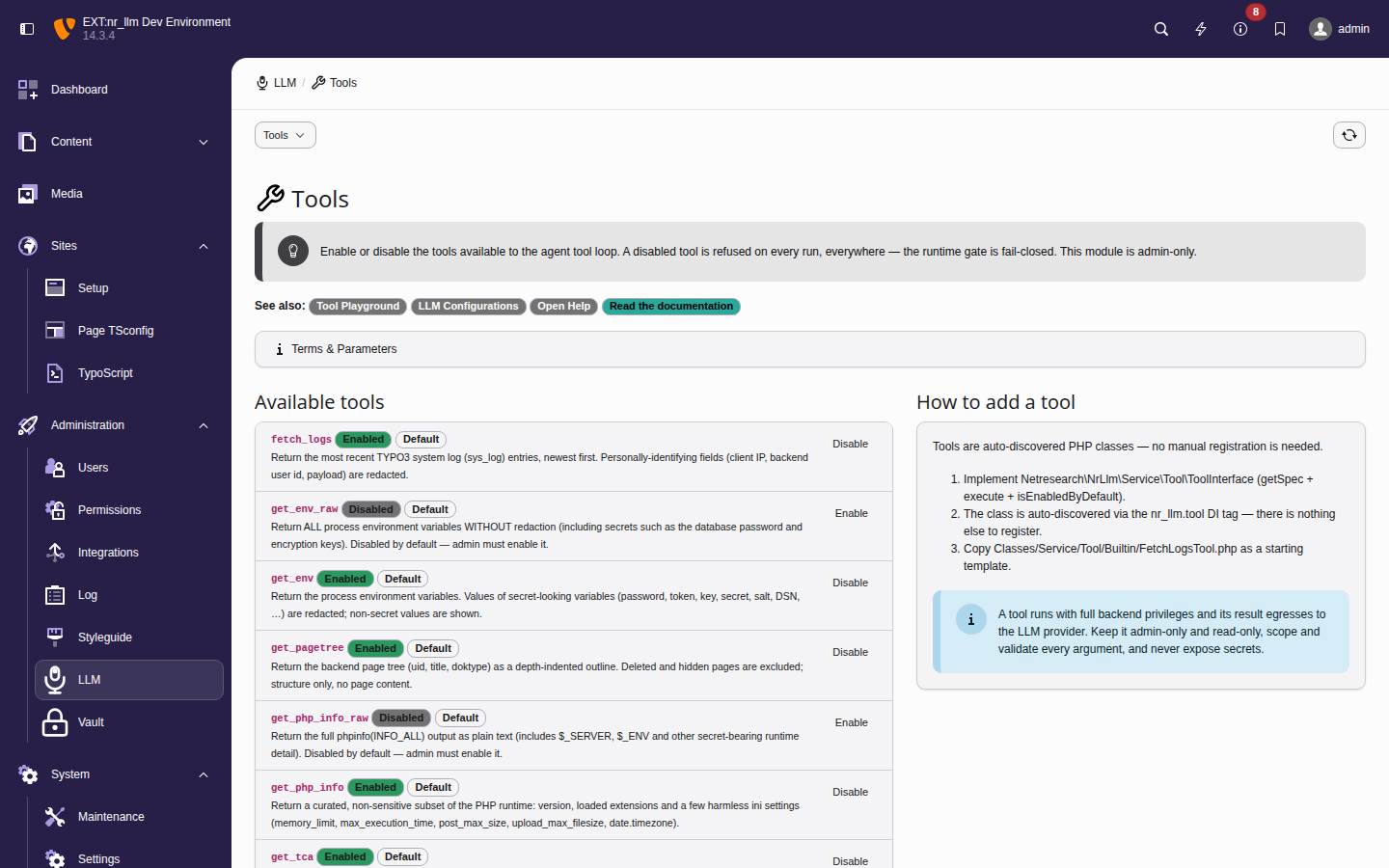

The Admin Tools > LLM > Tools module lists every registered tool with its global enable state and lets an admin toggle it. A disabled tool is refused on every run, everywhere — the runtime gate is fail-closed, so a disabled tool can never be offered to the model regardless of a skill's allowed-tools or the per-run selection in the playground. Some built-in tools (for example get_env_raw and get_php_info_raw) ship disabled by default because they return unredacted, secret-bearing output; enable them only deliberately.

A tool that carries an editor action declaration (ADR-152) reads differently in that list: it shows an icon, its translated name, one sentence written for a human, and the record types it addresses — instead of the wire name and the description written for the language model. All five writing tools declare one, and the wire name stays visible as the technical detail the toggle acts on. A read-only tool is unchanged.

The declaration is presentation only. It does not decide whether a tool writes — that is the tool's declared effect — and it changes nothing about how a call is fenced, approved or audited.

Tool groups

Every tool belongs to a group (its getGroup() value). The built-in groups carry a translated name in the module header beside their identifier; a group a third-party extension brings has no translated name and shows its identifier alone. The built-in taxonomy:

Groups can be switched on three levels, and the result cascades fail-closed — a tool is offered only when every level permits it:

1. Centrally in the Tools module: each group header carries an Enable/Disable group toggle. A disabled group refuses all of its tools — including same-group tools installed later — and a per-tool override can not re-enable a tool inside a disabled group (predictable, fail-closed). Per-tool toggles keep working but take effect only once the group is enabled again.
2. Per configuration: the Allowed tool groups field on an LLM configuration restricts agent runs with that configuration to tools of the selected groups (empty = all groups). This intersects with a skill's allowed-tools declaration.
3. Per run in the playground: the tool checkboxes are grouped, and each group checkbox (de)selects its children.

Third-party extensions declare their own group per tool; the recommended value is the extension key, so an admin can disable an extension's whole tool family with one toggle. The design is recorded in ADR-043.

Network egress policy per group

Network egress is governed per tool group and is fail-closed (ADR-061). Each group has a declared egress scope; a group with no declaration may make no outbound request:

Only the system group (which carries probe_url, the one built-in that fetches over the network) is granted own_site; every other group is none. There is no "any host" scope, so a newly installed or mis-declared tool group can never egress to an arbitrary target. The diagnostics tools that share the system group (get_env, fetch_logs …) never make a network request, so the grant does not loosen them.

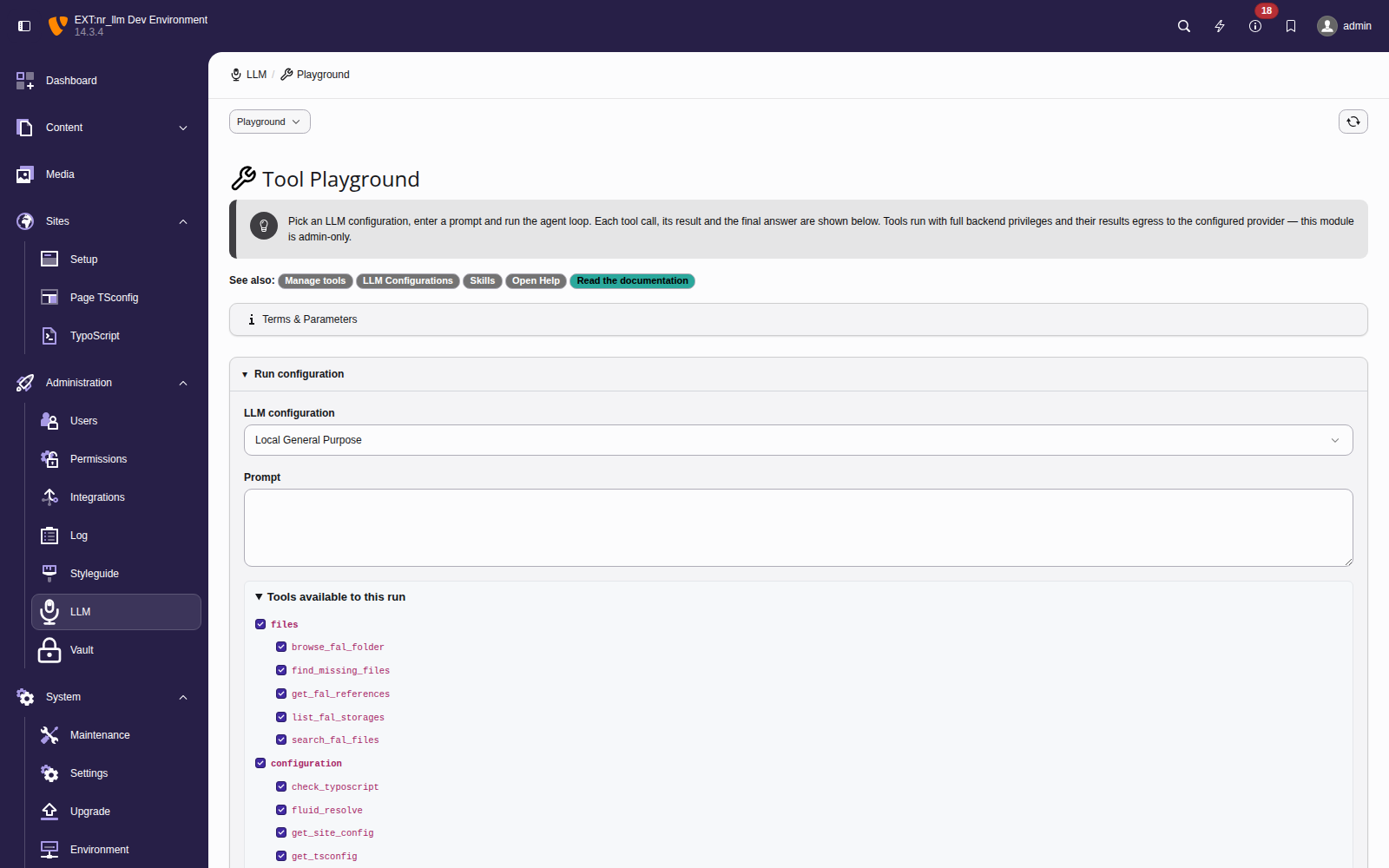

Using the Tool Playground

The playground lives in Admin Tools > LLM > Playground and is admin-only. It is a sibling of the Tools management module: the playground runs the loop, while the Tools module governs which tools exist and are enabled.

1. Pick an LLM configuration from the dropdown. Its vault-stored API key, model, temperature and system prompt are what the loop actually runs on — the playground never falls back to a default model.
2. Type a prompt. Optionally open the override panels to force-inject skills (added on top of the configuration's own), force-add snippets (inserted as leading system messages), override the system prompt, cap the max rounds, or tick capture raw provider response.
3. Click Run — or Dry run to assemble the prompt and inspect exactly what would be sent without calling the model.

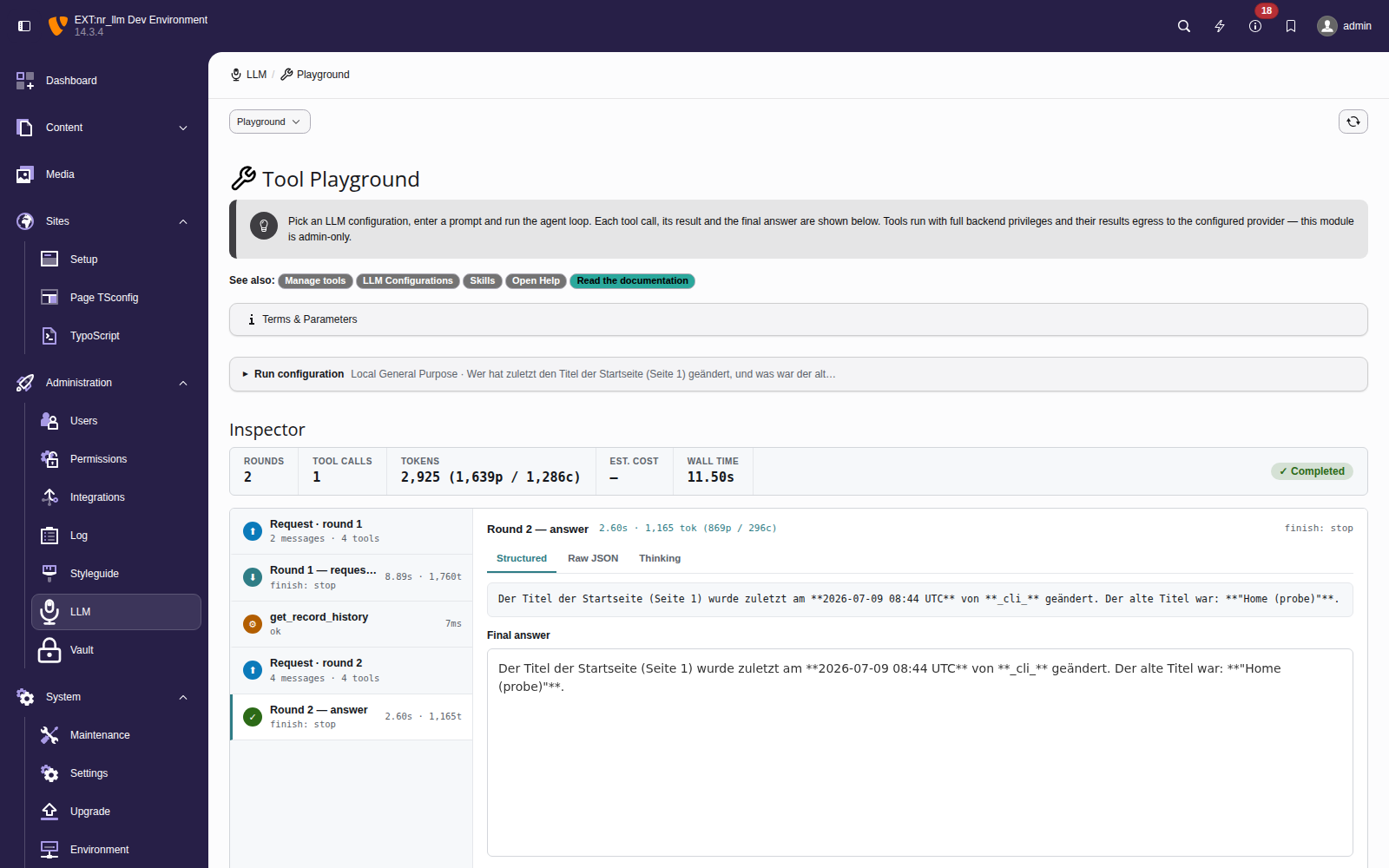

4. Read the inspector — live from the moment you click Run. A summary strip reports rounds, tool calls, the prompt/completion token split, estimated cost, wall time and status. The step list is the nr_llm ↔ LLM dialog in order: each round opens with a Context budget step, then its outbound request (the messages sent and the tools offered) appears the instant it goes out, a waiting indicator shows while the model works, then the response and each tool execution stream in. Select a step to open its detail — requests carry Messages sent and Tools offered; responses carry Structured, Raw JSON and Thinking. The model's final answer closes the run.

5. The Context budget step says where the window went for the round that follows it, so you can act on the component that is yours to change rather than only learn that history was dropped. It has two tabs:

   Where the window went

   The window, the output reserve, the safety margin and the resulting budget, then four component lines — transcript, tool schema, system prompt (incl. snippets) and skills — that sum to the estimated total, plus what is left. On this surface the system-prompt line always reads counted in the transcript and the skills line always reads 0: the agent loop builds both into the transcript before the fit measures it, so their content is already on the transcript line. The table says so under the figures. A send whose reserve exceeds the whole window is handed to the provider unmeasured, and the step reports no accounting instead of a window of zero.

   Injected context

   Every snippet and skill this run injects, by name only, with the data class it declared (ADR-144) or not classified, and the strictest class across all of them. The list covers the snippets and skills you force-injected for this one run as well as the configuration's own — the input-context gate itself still answers for the configuration alone, so a forced source is shown here and is not gated.

The Tools available to this run list lets you narrow a single run to a subset of the globally-enabled tools (the full list and the global enable/disable controls live in the Tools module). Raw-response capture is off unless you tick it, so ordinary runs never retain the provider's raw payload. Every displayed string — tool arguments, tool results (which may include sys_log content), and the final answer — is rendered escaped; HTML is only ever shown inside a sandboxed preview, never injected into the page.

Each run is bounded by the iteration cap (default 5) and, when the configuration's backend user has a budget, by the per-iteration budget pre-flight. If the cap is hit with tools still pending, a final tool-free completion synthesises a closing answer and the run is marked truncated. The aggregated token usage is reported; the monetary cost is recorded in the usage table by the middleware pipeline.

Ollama model-capability dependency

Tool calling depends on the model, not just the provider. For Ollama, only function-calling-capable models — for example llama3.1, mistral, qwen2.5 — return tool calls. A model without function-calling support simply answers the prompt directly and never calls a tool; the loop ends gracefully on the first plain answer. If a configured Ollama model never seems to use the available tools, verify it is one of the function-calling models for your Ollama version.

Gating tools with allowed-tools in a skill

A skill's SKILL.md front-matter may carry an allowed-tools key that gates which tools the skills attached to a configuration (or task) grant for a run. The resolution is fail-closed on declaration, computed over the configuration's effective skills (enabled, non-orphaned, at or above the instance trust floor, deduped):

• Absent (no skill declares allowed-tools) — no opinion; all registered tools are offered.
• Declared list — the union of the declared lists across the effective skills; only those tools are offered (intersected with what is actually registered, so an unknown name is dropped).
• Declared empty (allowed-tools: []) — declares zero tools; if no other effective skill widens the set, the run gets no tools and is a single plain completion.

A disabled or orphaned skill never grants tools. The allow-list is enforced both when the tools are offered to the model and again when a tool call is executed, so a prompt injection cannot reach a tool the skills did not grant.

The effective set is not the same as what ends up in the prompt. The skill-block byte budget (skills.maxBytes, see Managing skills) is applied after the allow-list has been computed, while the block is assembled. A skill dropped for the budget therefore still contributes its allowed-tools, but its usage rules never reach the model. That order is deliberate: a budget-aware union would let the drop of the last declaring skill collapse the allow-list to "no restriction" — every registered tool — which is a looser gate, not a tighter one. Keep skills.maxBytes above the composed size of the skills you rely on if you want their prose to arrive alongside the tools it describes; every drop is logged as a warning.

See ADR-038 for the runtime design and security rationale.
