First steps

In this tutorial, we will create a simple content element with a title, a description and some images. Later we also enable the DCE Container feature.


First, you need to login to TYPO3 backend with administrator privileges. Those are required to create or edit DCEs. Content elements made by DCE can be used with regular editor privileges.

You’ll find DCE under “Admin Tools” in the main menu. It shows you a list of all DCEs existing in the database:

The DCE Backend Module


DCEs are stored on root level (pid=0). You can also access DCEs in list view. DCE fields are not displayed directly.

Create your first DCE

Click the button “Create new DCE” and enter the title of your new dynamic content element. For example: “Teaser”.

Also, we set the identifier to “teaser”. Later this will be prefixed with “dce_” and used as CType of this new content element.

Now create a new field, keep the default type “Element” and enter “Title” as field title. Set variable to “title”.


Variable names for DCE fields have to be written in lowerCamelCase!

As configuration we choose the option “Simple input field” from the dropdown above the code editor. It pastes a sample configuration with commonly used settings. You should get this output:

New DCE with a single input field named "Title"

Now, add another new field with the title “Description” and “description” as the variable name. As configuration we use “RTE” from the dropdown box.

Helpful dropdown, with templates of the most common TCA configurations.

Next, create the last field with the title “Images” and the variable name “images”. As configuration we use “File Abstraction Layer (recommended)” of the type “Inline”. The configuration of a FAL media field is pretty complex, but you also find options like minimum and maximum of images, or which file types should be allowed.

Save the changes. You should see the structure of your first DCE:

Your first DCE

Now, when you clear the system caches, you can already use the content element on your pages:

New content element based on your first DCE

Frontend Templating

Let’s return to your Teaser DCE and switch to tab “Template”. You see a default template, which will be output in frontend for each instance (content element) of this DCE.

The inline template editor, with the DCE default frontend template

In this editor, you can define what TYPO3 should display, right in place. You can also load template files if you want.

The dropdown above the template field shows different items you can choose from. It displays the fields you have defined and some other very helpful stuff:

Helpful dropdown contents, to build your content element templates

Now, we build the frontend output that we want, for each content element based on this DCE. The template engine here is Fluid:

<div class="dce">
    <f:for each="{field.images}" as="image" iteration="iterator">
        <f:image image="{image}" alt="{field.title}" width="100" />

We use variables pointing to the fields we’ve defined before, e.g. {field.title}.

When you want to output HTML, you need to use format.html view helper of Fluid. You can use it like in the example above, or inline: {field.description -> f:format.html()}. Also, we use the for view helper in Fluid to iterate over {field.images}. It’s an array of FileReferences, which can get directly passed to the image view helper.

When we save the DCE, clear the system caches (!) and create a new content element based on this DCE, we see this output (in backend and frontend):

Content element with filled fields (backend) Output of this content element, based on previously written Fluid template (frontend)

The Backend View

So far we have defined the fields of our content element and the frontend output. But how is the content element displayed in the backend?

Default output of a DCE content element in the page module (TYPO3 backend)

Well okay, it displays the title of the DCE we have defined. But we do not see any differences when we have two of these content elements on the same page. Let’s change this, by configuring the Simple backend view in Backend Template tab.

The Simple Backend View configuration

Here you can define which (single) field should be displayed as header (and label in list view). And which fields should also get displayed in bodytext. When we choose all options from bodytext field (but DCE title), we get more info about our content element instances:

Output of content element in page module, with configured fields (Simple Backend View)

This saves much time and helps you to build fast new content elements.


The size of the images displayed in Simple Backend View and the crop limit of long text is configurable via PageTS.

DCE Container

Until now, you know the very basics of how DCE works. Let’s use a more intermediate feature as of the last step in this tutorial, which is potentially helpful for you: DCE Container

First, let’s see the output of our content elements in the HTML source code of frontend output. We have placed two content elements on a page:

HTML source code of two content elements in frontend output (based on DCE)

When we compare this HTML source with the Fluid template from above, we will see our code, with filled placeholders. Each content element is wrapped with <div class="dce"></div>, because we have defined it in our template.

DCE Containers help you to wrap all those standalone elements with a custom container template. First, you need to enable the feature:

Settings and template for DCE container

Just by enabling the feature (and clearing the caches) we see an instant effect in HTML output:

Enabled DCE container template output

We see two wraps:

  • dce-container This comes from the container template itself
  • tx-dce-container This is because we use the DefaultContainer Fluid layout (which is optional)

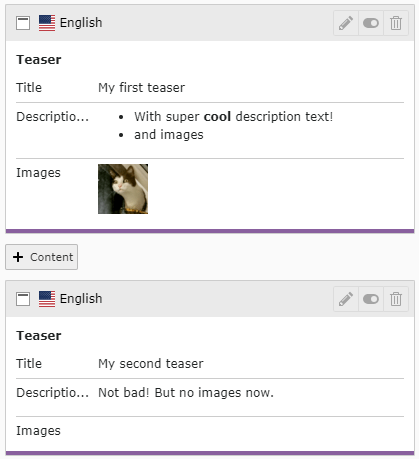

Also, the backend view has been upgraded, it displays a color (calculated based on uid of the first element in the container):

DCE container colors in Simple Backend View


DCE container is no replacement for EXT:gridelements! Because the container is just generated by convention and logic, it has no physical instance which can have its own properties.

What’s next?

Congratulations! You know how to create a first content element in DCE.

Check out the next section in the documentation Users manual to get an overview of the options and possibilities DCE gives you.

Have fun! And when you have questions, check out the Support section :)
