Entering and structuring TypoScript templates

At its most basic, TypoScript is entered manually in both the "Constants" and "Setup" fields of template records (which are stored in the database in table "sys_template").

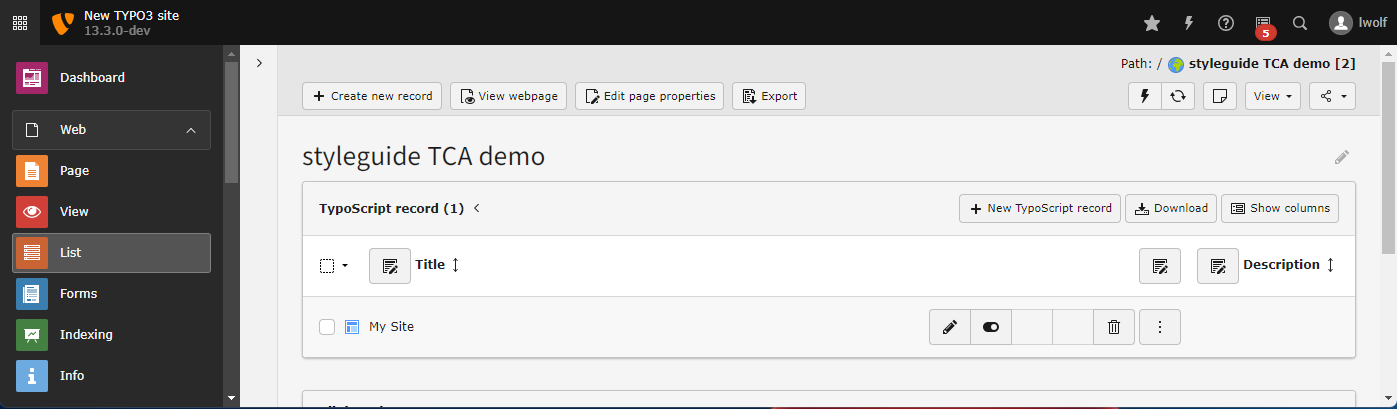

A TypoScript template as seen in the Web > List module.

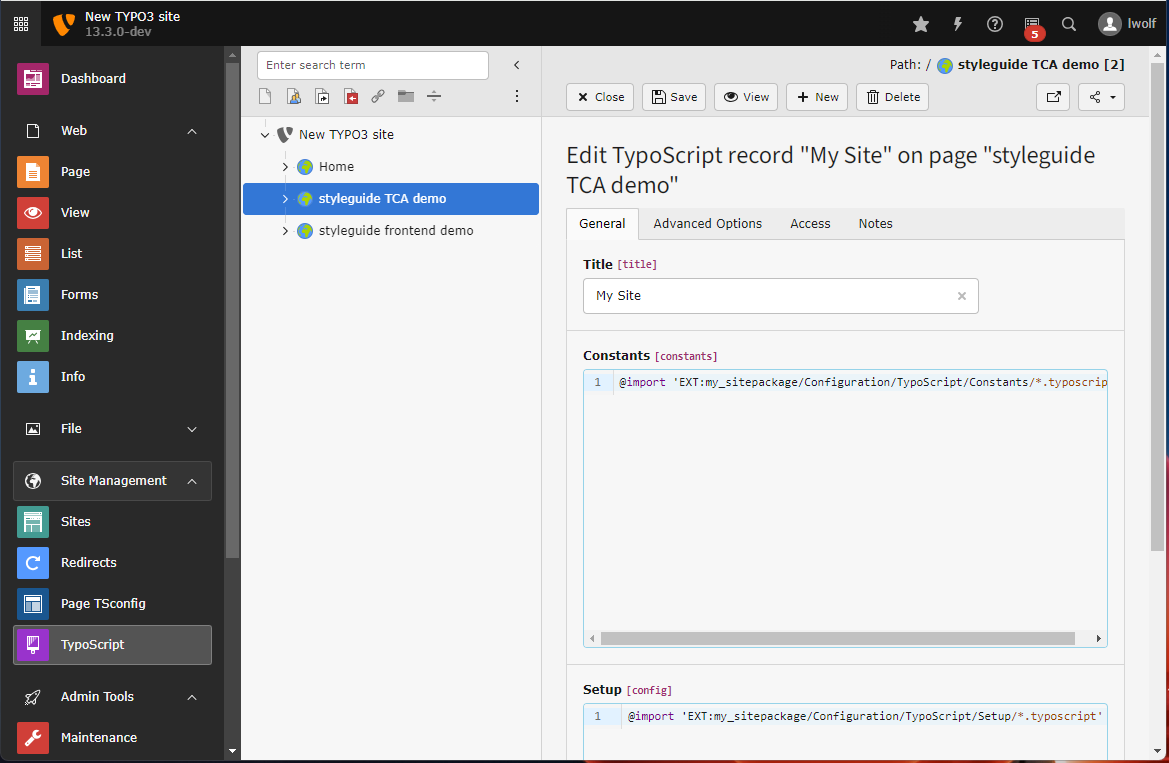

The Constants and Setup fields of a TypoScript template

If the "t3editor" system extension is not installed or has been disabled via configuration options, the "Constants" and "Setup" fields will be just normal multi-line text fields.

The Constants and Setup fields without the t3editor enabled

Inclusions

In both the "Constants" and "Setup" fields, the INCLUDE_TYPOSCRIPT syntax can be used to include TypoScript contained inside simple text files.

Apart from this, it is also possible to include other TypoScript templates records (in the field called "Include Basis Template") and TypoScript provided by extensions (in the field called "Include static (from extension)").

Templates included from another template

Obviously included templates can themselves include other templates.

Template Analyzer

With all those inclusions, it may happen that you lose the overview of your template structure. The "Template Analyzer" is there to help. It shows all the templates that apply on any given page, taking into account inclusions and inheritance along the page tree.

All templates applying to a page, as used by the Introduction Package

Templates are taken into consideration from top to bottom, which means that properties defined in one template may be overridden in templates considered at a later point by the TypoScript parser.

In the Template Analyzer, you can click on any listed template to view the content of its "Setup" and "Constants" fields.

Viewing the content of a given template in the Template Analyzer

The line numbers are compiled from the first template to be included, which is why the numbers are so high.
