Implementing the domain model

With the implementation of the domain there are two different approaches to: From top to bottom or from the bottom to the top. In the first case you start with those concepts, which include other or control them in the broadest sense. In our example the organization comes into account, the contact name, address, quotes, etc. "contains". In the second case, one starts with the basic concepts, such as the age range, address or region. The decision affects one of the two variants are on the way, how tests are written for the individual sections of the code. Ultimately, this is a matter of taste. We opted for the approach from top to bottom.

So we begin with the concept of organization. The file containing the class definition we put into the folder EXT:sjr_offers/Classes/Domain/Model/ and rename it according to the last part of the class name: Organization.php.

Note

Using the abbreviation EXT: we cut off the part of the path that leads to the extension folder. For more information on possible locations of the extension folder, see Chapter 4

Note

At this point in the development process, we find ourselves facing a fundamental decision: Should we develop our code secure by testing (using the method of test-driven development), or should we test only the final result? We know that the entry is in the method of test-driven development is a barrier. However, it is worthwhile to take the step because you will notice that you can increase your efficiency with TDD and save yourself a lot of frustrating experiences (eg in the painful search for an error). More information about the test-driven development, see chapter Chapter 2 in the section "Test-Driven Development". If you still decide to test only at the end, you can create the cycles of test development and skip the class in a train. We have cautioned, however.

First, we create the corresponding test class in the appropriate folder MyVendorSjrOffersDomainModelOrganizationTest EXT: sjr_offers/Tests /Domain /Model/. After that we write our test.

class OrganizationTest extends \TYPO3\CMS\Core\Tests\BaseTestCase
{

   /**
    * @test
    */
   public function anInstanceOfTheOrganizationCanBeConstructed()
   {
      $organization = new \MyVendor\SjrOffers\Domain\Model\Organization('Name');
      $this->assertEquals('Name', $organization->getName());
   }
}

Note

In the folder Tests you can select the folder structure freely. We, however, we recommend you to build the same structure as in classes. With an increasing number of unit tests you will be able to remain focused.

Note that our test class \MyVendor\SjrOffers\Domain\Model\OrganizationTest extends the class \TYPO3\CMS\Core\Tests\BaseTestCase of Extbase. Among other things, this class initializes the autoloader, which makes the inclusion of the class files require_once() obsolete.

Remarkable is the remarkably long method name. Method names of this kind are typical for Unit-Tests, because these names could be transformed into readable sentences. So please formulate the method name so that it describes, which result demonstrates a successful test. It gives you one (always current) documentation of the functionality of your extension. The test is not able to run because the appropriate class and its method getName() note yet exist. So we create first a minimum trunk of the class and its methods.

<?php
namespace MyVendor\SjrOffers\Domain\Model;

class Organization
{
   public function getName()
   {

   }
}

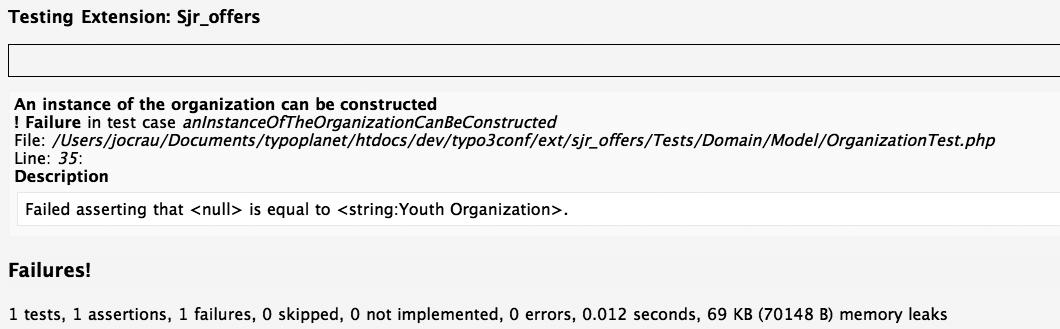

The test is now able to run, but failed as expected (see Figure 5-5).

../_images/figure-5-5.jpg

Figure 5-5: message of the failed first test run

Only now we add just enough code that the test is successful:

<?php

namespace MyVendor\SjrOffers\Domain\Model;

use TYPO3\CMS\Extbase\DomainObject\AbstractEntity;

class Organization extends AbstractEntity
{

   /**
    * @var string The name of the organization
    */
   protected $name;

   /**
    * Constructor
    */
   public function __construct($name)
   {
      $this->name = $name;
   }

   /**
    * Get the name of the organization
    */
   public function getName()
   {
      return $this->name;
   }
}

Currently, the name can only be set during the instantiation of the class, because only at this moment the Constructor __construct() is called. Because it should be possible at a later moment to change the name, we introduce a public method setName($name) with the according test. Note also that we have slightly modified the code in the constructor. We now use instead of the direct $this->name = $name the respective Setter. In the comment about the definition of property $name, the type of property is specified. In our case the name of the String. Thereby our class looks like as follows:

<?php
namespace MyVendor\SjrOffers\Domain\Model;

use TYPO3\CMS\Extbase\DomainObject\AbstractEntity;

class Organization extends AbstractEntity
{

   /**
    * @var string The name of the organization
    */
   protected $name;

   /**
    * Constructor
    */
   public function __construct($name)
   {
      $this->setName($name);
   }

   /**
    * Set the name of the organization
    */
   public function setName($name)
   {
      $this->name = $name;
   }

   /**
    * Get the name of the organization
    */
   public function getName()
   {
      return $this->name;
   }
}

Now we implement step by step the class \MyVendor\SjrOffers\Domain\Model\Organization – always protected by our tests. Here we meet the requirement that there can be multiple contact persons. We want to keep ready in the capacity of contacts. So we set there a \TYPO3\CMS\Extbase\Persistence\ObjectStorage, which later takes the instances of the class \MyVendor\SjrOffers\Domain\Model\Person (or more precisely, the references to instances).

But the test at first:

/**
 * @test
 */
public function theContactsAreInitializedAsEmptyObjectStorage()
{
   $organization = new \MyVendor\SjrOffers\Domain\Model\Organization('Youth Organization');
   $this->assertEquals('\TYPO3\CMS\Extbase\Persistence\ObjectStorage',
   get_class($organization->getContacts()));
   $this->assertEquals(0, count($organization->getContacts()));
}

The contact person should be an instance of the class \MyVendor\SjrOffers\Domain\Model\Person. Since this class does not exist, one could make the next working to implement them. Thus we would probably get bogged down and jump from one class to the other. When writing unit tests can be upheld in so-called Mocks back. A mock is an object that can behave as if it were another. To "mock" an objects means to create a replacement object in targeted areas which will behave like the target object. Lets take a look at the test as an example:

/**
 * @test
 */
public function aContactCanBeAdded()
{
   $organization = new \MyVendor\SjrOffers\Domain\Model\Organization('Youth Organization');
   $mockContact = $this->getMock('\MyVendor\SjrOffers\Domain\Model\Person');
   $organization->addContact($mockContact);
   $this->assertTrue($organization->getContacts()->contains($mockContact));
}

The variable $mockContact contains the object, which behaves like an instance of the class \MyVendor\SjrOffers\Domain\Model\Person. Because of this we can now use the two methods addContact() and implement getContacts():

/**
 * The contacts of the organization
 *
 * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\Person>
 */
protected $contacts;

/**
 * Adds a contact to the organization
 *
 * @param \MyVendor\SjrOffers\Domain\Model\Person The contact to be added
 * @return void
 */
public function addContact(\MyVendor\SjrOffers\Domain\Model\Person $contact)
{
   $this->contacts->attach($contact);
}

/**
 * Returns the contacts of the organization
 *
 * @return \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\Person> The contacts of the organization
 */
public function getContacts()
{
   return clone $this->contacts;
}

The comment about the definition of property is $contacts of crucial importance. Extbase "reads" the comment and concludes of it, that an ObjectStorage should be created and from which class the objects should which are in it included (also see chapter 3). Omission of this information would lead to a PHP exception: »Could not determine the type of the contained objects«.

Another special feature is the key word clone. With clone the method getContacts() clones the ObjectStorage before returning to the caller. Cloning causes that the objects are copied within the ObjectStorage and the reference to the original contacts is deleted. This is necessary because the caller does not know that it gets delivered an ObjectStorage instead of a PHP array. Would the caller manipulate now the containing objects without using the keyword clone, he would change the original data by accident.

In this section you could use the procedure for Test-Driven Development to meet. If you use in your development practice this procedure, you will be rewarded with a good feeling, to write code which is always functional - or at least compliant as expected. In English, one can use the expression »green bar feeling« (see figure 5-6). In the course we will not explicitly deal with the testing. But we use it always in the background.

../_images/figure-5-6.jpg

Figure 5-6: By the test-driven development there is a residual »Green-Bar-Feeling«.

Implementing relationships between domain objects

Extbase supports three different types of hierarchical relationship between domain objects.

1:1-relationship An offer has in our case, exactly one period in which it is valid. The object Offer gets therefore a property dateRange, that is exactly referenced one time to the object DateRange.

1:n-relationship An organization can have multiple contacts. The object Organization therefore gets the property contacts that refers to any number of Contact objects.

m:n-relationship An offer on the one hand could be assigned to different categories. On the other hand, offers could be assigned to one category. Therefore receives the Offer object categories as a property.

Note

In addition to these relations an n: 1 relationship is often used: A company has a representative, a representative can work for several companies. In Extbase such a relationship is always mapped by an m: n relationship in which the number of child objects (agents) from the perspective of a parent object (enterprise) is limited to just one.

In a 1:1 relationship set and get methods are implemented. At the polyhydric 1:n and m:n relationships the add and remove methods are added.

setContacts(\TYPO3\CMS\Extbase\Persistence\ObjectStorage $contacts)
getContacts()
addContact(\MyVendor\SjrOffers\Domain\Model\Contact $contact)
removeContact(\MyVendor\SjrOffers\Domain\Model\Contact $contact)

Be careful about the subtle differences here. The methods setContacts() and getContacts() refer simultaneously to all contacts. They expect and hence provide an ObjectStorage. The methods addContact() and removeContact() refer to a single Contact-Object that is added to the list or removed from. To extract a single contact from the list, let us first bring all contacts with getContacts() and then draw on the methods of the ObjectStorage to individual contacts.

The property offers, we proceed to the equivalent property contacts. The definition of the property offers includes in the comment two special annotations: @TYPO3\CMS\Extbase\Annotation\ORM\Lazy and @TYPO3\CMS\Extbase\Annotation\ORM\Cascade remove.

/**
 * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\Offer> The offers the organization has to offer
 * @TYPO3\CMS\Extbase\Annotation\ORM\Lazy
 * @TYPO3\CMS\Extbase\Annotation\ORM\Cascade("remove")
 */
protected $offers;

By default Extbase invites all child objects with the parent object (so for example all offers of an organization). This behavior is called Eager-Loading. The annotation @TYPO3\CMS\Extbase\Annotation\ORM\Lazy causes Extbase to load the objects and build only when they are actually needed (lazy loading). This can be an appropriate data structure, e.g. many organizations, each with very many offers, that lead to a significant increase in speed.

Note

Beware, however, against all the properties provided by child objects with @TYPO3\CMS\Extbase\Annotation\ORM\Lazy, because this can lead to frequent loading of child objects. The ensuing, small-scaled database accesses reduces the performance and cause then the exact opposite of what you wanted to achieve with the lazy-loading.

The annotation @TYPO3\CMS\Extbase\Annotation\ORM\Cascade("remove") causes if the organization is deleted, the offers will be also deleted immediately. Extbase leaves usually persist unchanged all child objects.

Besides these two there are a few more annotations available, which will be used in other contexts (e.g. in the controller). The complete list of all by Extbase supported annotations, see the index.

So far, the impression may arise that domain models consist only of setters and getters. The domain objects, however, contain the main part of the business logic. In the following section, we add to our class \MyVendor\SjrOffers\Domain\Model\Organization a small part of this business logic.

Adding business logic to the domain objects

Part in deciding which part of the business logic belongs to a particular domain model, you can be guided by what questions we can ask the domain object in the "real" world. We can ask the organization for the list of all contacts, for example. So we implement a method getAllContacts(). In contrast to the previously implemented method getContacts() this should deliver in addition to these direct contacts of the organization but also provide the contact for all services. For this the organization has to pass through all their offerings and add one if there is a existing contact to the result. This is especially useful for administrators of an organization. The implementation is as follows:

public function getAllContacts()
{
   $contacts = $this->getContacts();
   foreach ($this->getOffers() as $offer) {
      $contact = $offer->getContact();
      if (is_object($contact)) {
         $contacts->attach($contact);
      }
   }
   return $contacts;
}

The organization gets first by using getContacts() their direct contact. Therefore all the offers are iterated with foreach. The query is_object() is necessary because the offer returns NULL if a contact is missing. The contact person of the offer will be added to the ObjectStorage as the variable $contacts. At this point it becomes clear how important is the keyword clone of the method getContacts(). If the ObjectStorage would not have been cloned, we would add all the contacts of the offers of the organization as primary contacts. In addition, we benefit here by a special property of the ObjectStorage: It takes one and the same object only once. If it had not this quality, a person who is assigned to multiple offers, would appear more than once in the list.

Note

Alternatively to the method getAllOffers() in the domain object Organization, you could have also implement a method in an OfferRepository findAllContacts($organization). There it would have been possible to get the offers by a little bit more complex query direct from the database. But we follow the important basic rule of the Domain-Driven Design at this place, which says that a element of an aggregate (the totality of all the terms contained in the organization) should be accessed by the root object (Aggregate-Root). The alternative we choose only, if the iterating through all the offers causes actually a performance problem.

We finish that implementation of the class from \MyVendor\SjrOffers\Domain\Model\Organization and turn to the class \MyVendor\SjrOffers\Domain\Model\Offer. The basic approach here is not fundamentally different from the last. Let's take a look at the (shortened) class which emphasizes some peculiarities.

<?php
namespace MyVendor\SjrOffers\Domain\Model;

use TYPO3\CMS\Extbase\DomainObject\AbstractEntity;

class Offer extends AbstractEntity
{

   /**
    * The organization of the offer
    *
    * @var \MyVendor\SjrOffers\Domain\Model\Organization
    */
   protected $organization;

   protected $title;
   protected $image;
   protected $teaser;
   protected $description;
   protected $services;
   protected $dates;
   protected $venue;

   /**
    * @var \MyVendor\SjrOffers\Domain\Model\AgeRange The age range of the offer.
    */
   protected $ageRange;

   /**
    * @var \MyVendor\SjrOffers\Domain\Model\DateRange The date range of the offer.
    */
   protected $dateRange;

   /**
    * @var \MyVendor\SjrOffers\Domain\Model\AttendanceRange The attendance range.
    */
   protected $attendanceRange;

   /**
    * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\AttendanceFee>
    */
   protected $attendanceFees;

   /**
    * The contact of the offer
    *
    * @var \MyVendor\SjrOffers\Domain\Model\Person
    */
   protected $contact;

   /**
    * The categories the offer is assigned to
    *
    * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\Category>
    */
   protected $categories;

   /**
    * The regions the offer is available
    *
    * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\Region>
    */
   protected $regions;

   /**
    * The title of the offer
    *
    * @param string $title
    */
   public function __construct($title)
   {
      $this->setTitle($title);
      $this->setAttendanceFees(new \TYPO3\CMS\Extbase\Persistence\ObjectStorage);
      $this->setCategories(new \TYPO3\CMS\Extbase\Persistence\ObjectStorage);
      $this->setRegions(new \TYPO3\CMS\Extbase\Persistence\ObjectStorage);
   }
   // Getter and Setter
}

The property organization of the object Offer includes a back reference of the offering organization. We have introduced them to have later a quick access at the collection of all the offers on the organization. Thus, we deviate slightly from the pure "doctrine" from the Domain-Driven Design. This means, among other things, that you access the child object Offer only on the root object Organization (Aggregate Root) should.

Note

The back reference in the form of property organization is similar in some aspects to the foreign key organization in the database table tx_sjroffers_domain_model_offer. This foreign key contains the uid and links the offer-tuple associated with the corresponding tuple from the table tx_sjroffers_domain_model_organization. We use here sent from the fact that the integer value of the uid is converted by Extbase because of the annotation @var MyVendorSjrOffersDomainModelOrganization into the corresponding object Organization.

The properties ageRange, dateRange and attendanceRange contains the objects of the type RangeConstraint. These classes we have to create at first and had created mocks for the in our tests.

Then we add the class to the necessary getters and setters. Even class internally it is advisable to access using setter and getter. So there (maybe later) the actual code is used before the setting of the property value is done. The title which is passed to the constructor is not set by $this->title = $title, but by $this->setTitle($title).

The objects that are kept at the properties attendanceFees, categories and regions, we set off in an object storage. At the three properties so we initialize an empty ObjectStorage each in the constructor.

Use inheritance in class hierarchies

The domain objects and their relationships can be mapped generally good in a tree hierarchy. Such a hierarchy can be found in figure 5-2. Organisations include Offers. In turn, offers "contained" small fees. In our domain model is however, a second kind of hierarchy: the class hierarchy. In this hierarchy we have set that the objects ageRange, dateRange and attendanceRange are a concretization. They inherit properties and methods. In modelling we consider the opposite approach: You have to search properties which are in common in that objects. This may be abstracted and then stores them in a new, higher-level class out. In Figure 5-7 and Figure 5-8, we have shown again the procedure separately.

../_images/figure-5-7.png

Figure 5-7: Creating the Range Constraints

../_images/figure-5-8.png

Figure 5-8: Abstraction of the properties and the shift in RangeConstraint

In the class Range Constraint all common properties and methods are gathered. The properties minimumValue and maximumValue are of the type integer by default. But the inherited class DateRange expected as property values not Numbers, but objects of type DateTime. So we »override« the type definition in the class DateRange and set the type DateTime. The class RangeConstraint looks like as follows (Comments were partly removed):

<?php

namespace MyVendor\SjrOffers\Domain\Model;

use TYPO3\CMS\Extbase\DomainObject\AbstractValueObject;

abstract class RangeConstraint extends AbstractValueObject
{

   /**
    * @var int The minimum value
    */
   protected $minimumValue;

   /**
    * @var int The maximum value
    */
   protected $maximumValue;

   /**
    * @param int $minimumValue
    * @param int $maximumValue
    */
   public function __construct($minimumValue = null, $maximumValue = null)
   {
      $this->setMinimumValue($minimumValue);
      $this->setMaximumValue($maximumValue);
   }

   /**
    * @param mixed The minimum value
    * @return void
    */
   public function setMinimumValue($minimumValue = null)
   {
      $this->minimumValue = $this->normalizeValue($minimumValue);
   }

   public function getMinimumValue()
   {
      return $this->minimumValue;
   }

   /**
    * @param mixed The maximum value
    * @return void
    */
   public function setMaximumValue($maximumValue = null)
   {
      $this->maximumValue = $this->normalizeValue($maximumValue);
   }

   public function getMaximumValue()
   {
      return $this->maximumValue;
   }

   public function normalizeValue($value = null)
   {
      if ($value !== null && $value !== '') {
         $value = abs(int()$value);
      } else {
         $value = null;
      }
      return $value;
   }
}

All of this range objects have beyond their properties and methods further things in common. They have no identity other than the whole of their property values. It is not important for the offer, which age range »from 12 till 15 years« the range object is assigned to receive. Of importance is only the two values 12 and 15. Are two offers designed for the same age range, so Extbase must therefore do not pay attention to the fact that it assigns a particular age range with the values 12 and 15 to the offer. Value Objects can e.g. occur multiple times in memory, and therefore any be copied while it was driving in the major entities of the ambiguity problem. The internal handling is much more easier because of this. We thus have to Extbase to treat the object as a Value Object Constraint Range by inheriting from the appropriate Extbase class: extends TYPO3CMSExtbaseDomainObjectAbstractValueObject.

The class rank by the keyword abstract constraint was marked as abstract. Thus we prevent the Range object itself is instantiated.

We have furthermore implement a method normalizeValue(). These »adjusted« the value coming from the outside before they are assigned to a property. This is overwritten in the class DateRange together with the above mentioned type definitions:

DateRange.php
<?php
namespace MyVendor\SjrOffers\Domain\Model;

class DateRange extends \MyVendor\SjrOffers\Domain\Model\RangeConstraint
   implements \MyVendor\SjrOffers\Domain\Model\DateRangeInterface {

/**
 * The minimum value
 *
 * @var \MyVendor\SjrOffers\Domain\Model\DateTime
 */
protected $minimumValue;

/**
 * The maximum value
 *
 * @var \MyVendor\SjrOffers\Domain\Model\DateTime
 */
protected $maximumValue;

public function normalizeValue($value = NULL)
{
   if (!($value instanceof \DateTime)) {
      $value = null;
   }
   return $value;
}

The class DateRange implements furthermore the interface DateRangeInterface. The interface on is own is empty and is only used for identification. This makes especially sense for the other two Range Objects. These both implement the NumericRangeInterface. The classes AgeRange and AttendanceRange Classes are otherwise empty hulls, because they inherit all the properties and methods from the object RangeConstraint.

 <?php

 namespace MyVendor\SjrOffers\Domain\Model;

 class AgeRange extends \MyVendor\SjrOffers\Domain\Model\RangeConstraint
    implements \MyVendor\SjrOffers\Domain\Model\NumericRangeInterface
 {
 }

class AttendanceRange extends \MyVendor\SjrOffers\Domain\Model\RangeConstraint
    implements \MyVendor\SjrOffers\Domain\Model\NumericRangeInterface
 {
 }

 interface \MyVendor\SjrOffers\Domain\Model\NumericRangeInterface
 {
 }

 interface \MyVendor\SjrOffers\Domain\Model\DateRangeInterface
 {
 }

We have implemented the terms age range, number of participants and offer an adequate period in domain models. Let us now turn to the object administrator. Also here we use another, less obvious class hierarchy. Extbase provides two domain models available: FrontendUser and FrontendUserGroup. They are the equivalents of the website user or user group's website, created in the backend of TYPO3 can be assigned and managed. The two Extbase classes are filled with this data, which are stored in two database tables or fe_users fe_groups. The database fields in these tables each have a corresponding property in the domain model. The names of the properties were indeed subjected to the convention that the field names lower_underscore spelling in the name of the property is converted into lowerCamelCase notation. But they are otherwise taken 1:1 and therefore - in contrast to our previous practice - not so meaningful. Behind the property isOnline we would suspect a value of the type Boolean. But it contains the date on which the website has started the last page user demand. The class hierarchy is shown in Figure 5-9.

../_images/figure-5-9.png

Figure 5-9: The Administrator class inherits all the properties and methods of the class Extbase FrontendUser.

Validate the domain objects

The business logic often looks for rules as to the properties of the data domain objects needs to be. Here are some examples of such so-called invariants in our Extension:

  • The length of the title of an offer must not be under 3 characters and not over 50 characters.

  • The start date of an offer may not be later than the end date.

  • If one partner identifies an e-mail address, it must be valid.

You can implement the check of the details of these invariants directly the domain model. In the setter of the title of an offer would stand the following code:

public function setTitle($title)
{
  if (strlen($title) > 3 && strlen($title) < 50) {
     $this->title = $title;
  }
}

This has several disadvantages:

  • This examination, had to be done at any point, which manipulates the title (risk of failure to examination, and risk of duplicated code by cut-and-paste).

  • The definition of the rule is more or less far away from the definition of the property (poor readability of the code).

  • A change in an option of a rule ("80 rather than 50 characters") requires an intervention possibly at a difficult to-find places.

Therefore Extbase offers an alternative about Annotations. Let us have a look at the definitions of the properties of the class Offer definition - this time with all the comments:

 /**
 * The title of the offer
 *
 * @var string
 * @TYPO3\CMS\Extbase\Annotation\Validate("StringLength", options={"minimum": 3, "maximum": 50})
 */
protected $title;

/**
 * A single image of the offer
 *
 * @var string
 */
protected $image;

/**
 * The teaser of the offer. A line of text.
 *
 * @var string
 * @TYPO3\CMS\Extbase\Annotation\Validate("StringLength", options={"maximum": 150})
 */
protected $teaser;

/**
 * The description of the offer. A longer text.
 *
 * @var string
 * @TYPO3\CMS\Extbase\Annotation\Validate("StringLength", options={"maximum": 2000})
 */
protected $description;

/**
 * The services of the offer.
 *
 * @var string
 * @TYPO3\CMS\Extbase\Annotation\Validate("StringLength", options={"maximum": 1000})
 */
protected $services;

/**
 * The textual description of the dates. E.g. "Monday to Friday, 8-12"
 *
 * @var string
 * @TYPO3\CMS\Extbase\Annotation\Validate("StringLength", options={"maximum": 1000})
 */
protected $dates;

/**
 * The venue of the offer.
 *
 * @var string
 * @TYPO3\CMS\Extbase\Annotation\Validate("StringLength", options={"maximum": 1000})
 */
protected $venue;

/**
 * The age range of the offer.
 *
 * @var \MyVendor\SjrOffers\Domain\Model\AgeRange
 * @TYPO3\CMS\Extbase\Annotation\Validate("MyVendor\SjrOffers\Domain\Validator\RangeConstraintValidator")
 */
protected $ageRange;

/**
 * The date range of the offer is valid.
 *
 * @var \MyVendor\SjrOffers\Domain\Model\DateRange
 * @TYPO3\CMS\Extbase\Annotation\Validate("MyVendor\SjrOffers\Domain\Validator\RangeConstraintValidator")
 */
protected $dateRange;

/**
 * The attendance range of the offer.
 *
 * @var \MyVendor\SjrOffers\Domain\Model\AttendanceRange
 * @TYPO3\CMS\Extbase\Annotation\Validate("MyVendor\SjrOffers\Domain\Validator\RangeConstraintValidator")
 */
protected $attendanceRange;

/**
 * The attendance fees of the offer
 *
 * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\AttendanceFee>
 */
protected $attendanceFees;

/**
 * The contact of the offer
 *
 * @var \MyVendor\SjrOffers\Domain\Model\Person
 */
protected $contact;

/**
 * The categories the offer is assigned to
 *
 * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\Category>
 */
protected $categories;

/**
 * The regions the offer is available
 *
 * @var \TYPO3\CMS\Extbase\Persistence\ObjectStorage<\MyVendor\SjrOffers\Domain\Model\Region>
 */
protected $regions;

The values of some properties must be checked to control the offer being classified as valid. Which rule will narrow, about the annotation @TYPO3\CMS\Extbase\Annotation\Validate("…") is set. The annotation @TYPO3\CMS\Extbase\Annotation\Validate("StringLength", options={"minimum": 3, "maximum": 50}) on the property title effected, for example, that the title length is not smaller than 3 characters and not longer than 50 characters. The validator StringLength is provided by Extbase of charge. The name of the associated class is \\TYPO3\\CMS\\Extbase\\Validation\\Validator\\StringLengthValidator. The options minimum and maximum are passed to the Validator and are evaluated there.

With the validation, we conclude the modeling and implementation of the domain at first. With that achieved, it is possible to store domain objects, which where generated during a page view in memory. All data will be lost at the end of the page view. In order for the domain objects are permanently on the grouting, the persistence layer is to be set up accordingly.
