Extension Overview

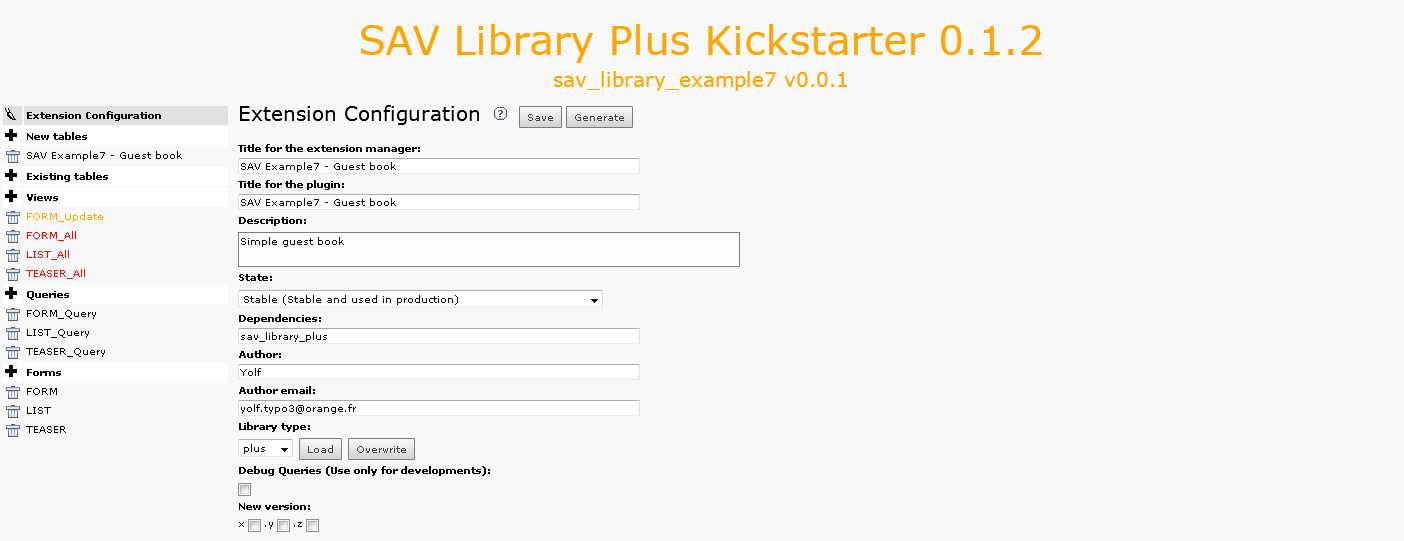

Edit the extension sav_library_example7 in the SAV Library Kickstarter to get an overview. It contains:

  • Three forms (FORM, LIST, TEASER),

  • Four views (FORM_Update, FORM_All, LIST_All, TEASER_All),

  • Three queries (FORM_Query, LIST_Query, TEASER_Query).

../../_images/Tutorial7KickstarterOverview.png

The Guest Input Form (FORM)

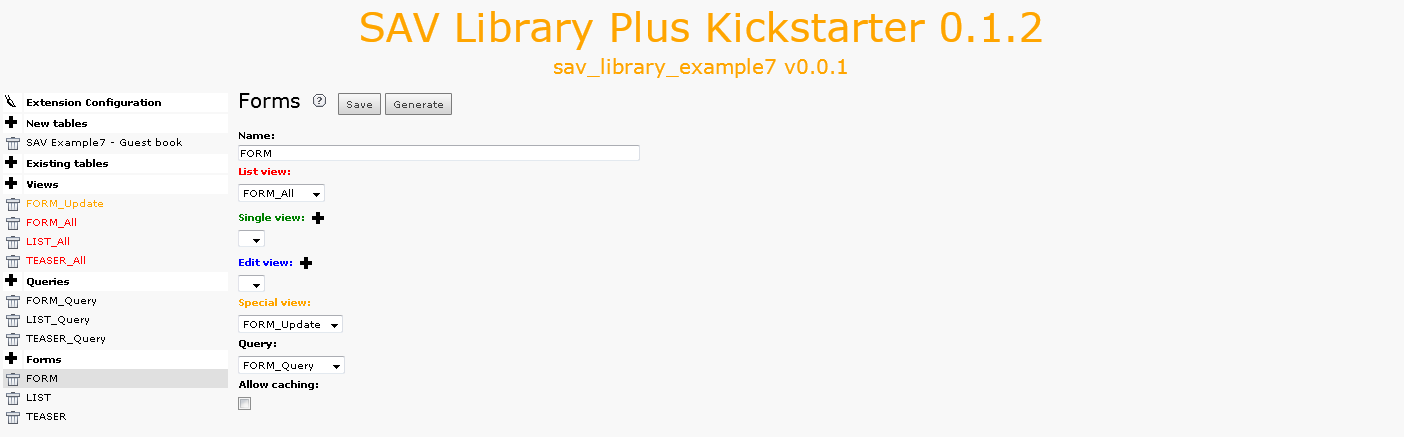

Click on FORM in the Forms section. As you can see, the form has a List view, a special view and a query.

../../_images/Tutorial7KickstarterFormForm.png

The special view, named FORM_Update is used to generate the guest input form. The List view is used to validate the data in the administration mode. Now, let us analyze each view.

The View FORM_Update

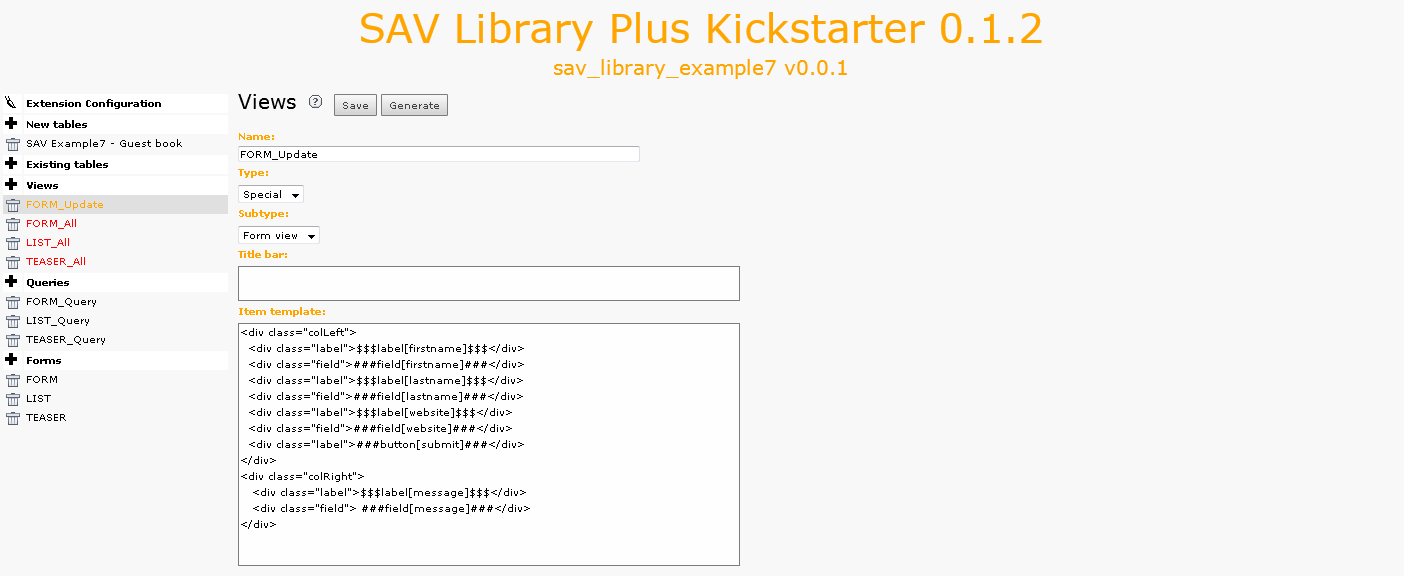

Click on FORM_Update in the Form views section.

../../_images/Tutorial7KickstarterFormUpdateView.png

The view is of type Special and of sub-type Form view. The Item template field defines the template. In our case, two <div> are used for having two columns in the form. The SAV Library provides some help to easily implement the view. $$$label[fiedname]$$$ will be replaced by the field title, depending on the localization, while ###field[fieldname]### will be replaced by the input item associated with the type of the field. The CSS classes field and label are defined in the default CSS of the SAV Library Plus extension. You may overload their properties in your CSS file. Finally, ###button[submit]### creates the submit button.

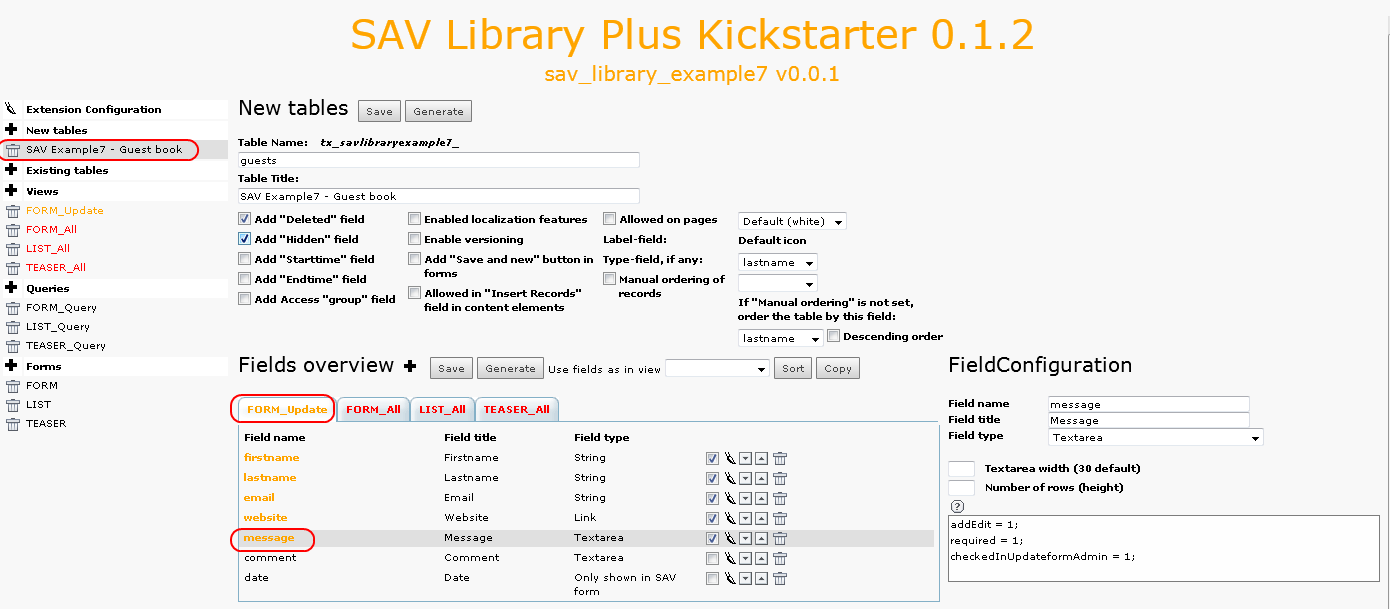

Now, we will analyse the configuration. Click on SAV Example7 Guest book in the section New tables, select the FORM_Update folder tab and click on message, for example.

../../_images/Tutorial7KickstarterMessageFieldConfiguration.png

As it can be seen, the configuration is simple since only three attributes are used:

  • addEdit = 1; means that the field can be edited by the guest, that is it will be displayed in the edit mode for the defined type. For the above example, a textarea is displayed.

  • required = 1; means that the guest will have to fill the field.

  • checkedInUpdateformAdmin = 1; means that the field will be pre- checked for the validation in the Admin form as explained in the next section.

For example, with the above configuration and the provided CSS file, once installed, you should have the following result. Required fields appear with the \* character.

../../_images/Tutorial7EditView.png

And, thanks to the localization markers $$$label[fieldname]$$$, if you change to the French language, you will get:

../../_images/Tutorial7EditViewInFrench.png

The View FORM_All

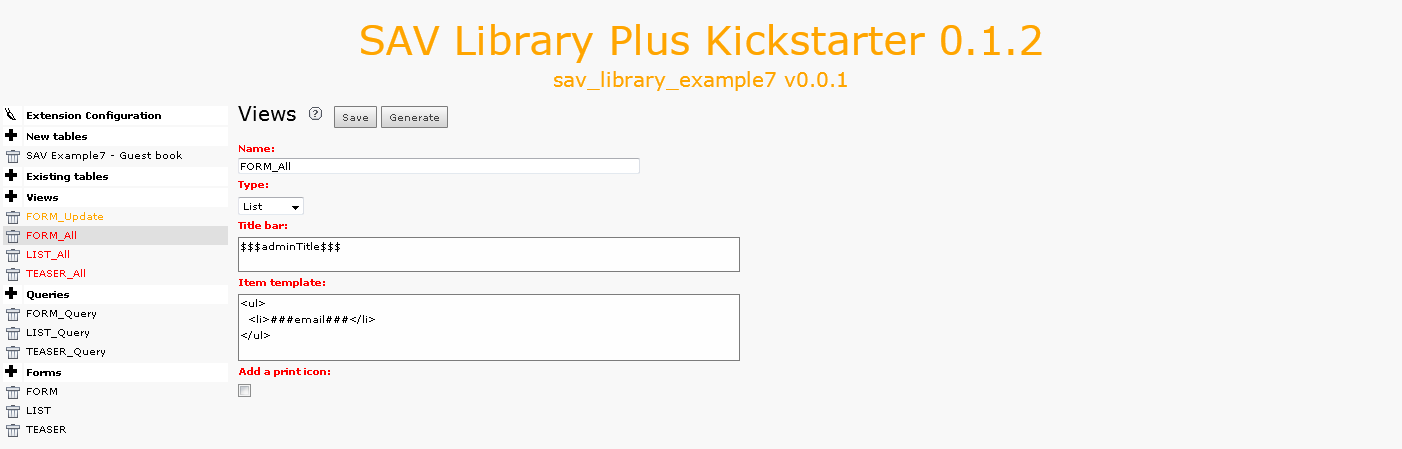

When a Form view is used, information provided by the guest are not directly saved in the table fields. A temporary field, named _submitted_data_ is automatically added to the table. It used to keep the guest inputs until you have validated them. For that, the Form view includes an Admin mode in which you have to enter by means of an associated List view which will display the new inputs. Since we will use a filter which requests the email of the guest input, it will be used in the view to switch to the Admin mode.

../../_images/Tutorial7KickstarterFormAllView.png

Localization marker $$$adminTitle$$$ is used to the view title bar. Let us recall that the marker is defined in the file locallang.xlf in the Resources/Private/Language directory of the extension. The template is very simple and contains only the email field which is selected in the configuration.

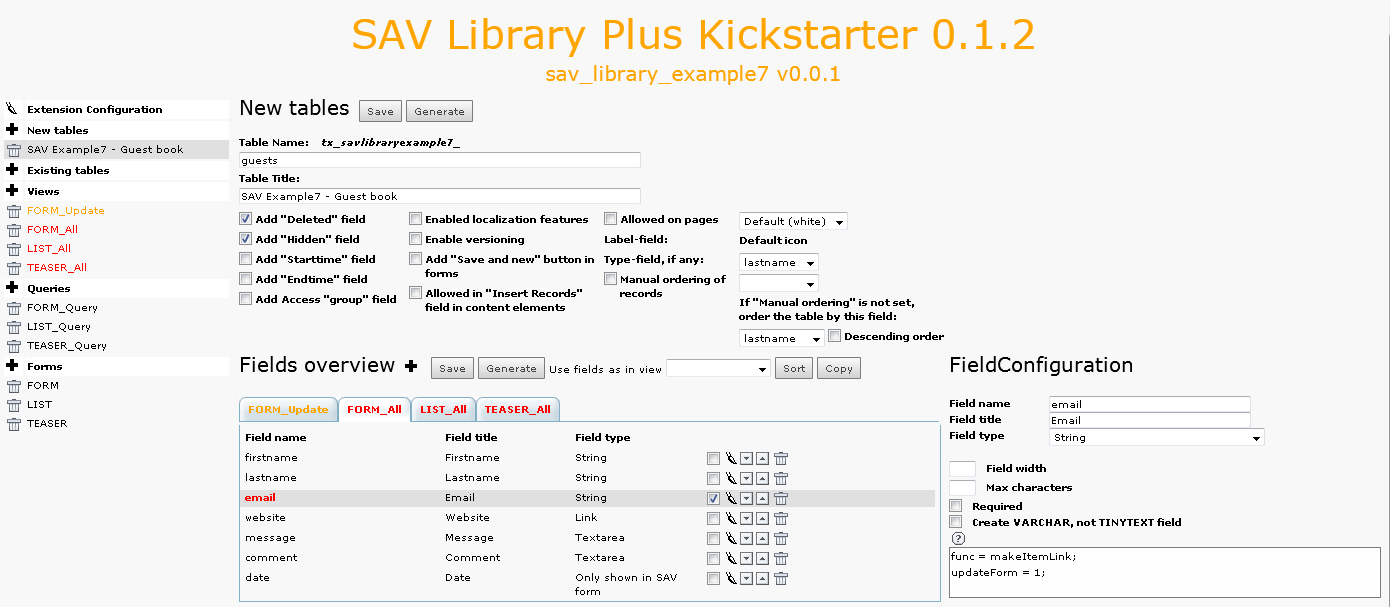

../../_images/Tutorial7KickstarterEmailFieldConfiguration.png

Two attributes are associated with the field email:

  • func = makeItemlink;, already seen in the previous examples, which creates the link associated to the field value.

  • updateForm = 1; specifies that the updateform should be opened.

Once correctly installed, if a guest, e.g. paul.durand@example.com has left a new message, you should have the following output:

../../_images/Tutorial7GuestValidationListView.png

Now, by clicking on the link, you will enter in the Admin mode. As can be seen, the fields have a checkbox already checked. It is due to the property checkedInUpdateformAdmin = 1; set in the Update view. Only fields that are checked will be transferred to their respective place in the table when submitting the form.

../../_images/Tutorial7GuestValidationEditView.png

The Query FORM_Query

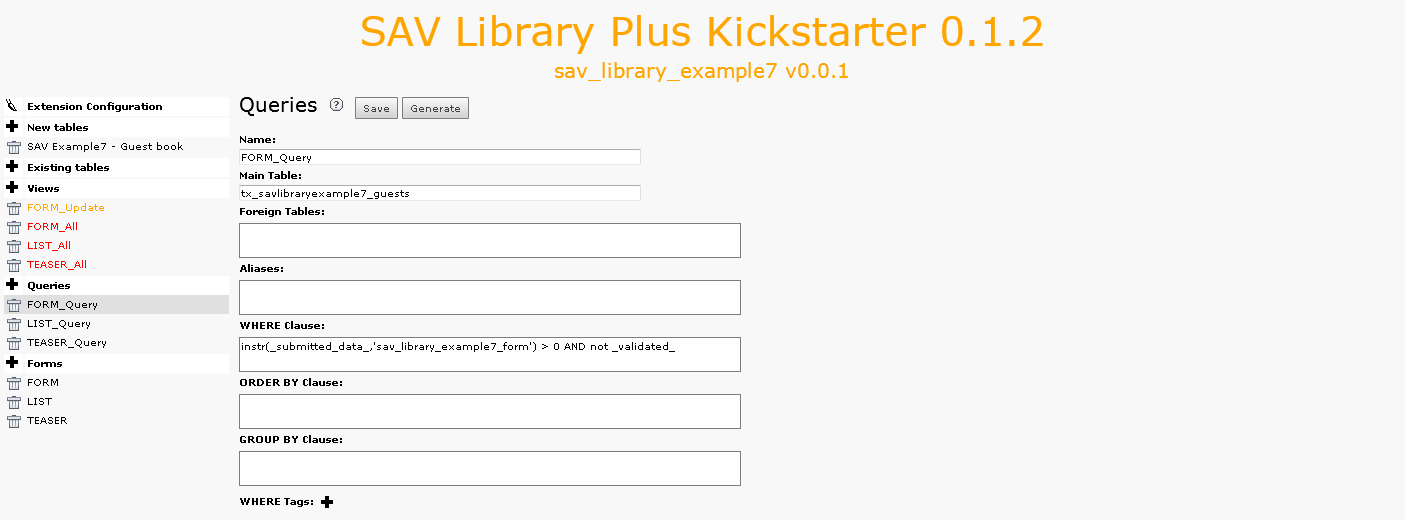

In order to get only the guest inputs that have not been checked and processed, a special WHERE clause has to be used.

../../_images/Tutorial7KickstarterFormQuery.png

As explained before, the guest entry is not directly saved in the table fields. Information are serialized and temporary saved in the field _submitted_data_. Therefore, to check that new entries are present, the WHERE clause checks a substring in the _submitted_data_ field. The substring is: extensionName_formName in lower case . When data are processed, the field _validated_ is automatically set. Thus, the WHERE clause will return new entries that have not been processed.

In our example, the extensionName is sav_library_example7 and the formName is FORM, thus the substring to fetch is: sav_library_example7_form.

The Guest Input List (LIST)

Nothing very special here. The form LIST includes a conventional List view (LIST_all). Analyze the view, the query and the field configurations (use the Context Sensitive Help if necessary). Below are two useful comments.

Field comment

addLeftIfNotNull = <strong>$$$label[comment]$$$</strong><br />;
cutIfNull = 1;

These two properties make is possible to display the label for the field only if the field is not null (addLeftIfNotNull will add the right hand side string to the left of the content if it is not null). The field content is cut if it is null (cutIfNull).

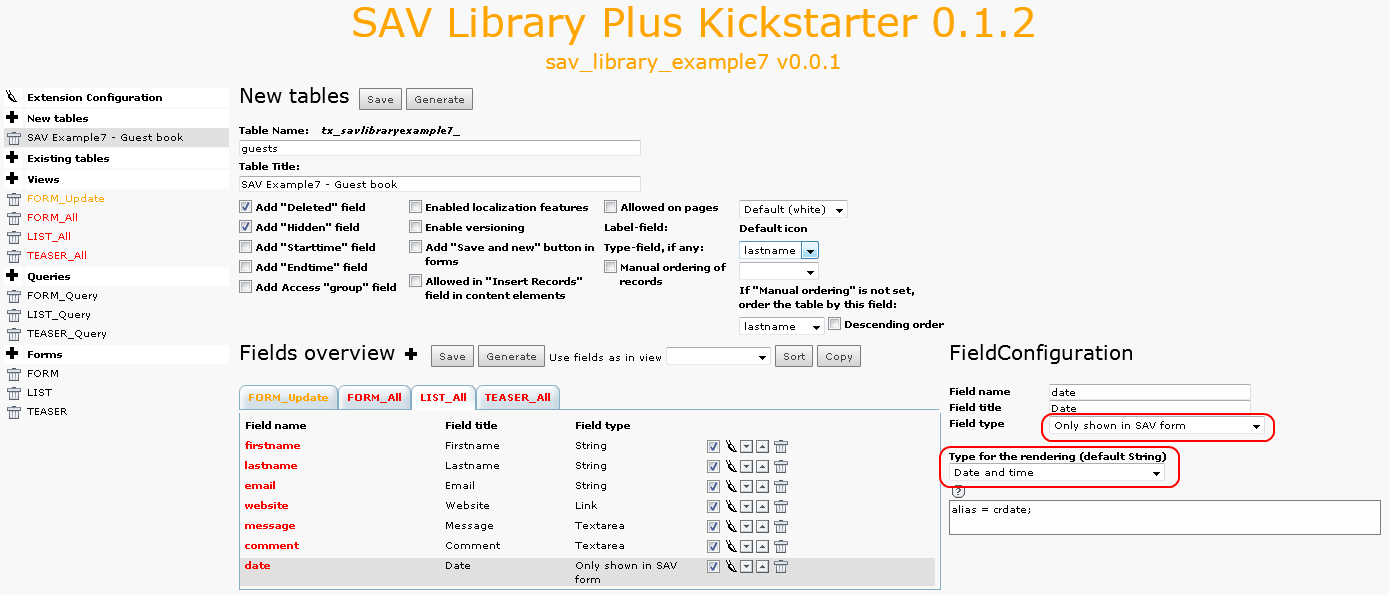

Field date

../../_images/Tutorial7KickstarterDateFieldConfiguration.png

This field has a special type Only shown in SAV form. It means that it will not be present in the table but you may use it as marker ###date### in forms. It has one attribute:

  • alias = crdate; means that this field is an alias for the field crdate that already exists in the table (it is created by the Kickstarter).

Below is the screen shot obtained for the LIST form when the extension is correctly installed.

../../_images/Tutorial7ListView.png

The teaser (TEASER)

The form TEASER includes a conventional List view (TEASER_All). Analyze the view, the query and the field configurations (use the Context Sensitive Help if necessary). The only specific configuration concerns the field message. We want to have it cropped to 60 characters and have a more link right to the text to go to the page where the LIST form is.

  • stdWrapValue =crop = 60\|...; defines a conventional TypoScript stdWrap property. You can add here full TypoScript syntax. Do not forget that the configuration field is ended by a semi-column, therefore if you need a semi-column in your TS, write it \\;.

  • addRightIfNotNull = $$$more$$$; adds the label to the right hand site of the content if it is not null. The localization marker $$$more$$$ is used and will be replaced by its value in Resources/Private/Language/locallang.xlf.

  • funcRight = makeLink; applies the internal function makeLink, which creates an internal link, to the right hand side part, that is to the more link.

  • setUidRight = 123; defines the page uid associated with the link. The value 123 is just for example, you can either replace it by your page uid or overload it using the TypoScrit pageConfig as explained in the configuration section Changing the Field Configuration.

If the extension is correctly installed, you should get:

../../_images/Tutorial7TeaserView.png
