IndexQueue Configuration

As you already learned you can index pages very easy with EXT:solr and setup a search for pages in seconds. Beside pages, there might be other records in your TYPO3 CMS that you want to have available in your search results.

Indexing custom records

As a core feature EXT:solr allows you to write custom typoscript configuration to index records from any extension just with configuration. To see how this is working, we open the content of the TypoScript example “Search - Index Queue Configuration for news” that can be found in “Configuration/TypoScript/Examples/IndexQueueNews”:

plugin.tx_solr.index.queue {

    news = 1
    news {
        table = tx_news_domain_model_news

        fields {
            abstract = teaser

            author = author
            authorEmail_stringS = author_email

            title = title

            content = SOLR_CONTENT
            content {
                cObject = COA
                cObject {
                    10 = TEXT
                    10 {
                        field = bodytext
                        noTrimWrap = || |
                    }
                }
            }

            category_stringM = SOLR_RELATION
            category_stringM {
                localField = categories
                multiValue = 1
            }

            keywords = SOLR_MULTIVALUE
            keywords {
                field = keywords
            }

            tags_stringM = SOLR_RELATION
            tags_stringM {
                localField = tags
                multiValue = 1
            }

            url = TEXT
            url {
                typolink.parameter =  {$plugin.tx_news.settings.detailPid}
                typolink.additionalParams = &tx_news_pi1[controller]=News&
                    tx_news_pi1[action]=detail&tx_news_pi1[news]={field:uid}
                typolink.additionalParams.insertData = 1
                typolink.useCacheHash = 1
                typolink.returnLast = url
            }
        }

        attachments {
            fields = related_files
        }
    }

}

plugin.tx_solr.logging.indexing.queue.news = 1

By reading the example above you might recognize the following facts:

  • The indexing configuration is done in the TypoScript path ‘plugin. tx_solr. index. queue. [configName]’ and there can be multiple queue configurations.
  • The database table is configured in the property ‘plugin.tx_solr.index.queue.[configName].table’. This allows you to have multiple index queue configurations for the same database table. This can be helpful when you have multiple queue configurations for news (e.g. if you have a press & corporate news section on your website).
  • The solr fields are configured in ‘plugin.tx_solr.index.queue.[configName].fields’. This allows you to flexibly fill any solr field. The combination of dynamic fields (Appendix - Dynamic Fields) and the queue configuration allows you to write any kind of data into solr without adapting the solr schema.
  • There are custom TypoScript objects from EXT:solr that are used in the index queue configuration

When the index queue configuration of your custom record is ready, you can check the index queue in the backend module and add the news items to the queue.

Sysfolders outside the siteroot

The page with a domain record act as a siteroot in EXT:solr. It is a good practice not to nest the siteroots and do the configuration on the root page. Changes on records that are done in the TYPO3 backend are detected and the solr document will be readded to the index queue when something was changed.

By default only records are monitored for a site that are in the tree of the site. If you want to index records and detect changes on records in a different siteroot, the index queue configuration needs to contains “additionalPageIds” (e.g.: ‘plugin.tx_solr.index.queue.<queueName>.additionalPageIds = 45,48’).

Since the monitoring of changes in these records is expensive from performance perspective, you need to enable this feature in the extension configuration:

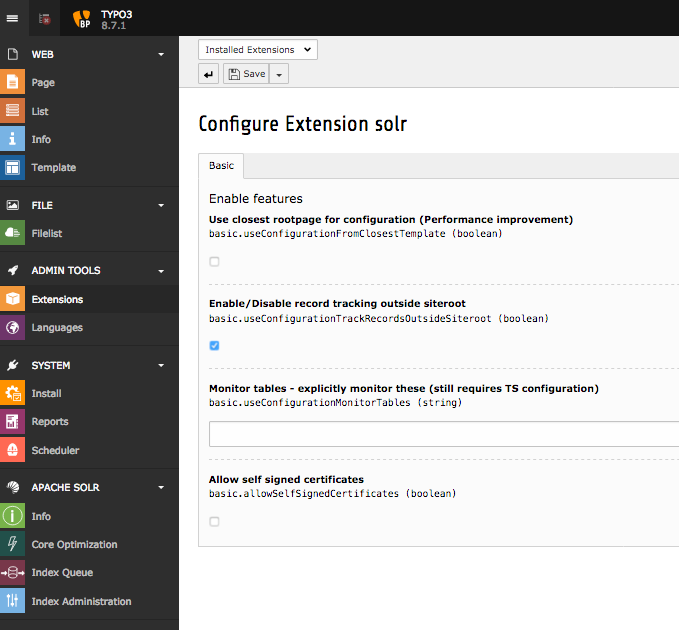

../_images/backend-record-outside-siteroot.png

Enable tracking of records outside siteroot
