Backups

Backup types

full

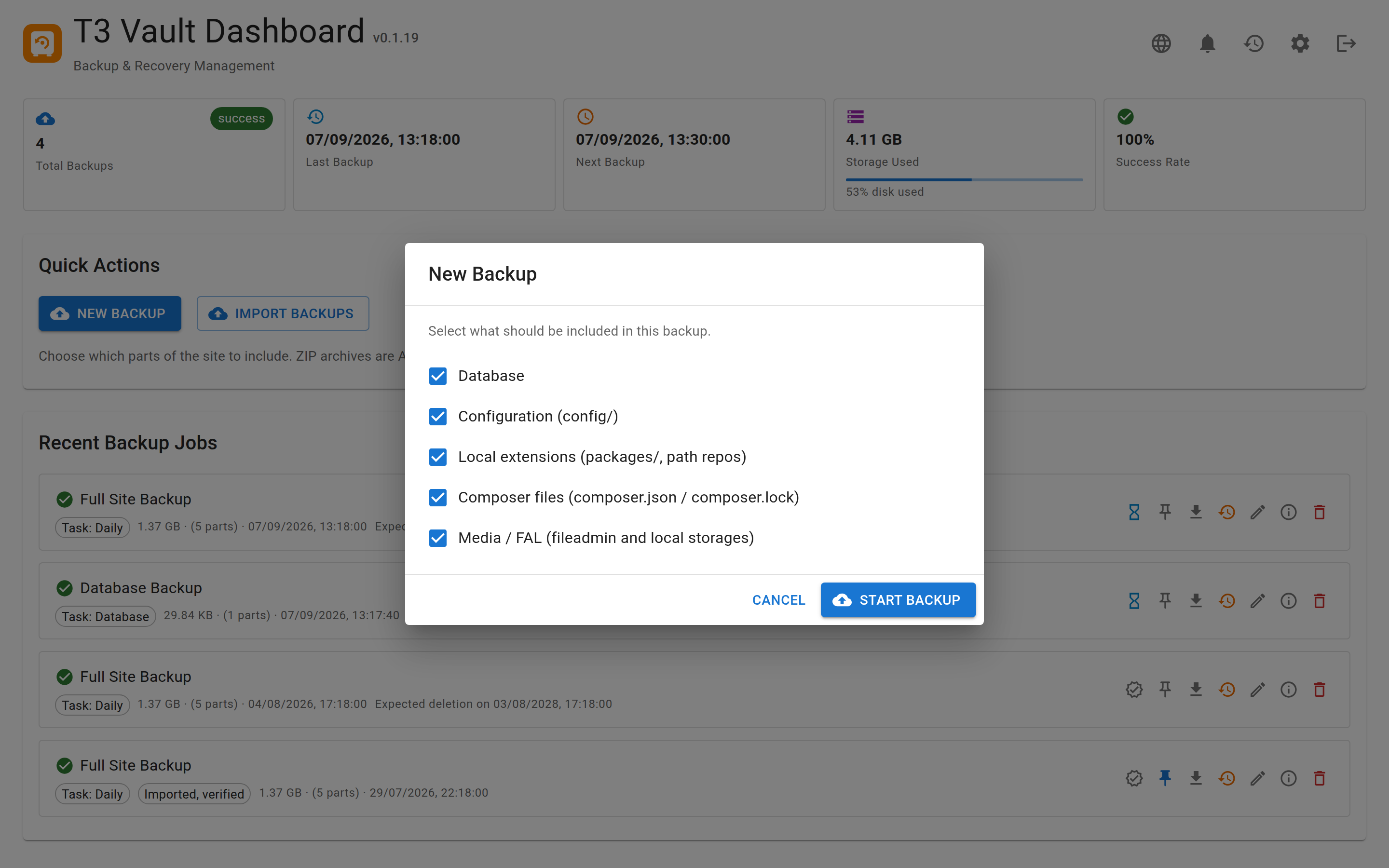

Default. Everything needed to reinstall elsewhere (or a selected subset when started from the New Backup dialog).

Composer layout (config/ + public/):

• database.zip (AES-256; entry database.sql.gz)
• config/ (settings, additional, sites)
• packages/ and other local Composer path repositories (e.g. extensions/ from composer.json)
• composer.json / composer.lock
• public/fileadmin/ and other local FAL storages (without _processed_/ / _temp_/)
• optional uploads/, index.php, .htaccess

Classic layout (typo3conf/ in the document root):

• database.zip (AES-256; entry database.sql.gz)
• typo3conf/ (without temp/autoload caches)
• fileadmin/, optional uploads/ (without _processed_/ / _temp_/)
• index.php, .htaccess
• Core (typo3/, typo3_src/) and typo3temp/ are not included

fileadmin

Media only (ZIP parts of fileadmin / FAL; without _processed_/ / _temp_/).

database

Encrypted database dump only (database.zip + MANIFEST.json). Useful for frequent scheduled tasks when a full site backup is not required every night.

Each completed backup also contains MANIFEST.json with layout-specific restore hints and environment metadata (PHP / DB / TYPO3 versions).

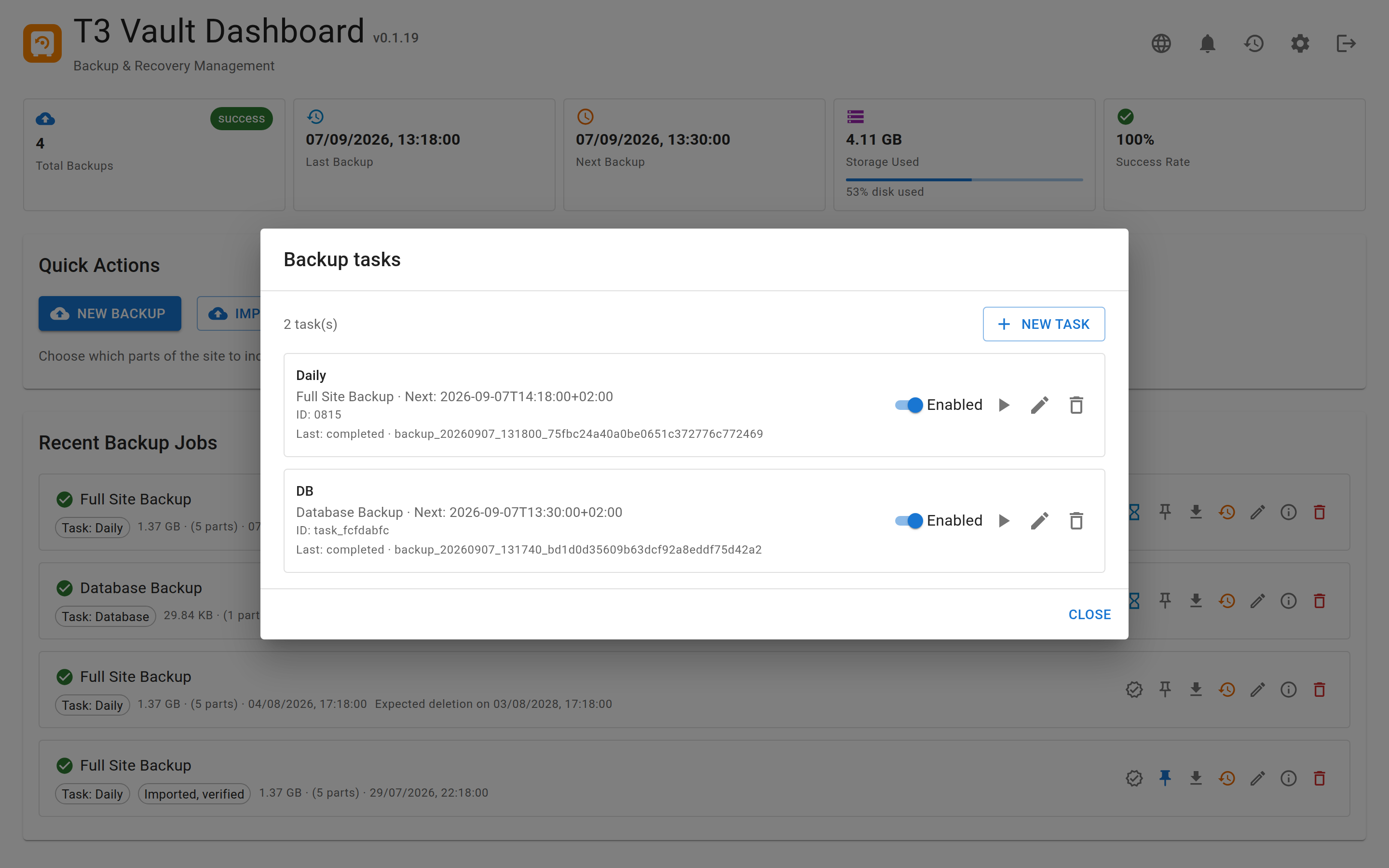

Scheduled backup tasks

Backup tasks define what to back up, when, and how long to keep archives. Configure them in the UI (Backup tasks) or via the API (GET/POST /tasks). Definitions are stored in tasks.json inside the T3Vault data directory (0600).

Each task has:

• type — database, fileadmin or full
• schedule — hourly (minute of hour) / daily / weekly / monthly (with at time) or a five-field cron expression
• retention — one or more tiers { every: { value, unit }, keep } with unit in hour|day|week|month|year

Retention uses independent historical slots per tier, measured from the newest non-pinned backup of that task:

• The finest tier (smallest every) covers ages [0, keep·E) in keep slots of length E (includes the newest backup).
• Coarser tiers start one full period back: slots [E, 2·E) … [keep·E, (keep+1)·E). So “1× month / keep 1” retains a backup about 30–60 days old, and “1× year / keep 1” about 365–730 days old (fixed durations: month = 30 days, year = 365 days).

Each slot keeps the newest backup in that age interval; the union of all tiers survives. Manual backups (no taskId) and pinned backups are never deleted by retention.

Run due tasks from cron (synchronous, no HTTP self-invocation loop):

php t3vault/cli/t3vault-run.php due
php t3vault/cli/t3vault-run.php task <id>
php t3vault/cli/t3vault-run.php retention
php t3vault/cli/t3vault-run.php list

Or via the TYPO3 console (recommended on Composer installs):

vendor/bin/typo3 t3vault:run due
vendor/bin/typo3 t3vault:run task <id>
vendor/bin/typo3 t3vault:run retention
vendor/bin/typo3 t3vault:run list

TYPO3 Scheduler (ext:scheduler suggested):

• Dedicated task “T3Vault: run due backup tasks”, or
• Task type Execute console commands → command t3vault:run (optional argument due, which is the default).

On the local DDEV project, scheduler:run is invoked every minute via Supercronic (.ddev/web-build/typo3.cron). After creating a Scheduler task in the backend, due T3Vault backups run automatically while ddev start is active — no host crontab needed.

Manual “Run now” in the UI starts the job via the normal web process chain. Backups created by a task carry taskId / taskName / mode in the plan and manifest so retention only touches that task’s archives.

What is never packed

• Symlinks leaving the backup scope. Because archiving follows symlinks, a link inside fileadmin/ that points to ~/.ssh/id_rsa, /etc/passwd or an .env outside the project would otherwise end up in the archive. Such links are skipped and listed as skippedSymlinks in the backup plan. Links that resolve back into the project are kept, so Composer path repositories in vendor/, public/_assets/ and the classic typo3/ links keep working.
• System directories configured as FAL storage. A sys_file_storage row with a base path such as /etc, /root, /usr or a bare home directory is ignored. Regular storages outside the project root (for example /srv/shared-media) are still backed up as external parts.

How processing works

1. Start a backup from the UI (type full, fileadmin or database), or let a scheduled task / the CLI runner start it.
2. A JSON plan is written under the backup directory.
3. Web path: the server continues batches via self-invocation (CURL), so closing the browser does not stop the job — useful on shared hosting without cron. CLI path (t3vault/cli/t3vault-run.php): one process runs the plan to completion without HTTP continuation.
4. When finished, integrity sealing runs (hashes + OpenTimestamps). Job status completed is independent of whether the stamp already reached Bitcoin blockchain confirmation (see Integrity & trust).

Optional batch options (API / advanced):

Directory layout

var/t3vault/backups/
└── backup_YYYYMMDD_HHMMSS_<id>/
    ├── backup-plan.json
    ├── backup-plan.json.state.json   # while running
    ├── backup.log
    ├── database.zip                 # AES-encrypted SQL dump (full backups)
    ├── MANIFEST.json
    ├── *_part_*.zip                 # AES-encrypted
    ├── integrity.json
    ├── integrity.json.hmac          # optional
    ├── integrity.json.ots
    └── integrity-meta.json

backup-plan.json may also hold optional user fields name (label, max. 120 characters) and note (free text, max. 2000 characters). Edit them from the backup list (pencil icon). They are not part of the integrity seal, so changing them does not invalidate the archive signature. An empty value removes the field. Without a custom name, the UI shows the backup type label.

Error messages and references

API responses keep infrastructure detail out: instead of an exception message with absolute paths, a failing request answers with a generic message and a reference such as ref: 9f2ac41b77e0. The full detail — exception class, message, file and line — is written to

var/t3vault/state/error.log

Search that file for the reference to see what actually happened. The file is created with 0600 in the private directory, outside the web root.

Download

From the backup list you can download:

• .t3vault.tar — archive of the backup directory
• Installer helpers for restore on a target server
• DDEV project script (t3vault-ddev.sh) for local Composer-based reproduction

A browser download cannot send the Authorization header, so each download is authorised by a separate short-lived token in the URL (60 s; 120 s for the installer). The token is bound to one purpose, to one backup, and — on first use — to the requesting client. Repeat requests from the same client still work (redirects, resumed transfers), while the same URL from anywhere else is refused. The generated DDEV script therefore carries its own archive token (one hour), because it runs later and from another client than the browser.

Importing backups

An upload (.t3vault.tar or loose artifacts) is content from outside, so it is checked before it appears in the backup list.

Request limits. At most uploadMaxFiles files, uploadMaxFileBytes per file and uploadMaxTotalBytes in total (see Settings overview). The import is also refused when the target volume has less than roughly twice the payload free, because a TAR import stages the archive and then writes the extracted artifacts. Only one import runs at a time.

Structural validation. Every ZIP part is inspected with the same rules the restore installer applies: absolute entry paths, .. segments, backslashes and symlink entries are rejected, as is an implausible compression ratio. A rejected upload is deleted immediately and answered with a log reference — no half-imported directory stays behind.

Trust marking. A backup created here is sealed: integrity.json lists the artifact hashes and integrity.json.hmac binds that list to this installation's signing secret. An import is therefore rated:

A foreign archive cannot verify here — that is expected, not an attack, and it is reported as such. The list and the details dialog show the rating with its reason, and the generated RESTORE.md of an unverified import carries a warning: restoring an archive of unknown origin introduces its code and data into the target system.

integrity-meta.json from an upload is discarded. It records the result of a verification run on the source system and must not be shown as this installation's verification state.
