Radio buttons

New in version 13.0

This type creates a set of radio buttons. The value is typically stored as integer value, each radio item has one assigned number, but it can be a string, too.

The according database field is generated automatically.

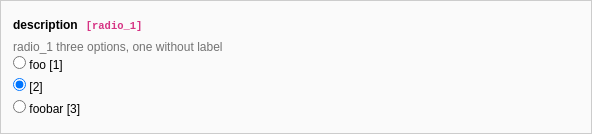

Example: Set of radio buttons field

EXT:styleguide/Configuration/TCA/tx_styleguide_elements_basic.php
[
    'columns' => [
        'radio_1' => [
            'label' => 'radio_1',
            'description' => 'radio_1 three options, one without label',
            'config' => [
                'type' => 'radio',
                'items' => [
                    [
                        'label' => 'foo',
                        'value' => 1,
                    ],
                    [
                        'label' => '',
                        'value' => 2,
                    ],
                    [
                        'label' => 'foobar',
                        'value' => 3,
                    ],
                ],
            ],
        ],
    ],
]
Copied!

Properties of the TCA column type radio

Name Type Scope
boolean Proc.
string Display / Proc.
array
array
array Display / Proc.
string (class->method reference) Display / Proc.
boolean Display

behaviour

behaviour

allowLanguageSynchronization

allowLanguageSynchronization
Type
boolean
Default
false
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['behaviour']['allowLanguageSynchronization']
Scope
Proc.

Allows an editor to select in a localized record whether the value is copied over from default or source language record, or if the field has an own value in the localization. If set to true and if the table supports localization and if a localized record is edited, this setting enables FieldWizard LocalizationStateSelector: Two or three radio buttons shown below the field input. The state of this is stored in a json encoded array in the database table called l10n_state. It tells the DataHandler which fields of the localization records should be kept in sync if the underlying default or source record changes.

EXT:my_extension/Configuration/TCA/Overrides/someTable.php
<?php

$radioField = [
    'config' => [
        'type' => 'radio',
        'behaviour' => [
            'allowLanguageSynchronization' => true,
        ],
    ],
];
Copied!

default

default
Type
string
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['default']
Scope
Display / Proc.

Default value set if a new record is created. If empty, no radio gets selected.

fieldControl

fieldControl

For details see fieldControl.

fieldInformation

fieldInformation

For details see fieldInformation.

fieldWizard

fieldWizard

defaultLanguageDifferences

defaultLanguageDifferences
Type
array
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['fieldWizard']['defaultLanguageDifferences']

For details see defaultLanguageDifferences.

otherLanguageContent

otherLanguageContent
Type
array
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['fieldWizard']['otherLanguageContent']

For details see otherLanguageContent.

items

items
Type
array
Required

true

Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display / Proc.

An array of values which can be selected.

Each entry is in itself an associative array.

label (string or LLL reference)
The displayed title.
value (integer or string)
The value stored in the database.

itemsProcFunc

itemsProcFunc
Type
string (class->method reference)
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']
Scope
Display / Proc.
Example
Example: Checkboxes with itemsProcFunc

PHP method which is called to fill or manipulate the items array. It is recommended to use the actual FQCN with class and then concatenate the method:

\VENDOR\Extension\UserFunction\FormEngine\YourClass::class . '->yourMethod'

This becomes handy when using an IDE and doing operations like renaming classes.

The provided method will have an array of parameters passed to it. The items array is passed by reference in the key items. By modifying the array of items, you alter the list of items. A method may throw an exception which will be displayed as a proper error message to the user.

Passed parameters
  • items (passed by reference)
  • config (TCA config of the field)
  • TSconfig (The matching itemsProcFunc TSconfig)
  • table (current table)
  • row (current database record)
  • field (current field name)
  • effectivePid (correct page ID)
  • site (current site)

The following parameter only exists if the field has a flex parent.

  • flexParentDatabaseRow

The following parameters are filled if the current record has an inline parent:

  • inlineParentUid
  • inlineParentTableName
  • inlineParentFieldName
  • inlineParentConfig
  • inlineTopMostParentUid
  • inlineTopMostParentTableName
  • inlineTopMostParentFieldName

readOnly

readOnly
Type
boolean
Path
$GLOBALS['TCA'][$table]['columns'][$field]['config']['readOnly']
Scope
Display

Renders the field in a way that the user can see the value but cannot edit it.
