Running tools

Tools are small, admin-curated PHP functions the model may call mid-generation. Where a normal completion answers in one shot, a tool run is a bounded agent loop: the model may ask to call a tool, nr-llm executes it, feeds the result back, and re-asks — until the model answers or an iteration cap is reached. The v1 consumer is the interactive Tool Playground.

The Tool Playground — the only tool-running surface in this release — is admin-only. The runtime itself applies a two-tier gate: each tool declares requiresAdmin(), and ToolLoopService drops admin-only tools when the acting backend user is not an administrator. Most built-in tools require admin because a tool runs with full TYPO3 privileges, has no per-record authorization, and its return value egresses both to the configured LLM provider and to the rendered backend output; only a few read-only, scope-limited tools are offered to non-admin users.

Note

The runtime design and its security and cost rationale are recorded in ADR-038. Skill ingest and injection — which can steer which tools a run may use and what arguments the model chooses — are ADR-035 / ADR-036 and the Managing skills guide.

The built-in tools

nr-llm ships eleven read-only introspection tools. Each is a reference implementation of the security contract: model-chosen arguments are validated and scoped, volumes are capped, and secret-bearing output is either redacted or gated behind a separate _raw variant. Eight ship enabled; the three unredacted _raw variants (get_env_raw, get_php_info_raw and list_be_users_raw) ship disabled and must be enabled deliberately. Most require admin; only get_pagetree, get_tca and read_fal_asset_meta are offered to non-admin backend users.

The two tools below are the fullest illustrations of the contract:

fetch_logs: Returns the most recent sys_log entries, newest first, with an optional PSR level filter and a limit (default 20, hard-capped at 50). Personally-identifying fields — the client IP, the backend user id and the serialized payload — are redacted by omission, because the result egresses to the external provider.
read_fal_asset_meta: Returns read-only metadata (file name, MIME type, size, title, alternative text) for a single managed file (sys_file) by its uid. The uid is model-chosen and therefore injection-steerable, so the lookup is storage-scoped (default: the default storage). A uid in a non-permitted storage returns the same neutral "not found or not permitted" string as a missing uid — the model cannot enumerate arbitrary files.

The remaining tools follow the same pattern:

get_env / get_env_raw: Process environment variables. get_env redacts secret-looking values (password, token, key, secret, salt, DSN, …); get_env_raw returns them unredacted (database password, encryption key) and ships disabled.
get_php_info / get_php_info_raw: PHP runtime configuration. get_php_info is redacted; get_php_info_raw returns the full, secret-bearing phpinfo detail and ships disabled.
get_pagetree: The backend page tree (uid, title, doktype) as a depth-indented outline; deleted and hidden pages are excluded — structure only, no content.
get_tca: The TYPO3 TCA schema: with no argument it lists the configured table names; with a table argument it returns that table's field definitions.
list_be_groups: The backend user groups (uid, title).
list_be_users / list_be_users_raw: Backend users. list_be_users omits credentials (password hashes and MFA secrets are never included); list_be_users_raw returns the full non-credential profile columns and ships disabled.

Registering a tool

A tool is a PHP class that implements Netresearch\NrLlm\Service\Tool\ToolInterface:

getSpec(): ToolSpec: Returns the declaration the model receives — a name, a description, and a JSON-Schema parameters block. Build it with ToolSpec::function($name, $description, $parameters).
execute(array $arguments): string: Runs the tool with the model-provided arguments and returns a plain string that is fed back into the conversation as a tool turn.

The interface carries #[AutoconfigureTag('nr_llm.tool')], so a class is auto-registered simply by implementing it — no central registration file to edit. ToolRegistry collects every tagged tool through a DI iterator and indexes it by spec name; two tools with the same name is a developer error and fails fast at container build.

When you write a tool, honour the security contract: treat $arguments as attacker-influenced (the model is steerable by injected skill prose), validate and scope every input (cap volumes, scope identifier lookups), and never return secrets — the result leaves the instance.

Managing tools

The Admin Tools > LLM > Tools module lists every registered tool with its global enable state and lets an admin toggle it. A disabled tool is refused on every run, everywhere — the runtime gate is fail-closed, so a disabled tool can never be offered to the model regardless of a skill's allowed-tools or the per-run selection in the playground. Some built-in tools (for example get_env_raw and get_php_info_raw) ship disabled by default because they return unredacted, secret-bearing output; enable them only deliberately.

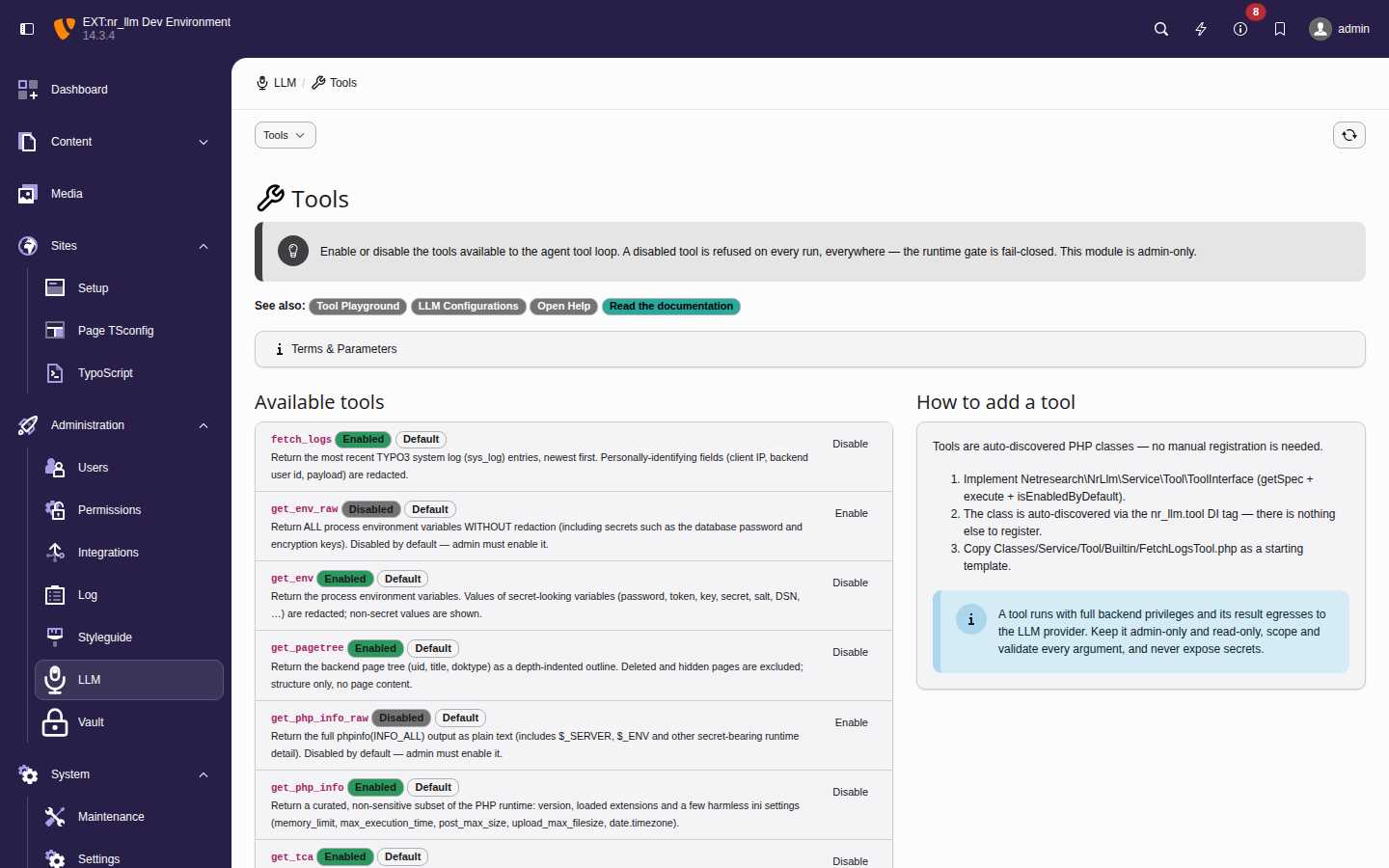

The Tools management module listing each built-in tool with an Enabled or Disabled badge and an Enable/Disable toggle — The Tools module — each registered tool with its global enable state and a toggle. The `_raw` variants show as Disabled, the redacted tools as Enabled; the Default badge marks a tool sitting at its shipped state.

Using the Tool Playground

The playground lives in Admin Tools > LLM > Playground and is admin-only. It is a sibling of the Tools management module: the playground runs the loop, while the Tools module governs which tools exist and are enabled.

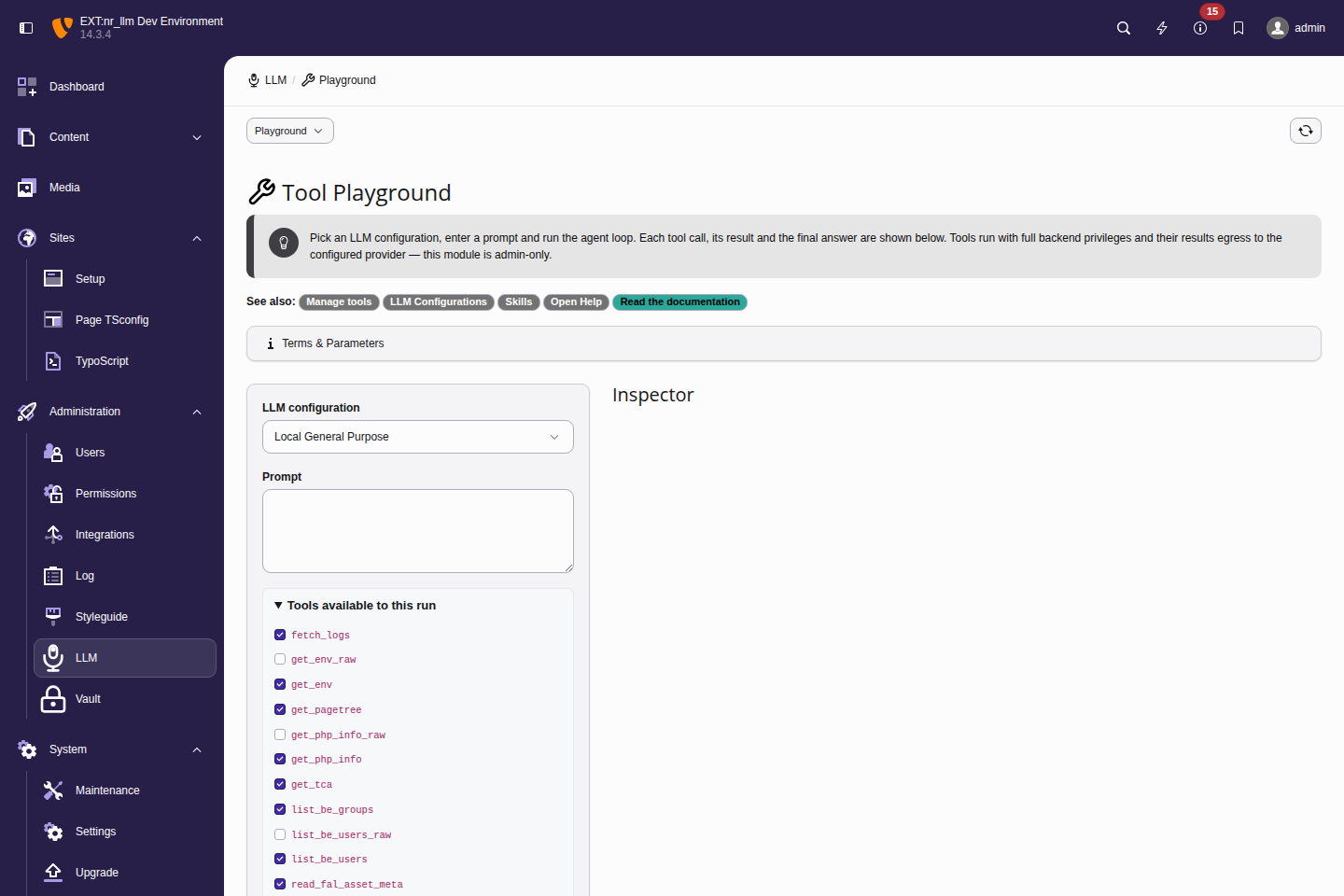

The Tool Playground module with the LLM configuration picker, an empty prompt box, the Run button, and the Available tools panel — The playground shell — the configuration picker, prompt box and the Tools available to this run panel, which lists every registered tool with the default-enabled ones pre-checked and the disabled `_raw` variants unchecked.

Pick an LLM configuration from the dropdown. Its vault-stored API key, model, temperature and system prompt are what the loop actually runs on — the playground never falls back to a default model.
Type a prompt. Optionally open the override panels to force-inject skills (added on top of the configuration's own), force-add snippets (inserted as leading system messages), override the system prompt, cap the max rounds, or tick capture raw provider response.
Click Run — or Dry run to assemble the prompt and inspect exactly what would be sent without calling the model.
Read the inspector. A summary strip reports rounds, tool calls, the prompt/completion token split, estimated cost, wall time and status. The step list is the nr_llm ↔ LLM dialog in order — each model round-trip and each tool execution; select a step to open its detail, with Structured, Raw JSON, Messages sent and Thinking tabs. The model's final answer closes the run.

A completed tool run — the summary strip, the ordered step list and the selected step's detail tabs for a two-iteration agent loop — A completed run — the summary strip (rounds, tool calls, token split, wall time, status), the ordered step list of the nr_llm ↔ LLM dialog, and the selected step's detail: here round 1 requested the `list_be_users` tool, whose result is fed back so round 2 can answer.

The Tools available to this run list lets you narrow a single run to a subset of the globally-enabled tools (the full list and the global enable/disable controls live in the Tools module). Raw-response capture is off unless you tick it, so ordinary runs never retain the provider's raw payload. Every displayed string — tool arguments, tool results (which may include sys_log content), and the final answer — is rendered escaped; HTML is only ever shown inside a sandboxed preview, never injected into the page.

Each run is bounded by the iteration cap (default 5) and, when the configuration's backend user has a budget, by the per-iteration budget pre-flight. If the cap is hit with tools still pending, a final tool-free completion synthesises a closing answer and the run is marked truncated. The aggregated token usage is reported; the monetary cost is recorded in the usage table by the middleware pipeline.

Ollama model-capability dependency

Tool calling depends on the model, not just the provider. For Ollama, only function-calling-capable models — for example llama3.1, mistral, qwen2.5 — return tool calls. A model without function-calling support simply answers the prompt directly and never calls a tool; the loop ends gracefully on the first plain answer. If a configured Ollama model never seems to use the available tools, verify it is one of the function-calling models for your Ollama version.

Gating tools with `allowed-tools` in a skill

A skill's SKILL.md front-matter may carry an allowed-tools key that gates which tools the skills attached to a configuration (or task) grant for a run. The resolution is fail-closed on declaration, computed over the configuration's effective skills (enabled, non-orphaned — exactly the set that is injected into the prompt):

Absent (no skill declares allowed-tools) — no opinion; all registered tools are offered.
Declared list — the union of the declared lists across the effective skills; only those tools are offered (intersected with what is actually registered, so an unknown name is dropped).
Declared empty (allowed-tools: []) — declares zero tools; if no other effective skill widens the set, the run gets no tools and is a single plain completion.

A disabled or orphaned skill never grants tools. The allow-list is enforced both when the tools are offered to the model and again when a tool call is executed, so a prompt injection cannot reach a tool the skills did not grant.

See ADR-038 for the runtime design and security rationale.
