Designing Templates From Examples

Introduction

The Chart.js documentation provides examples of various chart types.

The SAV Charts extension includes templates for all chart types. These templates can be found in Resources/Private/Templates/ChartExamples for the XML parser and Resources/Private/Templates/ChartExamples/FluidParser for the Fluid parser.

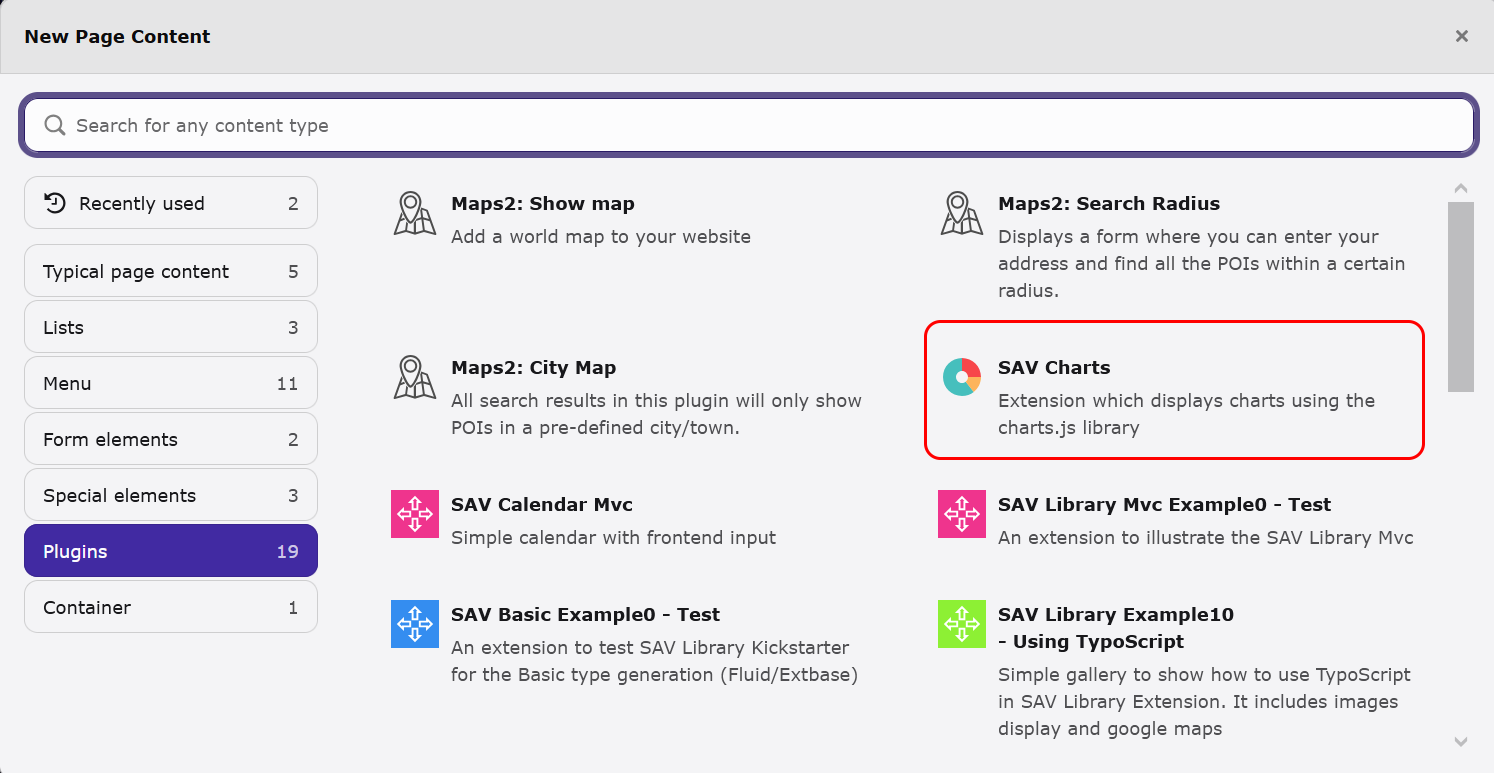

To display a template, simply create an SAV Charts plugin content element on a page.

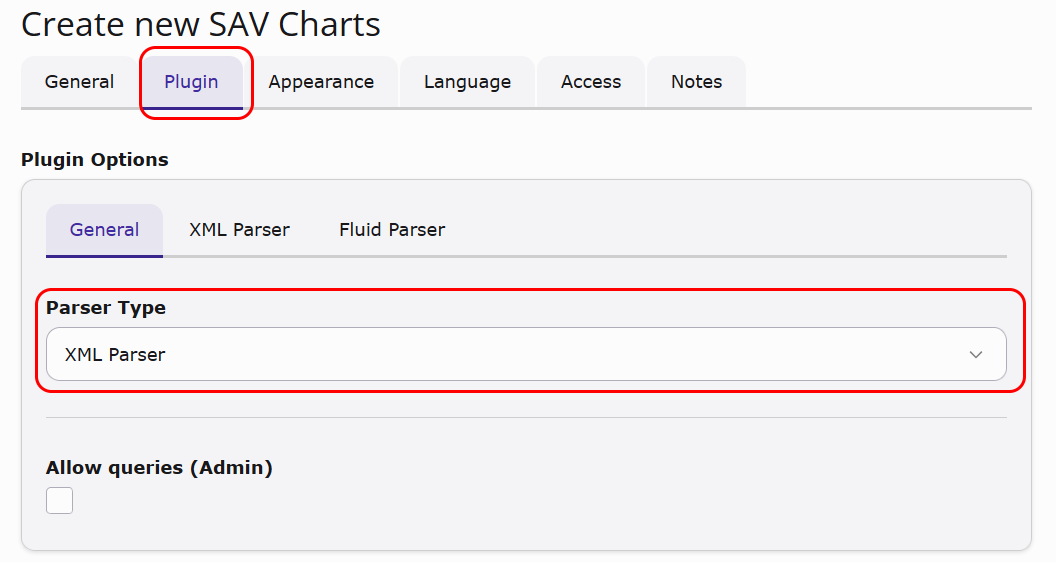

Then click on the plugin tab and select the parser type.

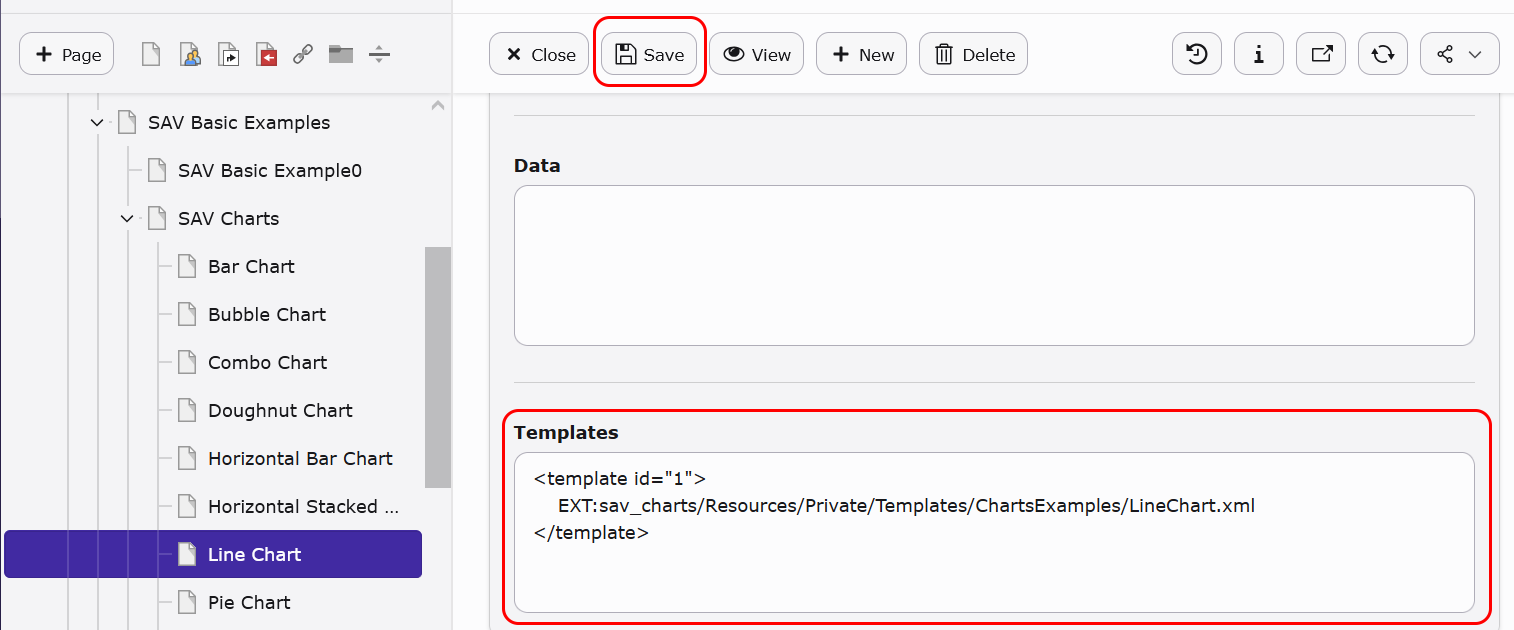

Fill in the template field of the Flexform corresponding to the selected parser type, then save.

Important

Use the EXT: prefix to reference the template file from the extension.

<template id="1">
    EXT:sav_charts/Resources/Private/Templates/ChartsExamples/LineChart.xml
</template>

<c:template id="1">
    EXT:sav_charts/Resources/Private/Templates/ChartsExamples/FluidParser/LineChart.fluid
</c:template>

or

<c:template id="1" fileName="EXT:sav_charts/Resources/Private/Templates/ChartsExamples/FluidParser/LineChart.fluid" />

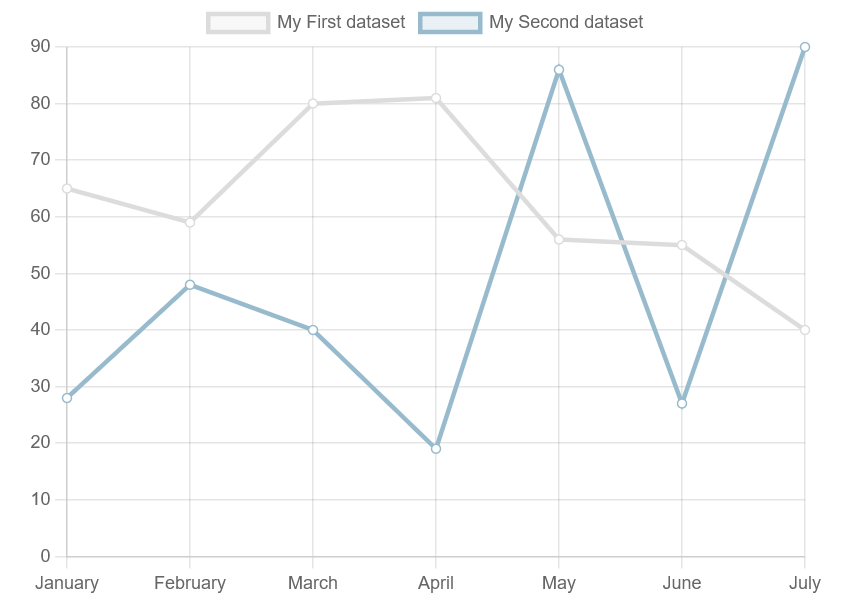

Go to the front-end and you should see the following image.

Writing Templates

The templates provided with the extension were adapted from the examples given in the Chart.js documentation. Let us illustrate the principle for the line chart.

The JavaScript code to display the line graph is as follows:

var data = {
    labels: ["January", "February", "March", "April", "May", "June", "July"],
    datasets: [
        {
            label: "My First dataset",
            fillColor: "rgba(220,220,220,0.2)",
            strokeColor: "rgba(220,220,220,1)",
            pointColor: "rgba(220,220,220,1)",
            pointStrokeColor: "#fff",
            pointHighlightFill: "#fff",
            pointHighlightStroke: "rgba(220,220,220,1)",
            data: [65, 59, 80, 81, 56, 55, 40]
        },
        {
            label: "My Second dataset",
            fillColor: "rgba(151,187,205,0.2)",
            strokeColor: "rgba(151,187,205,1)",
            pointColor: "rgba(151,187,205,1)",
            pointStrokeColor: "#fff",
            pointHighlightFill: "#fff",
            pointHighlightStroke: "rgba(151,187,205,1)",
            data: [28, 48, 40, 19, 86, 27, 90]
        }
    ]
};

The template is created by converting the JavaScript code into an XML structure with the data tag. Thanks to the data tag ID, references can be used and applied. These references provide an easy way to split the data, making it possible to overload them in the FlexForm data section or with queries.

The following codes are the XML or Fluid translations of the previous JavaScript code. Data tags with the IDs "labels," "dataSet1," and "dataSet2" can be easily overloaded, as explained in the next section.

<?xml version="1.0" encoding="UTF-8"?>
<charts>
    <lineChart id="1" data="data#lineChartData" options="data#lineChartOptions" >

        <marker id="labelSet0">My First dataset</marker>
        <marker id="labelSet1">My Second dataset</marker>

        <data id="labels">
            January, February, March, April, May, June, July
        </data>

        <data id="dataSet0">
            65, 59, 80, 81, 56, 55, 40
        </data>

        <data id="dataSet1">
            28, 48, 40, 19, 86, 27, 90
        </data>

        <data id="set0">
            <item key="label" value="marker#labelSet0" />
            <item key="backgroundColor">rgba(220,220,220,0.2)</item>
            <item key="pointColor">rgba(220,220,220,1)</item>
            <item key="pointBackgroundColor">#fff</item>
            <item key="pointHoverBackgroundColor">rgba(220,220,220,1)</item>
            <item key="data" value="data#dataSet0" />
        </data>

        <data id="set1">
            <item key="label" value="marker#labelSet12" />
            <item key="backgroundColor">rgba(151,187,205,0.2)</item>
            <item key="pointColor">rgba(151,187,205,1)</item>
            <item key="pointBackgroundColor">#fff</item>
            <item key="pointHoverBackgroundColor">rgba(151,187,205,1)</item>
            <item key="data" value="data#dataSet1" />
        </data>

        <data id="dataSets">
            <item key="0" value="data#set0" />
            <item key="1" value="data#set1" />
        </data>

        <data id="lineChartData">
            <item key="labels" value="data#labels" />
            <item key="datasets" value="data#dataSets" />
        </data>

        <data id="lineChartOptions">
        </data>

    </lineChart>
</charts>

<c:charts>
    <c:lineChart id="1" data="data__lineChartData" options="data__lineChartOptions" >

        <c:marker id="labelSet0">My First dataset</c:marker>
        <c:marker id="labelSet1">My Second dataset</c:marker>

        <c:data id="labels">
            January, February, March, April, May, June, July
        </c:data>

        <c:data id="dataSet0">
            65, 59, 80, 81, 56, 55, 40
        </c:data>

        <c:data id="dataSet1">
            28, 48, 40, 19, 86, 27, 90
        </c:data>

        <c:data id="set0">
            <c:item key="label" value="{marker__labelSet0}" />
            <c:item key="backgroundColor">rgba(220,220,220,0.2)</c:item>
            <c:item key="pointColor">rgba(220,220,220,1)</c:item>
            <c:item key="pointBackgroundColor">#fff</c:item>
            <c:item key="pointHoverBackgroundColor">rgba(220,220,220,1)</c:item>
            <c:item key="data" value="{data__dataSet0}" />
        </c:data>

        <c:data id="set1">
            <c:item key="label" value="{marker__labelSet1}" />
            <c:item key="backgroundColor">rgba(151,187,205,0.2)</c:item>
            <c:item key="pointColor">rgba(151,187,205,1)</c:item>
            <c:item key="pointBackgroundColor">#fff</c:item>
            <c:item key="pointHoverBackgroundColor">rgba(151,187,205,1)</c:item>
            <c:item key="data" value="{data__dataSet1}" />
        </c:data>

        <c:data id="dataSets">
            <c:item key="0" value="{data__set0}" />
            <c:item key="1" value="{data__set1}" />
        </c:data>

        <c:data id="lineChartData">
            <c:item key="labels" value="{data__labels}" />
            <c:item key="datasets" value="{data__dataSets}" />
        </c:data>

        <c:data id="lineChartOptions">
        </c:data>

    </c:lineChart>
</c:charts>

Tip

<data> were inserted inside the <lineChart> tag just by personal choice. They could have been provided before the <lineChart> tag. In that case, the tag would have no content and would simply be written as follows:

<lineChart id="1" data="data#lineChartData" options="data#lineChartOptions" />

<c:lineChart id="1" data="data__lineChartData" options="data__lineChartOptions" />

Overloading Data

Open the plugin in the backend, fill out the Data section of the Flexform as follows, and then save.

<data id="dataSet0">
    20,22,24,20,19
</data>
<data id="dataSet1">
    55,50,51,53,60
</data>
<data id="labels">
    Monday, Tuesday, Wednesday, Thursdat, Friday
</data>

<c:data id="dataSet0">
    20,22,24,20,19
</c:data>
<c:data id="dataSet1">
    55,50,51,53,60
</c:data>
<c:data id="labels">
    Monday, Tuesday, Wednesday, Thursdat, Friday
</c:data>

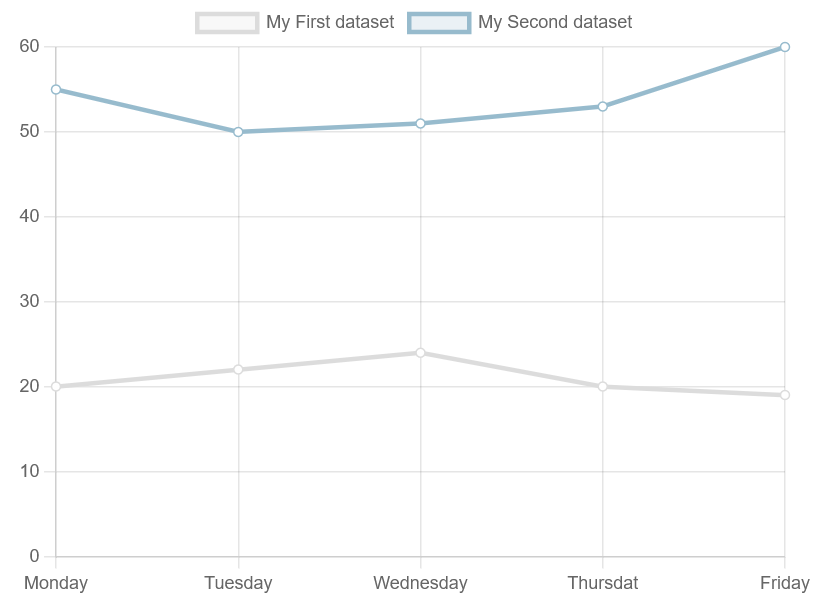

Go in the front-end and you should see the following figure.

In SAV Charts, the principle is that the first definition is used for a given tag with a given ID. In the previous example, for instance, the dataSet0 and dataSet1 tags are defined in the data section before the template section. Consequently, they will not be replaced by the same data tags in the template. The tags in the data section overload the same tags in the template.

This provides a simple way to work with generic templates and adapt their behavior to your data. For example, with the same "LineChart.xml" template, you may want to display only one curve. This can easily be achieved by defining the "dataSets" tag in the data section, as shown below.

<data id="dataSet0">
    20,22,24,20,19
<data>
<data id="labels">
    Monday, Tuesday, Wednesday, Thursdat, Friday
<data>
<data id="dataSets">
    <item key="0" value="data#set0" />
</data>

<c:data id="dataSet0">
    20,22,24,20,19
<c:data>
<c:data id="labels">
    Monday, Tuesday, Wednesday, Thursdat, Friday
<c:data>
<c:data id="dataSets">
    <c:item key="0" value="{data__set0}" />
</c:data>

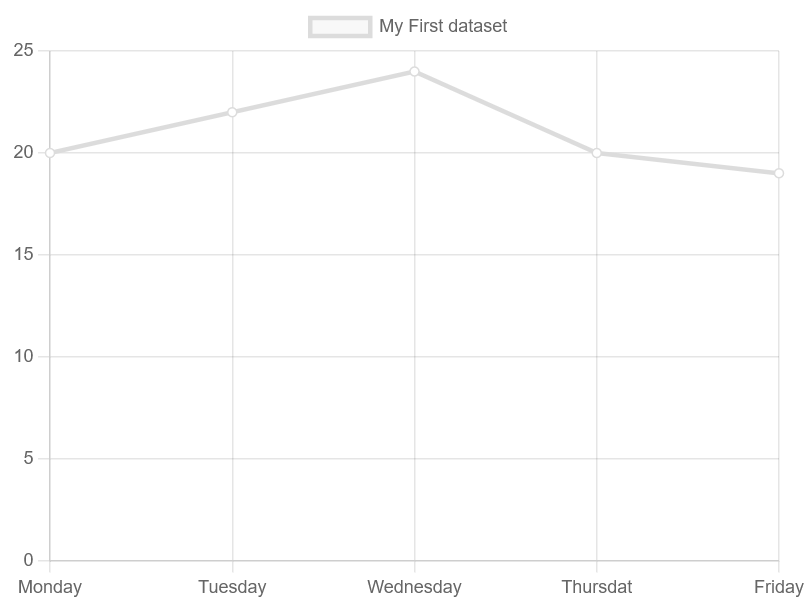

Enter the previous code in the FlexForm Data section. Then, save and go to the front end.

Note

In very specific cases, you can explicitly allow overloading of a given tag by setting the Overload attribute to 1. This feature is used to build a flexible XML template in the file Resources/Private/Templates/ChartExamples/LineChartAdvanced.xml.

Overloading Markers

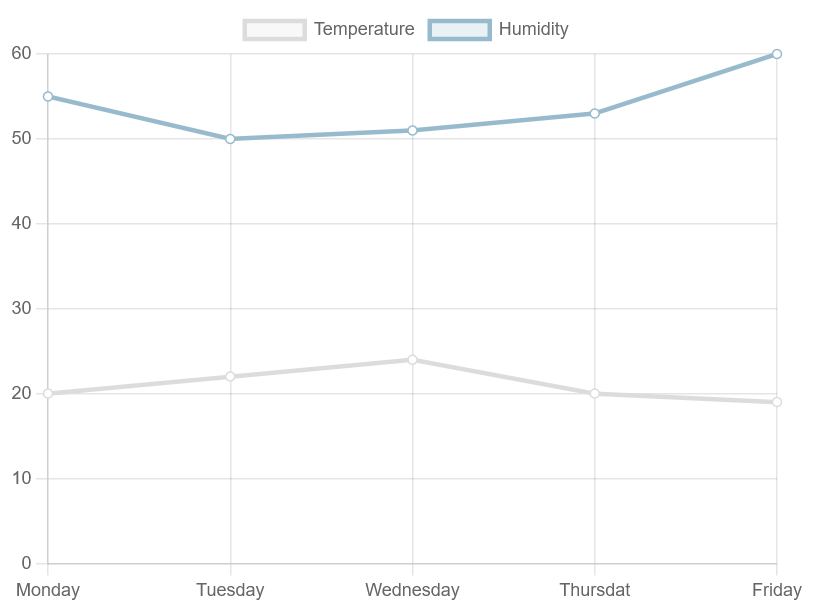

Markers are tags that can be used to create strings. In the line chart template, two markers are used to define the labels that are displayed in the legend. You can overlay the markers in the Markers section of the Flexform. Enter the following code in the Markers and Data sections. Then, save and go to the front-end.

Markers section

<marker id="labelSet0">Temperature</marker>
<marker id="labelSet1">Humidity</marker>

Data section


<data id="dataSet0">
    20,22,24,20,19
</data>
<data id="dataSet1">
    55,50,51,53,60
</data>
<data id="labels">
    Monday, Tuesday, Wednesday, Thursdat, Friday
</data>

Markers section

<c:marker id="labelSet0">Temperature</c:marker>
<c:marker id="labelSet1">Humidity</c:marker>

Data section


<c:data id="dataSet0">
    20,22,24,20,19
</c:data>
<c:data id="dataSet1">
    55,50,51,53,60
</c:data>
<c:data id="labels">
    Monday, Tuesday, Wednesday, Thursdat, Friday
</c:data>

Options

Options are defined in the Chart.js documentation. They can be set by overloading the <data> tag associated with the options attribute of the chart. In the LineChart.xml template, for example, the chart is defined as follows:

<lineChart id="1" data="data#lineChartData" options="data#lineChartOptions" >
    ....
</lineChart>

<c:lineChart id="1" data="data__lineChartData" options="data__lineChartOptions" >
    ....
</c:lineChart>

The options attribute is a reference to the <data> tag whose ID is lineChartOptions.

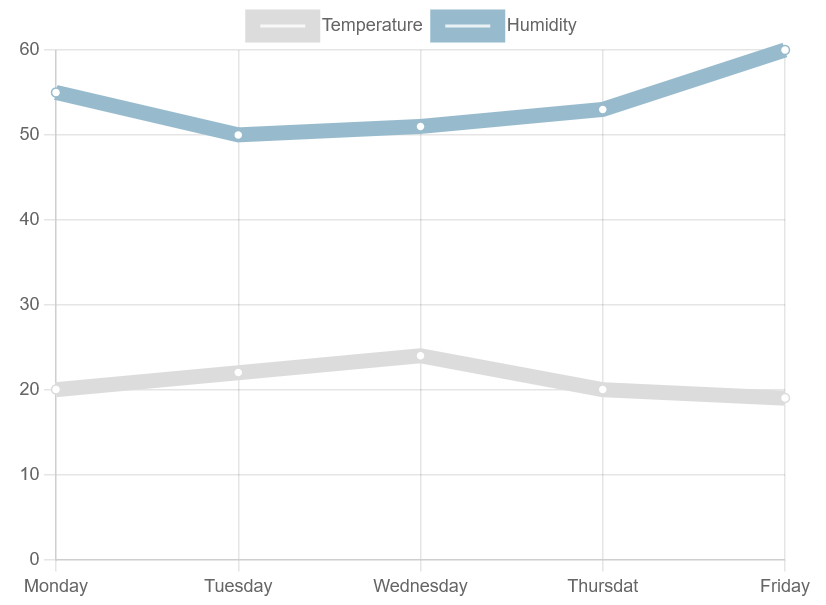

Overloading this tag in the Data section of the Flexform will set the options. Assume that the Data section is still configured with a modified label. Add the following code to the Data section of the Flexform. This will cancel the animation, set a linear interpolation between points, and display the line a width of 10 points.

<data id="lineChartOptions" >
    <item key="animation"></item>
    <item key="elements">
        <item key="line">
            <item key="tension" value="0" />
            <item key="borderWidth" value="10" />
        </item>
    </item>
</data>

<c:data id="lineChartOptions" >
    <c:item key="animation"></c:item>
    <c:item key="elements">
        <c:item key="line">
            <c:item key="tension" value="0" />
            <c:item key="borderWidth" value="10" />
        </c:item>
    </c:item>
</c:data>

Note

A linear interpolation is obtained by setting the tension to 0 in Chart.defaults.global.elements.line (see Chart.js documentation). Since the global options are in the <data> whose ID is lineChartOptions, nested items whose keys are elements and line provide access to Chart.defaults.global.elements.line.

Tip

To generate a Boolean value, set the attribute value to true or false.
