Architecture

Overview

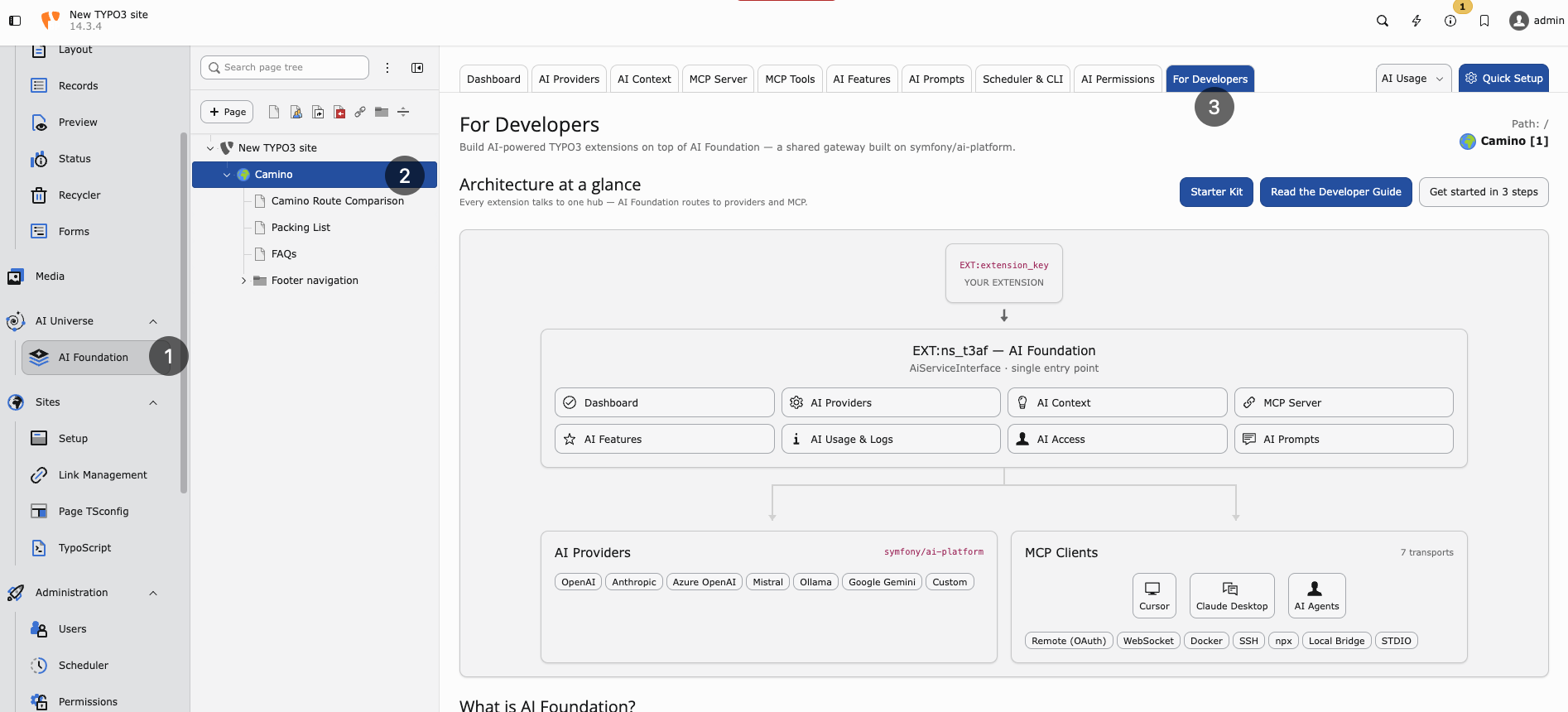

For Developers tab showing AI Foundation architecture at a glance

Architecture at a glance — extensions call AI Foundation, which routes to AI providers and MCP clients.

AI Foundation is a shared foundation layer:

Consuming Extension Code
        |
        v
AiServiceInterface
        |
        v
AdapterRegistry -> Provider adapters
        |
        v
   Provider APIs
Copied!

Parallel support:

AiStatisticsService -> OpenAiOrganizationUsageService -> OpenAI Usage API
HttpAuthUtility    -> Protected URL fetching with optional Basic Auth
Copied!

Main components

  • Request orchestration: AiServiceInterface and AiService
  • Provider adapters: AdapterRegistry and AdapterInterface implementations
  • Statistics processing: AiStatisticsService and OpenAiOrganizationUsageService
  • Engine configuration filtering: AiEngineConfiguration
  • Utility and environment helpers: AiUniverseUtilityHelper
  • HTTP auth helper: HttpAuthUtility

Configuration model

Runtime AI requests resolve through provider rows in AI Providers. Optional extension settings cover translation helpers, Basic Auth, notifications, and MCP switches. See Configuration.

This includes:

  • provider adapters, encrypted API keys, and model IDs
  • default provider selection
  • optional temperature and capability flags on provider rows
  • optional Basic Auth settings for protected URL fetching

Caching

The extension registers cache nst3af_statistics in ext_localconf.php.

Statistics service stores processed data in this cache to reduce repeated usage API calls.

Constraints

  • No native frontend plugin and no Fluid frontend output in this package.
  • Primary role is reusable service infrastructure.
