Design¶
The arrangement and appearance from content elements can be defined on different areas. The coarse structure is defined with the page layout where structure elements like container elements might further organize the content in columns, registers, and the like. Fine tuning can be done on a content element basis by altering the frame, attributes and background.

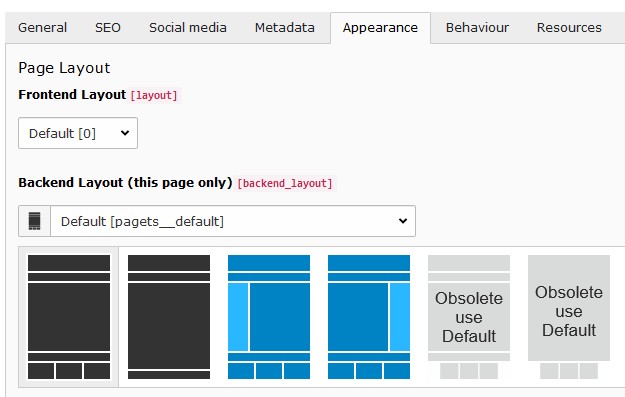

Page layout¶
With a page layout the coarse page structure is defined. They can be selected in the page properties dialog under the appearance tab. See as well demo site.
Note
The page layouts with a navigation menu on the side allow to add content too.
Structure elements¶
With structure elements the content area might be further organized. Typical elements are containers, columns, grid, accordions and tabs. See as well demo site.
This extension mainly supports the extension container_elements powered by the extension container.
For further information refer to the extension manual.
Content element¶
Images tab¶
Image cropping¶
To faster crop images to be used in tiles the side ratios 2:1, 3:4, 9:16 and 1:2 were added.
Note
When defining an image crop area with the same side ratio (e.g. 2:1) as used for the content element layout the image might not fill the entire tile area. This is due to the fact that the tile area is having the exact side ratio where the images side ratio deviates from that due to the tile border. After approximating the image area with the exact tile ratio select the free side ratio to fine adjust the area.
Image variants¶
Usually the images are used in a content element using the content width. To optimize page loading time and reducing the data bandwidth the image sizes are adapted to the content width. This works fine for most cases.
In case one likes to use images in a content element spanning a different width (e.g. the full page width) the resolution might result to be too small resulting in not sharp images. For this situation the image variant selector has been introduced allowing to adapt the image rendering to different sizes (e.g. "Full page width").
Image scaling¶
The image sizes for the different screen sizes are defined by the selected image variants as well as the image column count.
Some times an editor adds additional elements for structuring the content area resulting in a smaller available space for images. To deliver the optimal image size under such conditions a scaling can be defined.
As an example consider adding a two column structure element with the first column being 33% and the second column 67% from the content width. Let's assume the two columns to be next to each other for screen sizes bigger than md. Now when adding an image to the first column (33% width) the rendered image would be two times bigger than needed (due to the system not knowing how much space is available in the column). To deliver optimal sized images the following scaling definition could be used:
xl: 0.33,
lg: 0.33,
md: 0.33,
sm: 1.0,
xs: 1.0
Important
Before adjusting the image scaling manually make sure the images aren't yet
created with the correct sizes. The extension pizpalue
supports image
scaling for structure elements by providing view helpers (see view helpers
Render/Bootstrap/Column
, Structure/Wrap/Column
and
Structure/Multiplier/GetForColumn
) and adjusting the content element
template. Extensions like pp_gridelements
might already make use of them
and deliver correct image sizes. See as well
Integration-Templating.
Appearance tab¶

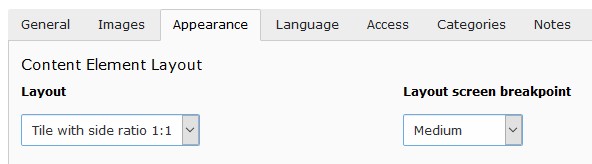

Tile layouts¶
Three tile layouts
and a Layout screen breakpoint
selector were added.
By selecting a Layout screen breakpoint
a css class is added to the content
element allowing to adjust the layout depending on the screen width. This is
currently used in conjunction with tile layouts but might be used in other
contexts as well.
Note
Tile views
Tile views can be created by arranging tiles in columns. For this the classes
pp-tile-row
and no-gutters
are assigned to the row and pp-tile-col
to
the column tag. The extension
pp_gridelements
provides the structure element tile unit
that assigns the mentioned classes
directly.
The tile border width can be adjusted in the constant editor
(PIZPALUE: CLIENT STYLE - Tile gutter
).
In case a tile content needs to be vertically scrolled the class
pp-tile-scroll-y
might be assigned to the tile.
Background variants¶
As for the images a variants selector has been introduced for the background
images allowing to adapt the background image size to the container width.
In case a content element isn't embedded into a structure element it is likely
that it should be displayed on the entire display width hence Full page width
should be selected.
Background¶
The bootstrap package offers a possibility to add a background image to the content element.
Its configuration has been adapted to enable the background image as well when no frame is used for the content element. In this case just a wrapping div is added.

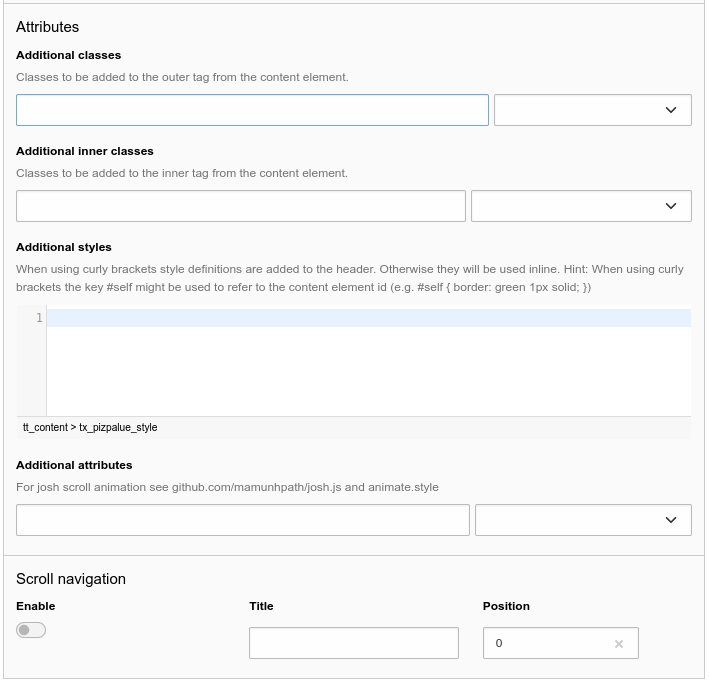

Attributes¶
Sometimes it would be handy to directly alter attributes from a content element. For example to assign additional classes, some inline style or new attributes.
This functionality has been added by introducing additional fields to the content element table and adapting the rendering accordingly. The new fields are available under the appearance tab in the "Attributes" section.
Some predefined classes and attributes can be assigned by help of the adjacent selector box. The selector box for the "Additional attributes" field shows data attributes related to the scroll animation.
Note
For security reasons all attributes are filtered. Currently just data attributes are allowed in the "Additional attributes" field.
Note
Style definitions will be included to the header when curly brackets are used. Otherwise they will be added inline.
Note
When defining styles the key #self
can be used to refer to the content
elements id attribute. Example:
#self .frame-inner { border: red 1px dashed; }
