web_layout

Configuration options of the "Web > Page" module.

allowInconsistentLanguageHandling

allowInconsistentLanguageHandling

Type: boolean

By default, TYPO3 will not allow you to mix translated content and independent content in the page module. Content elements violating this behavior will be marked in the page module and there is no UI control (yet) allowing you to create independent content elements in a given language.

If you want to go back to the old, inconsistent behavior, you can toggle it back on using this switch.

Example: Allow inconsistent language modes

Allows to set TYPO3s page module back to inconsistent language mode

EXT:site_package/Configuration/page.tsconfig

mod.web_layout.allowInconsistentLanguageHandling = 1

BackendLayouts

BackendLayouts

Type: array
no-index: 1

Backend Layouts were initially introduced in order to customize the view of the Page module in TYPO3 Backend for a page, but has then since grown also in Frontend rendering to select for example Fluid template files via TypoScript for a page, commonly used via data:pagelayout.

See also the dedicated chapter Backend layouts.

Example: Define a backend layout

EXT:site_package/Configuration/page.tsconfig

mod.web_layout.BackendLayouts {
    exampleKey {
        title = Example
        icon = EXT:example_extension/Resources/Public/Images/BackendLayouts/default.gif
        config {
            backend_layout {
                colCount = 1
                rowCount = 2
                rows {
                    1 {
                        columns {
                            1 {
                                name = LLL:EXT:frontend/Resources/Private/Language/locallang_ttc.xlf:colPos.I.3
                                colPos = 3
                                colspan = 1
                            }
                        }
                    }
                    2 {
                        columns {
                            1 {
                                name = Main
                                colPos = 0
                                colspan = 1
                                identifier = main
                            }
                        }
                    }
                }
            }
        }
    }
}

defaultLanguageLabel

Warning

Note that this option has largely been superseded by site configuration since TYPO3 v10 and will only work in the Backend for a "NullSite". For instance, a global sysfolder in the page tree without an attached site configuration. Once a page tree has a site configuration, the default language label is set from the site configuration's language settings and this option will have no effect at all.

defaultLanguageLabel

Type: string

Alternate label for "Default" when language labels are shown in the interface.

Overrides the same property from mod.SHARED if set.

defLangBinding

defLangBinding

Type: boolean
Default: 0

If set, translations of content elements are bound to the default record in the display. This means that within each column with content elements any translation found for exactly the shown default content element will be shown in the language column next to.

This display mode should be used depending on how the frontend is configured to display localization. The frontend must display localized pages by selecting the default content elements and for each one overlay with a possible translation if found.

hideRestrictedCols

hideRestrictedCols

Type: boolean
Default: false

If activated, only columns will be shown in the backend that the editor is allowed to access. All columns with access restriction are hidden in that case.

By default columns with restricted access are rendered with a message telling that the user doesn't have access. This may be useless and distracting or look repelling. Instead, all columns an editor doesn't have access to can be hidden:

EXT:site_package/Configuration/page.tsconfig

mod.web_layout.hideRestrictedCols = 1

Attention

This setting will break your layout if you are using backend layouts.

localization.enableCopy

localization.enableCopy

Type: boolean
Default: 1

Enables the creation of copies of content elements into languages in the translation wizard ("free mode").

Example: Disable free mode button for localization

EXT:site_package/Configuration/page.tsconfig

mod.web_layout {
    localization.enableCopy = 0
}

localization.enableTranslate

localization.enableTranslate

Type: boolean
Default: 1

Enables simple translations of content elements in the translation wizard ("connected mode").

Example: Disable "connected mode" button for translation

EXT:site_package/Configuration/page.tsconfig

mod.web_layout {
    localization.enableTranslate = 0
}

menu.functions

menu.functions

Type: array

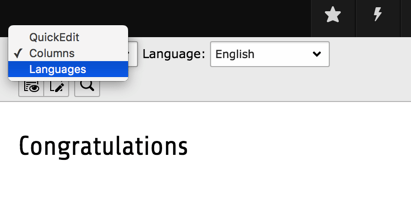

Disable elements of the "Function selector" in the document header of the module.

The function keys are numerical:

Columns: 1
Languages: 2

Warning

Blinding Function Menu items is not hardcore access control! All it does is hide the possibility of accessing that module functionality from the interface. It might be possible for users to hack their way around it and access the functionality anyways. You should use the option of blinding elements mostly to remove otherwise distracting options.

Example: Disable "Languages" from the function menu

EXT:site_package/Configuration/page.tsconfig

# Disables "Languages" from function menu
mod.web_layout.menu.functions {
    2 = 0
}

noCreateRecordsLink

noCreateRecordsLink

Type: boolean
Default: 0

If set, the link in the bottom of the page, "Create new record", is hidden.

tt_content.preview

tt_content.preview

Type: boolean

It is possible to render previews of your own content elements in the page module. By referencing a Fluid template you can create a visual representation of your content element, making it easier for an editor to understand what is going on on the page.

The syntax is as follows:

EXT:site_package/Configuration/page.tsconfig

mod.web_layout.tt_content.preview.[CTYPE].[list_type value] = EXT:site_mysite/Resources/Private/Templates/Preview/ExamplePlugin.html

This way you can even switch between previews for your plugins by supplying list as CType.

Note

This only works if the registered preview renderer for the content type uses Fluid rendering and the rendering is not overridden by using an event listener for the event \TYPO3\CMS\Backend\View\Event\PageContentPreviewRenderingEvent .

Have a look at \TYPO3\CMS\Backend\Preview\StandardContentPreviewRenderer and the various methods for customizing the preview rendering:

Register a preview renderer
Register an event listener for PageContentPreviewRenderingEvent

For checking for event listeners, see the list System > Configuration > Event Listeners (PSR-14) (available with installed EXT:lowlevel).

Example: Define previews for custom content elements

EXT:site_package/Configuration/page.tsconfig

mod.web_layout.tt_content {
    preview.custom_ce = EXT:site_mysite/Resources/Private/Templates/Preview/CustomCe.html
    preview.table = EXT:site_mysite/Resources/Private/Templates/Preview/Table.html
    preview.list.tx_news = EXT:site_mysite/Resources/Private/Templates/Preview/TxNews.html
}
