New content element wizard

Table of contents

The content element wizard opens when a new content element is created. It can be fully configured using ref:Page TSconfig <t3tsref:pagetsconfig>.

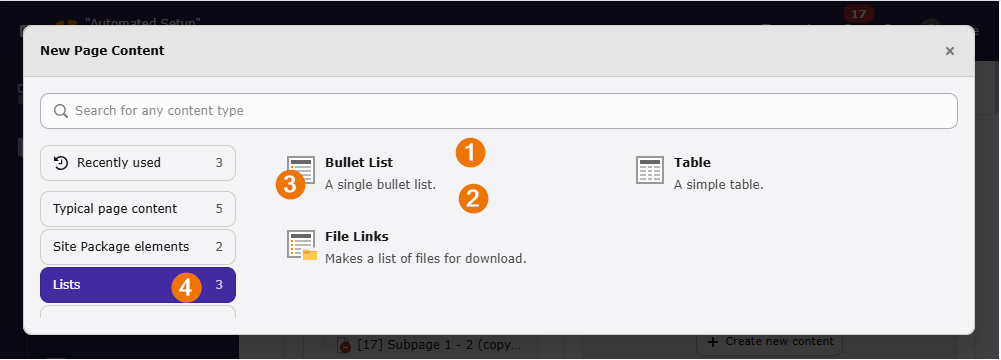

The wizard looks like this:

The title can be a string or, recommended, a language reference.
The description can be a string or, recommended, a language reference.
The group can be one of the existing group identifiers or a new one.
The icon can be one of the existing registered icon keys or a custom icon key registered in the icon API.

Any of these entries can be omitted. You should at least define a title.

New content elements are usually added in extensions in file EXT:my_extension/Configuration/Overrides/tt_content.php.

The following groups are available by default:

default: Default group for commonly used content elements
forms: Content elements representing forms like a contact form or a login form

lists

menu: Menus that can be inserted as content elements like a sitemap or a menu of all subpages.
plugins: Plugins provided by extensions
special: Content elements that are used of special cases

All content element groups are listed in $GLOBALS['TCA']['tt_content']['columns']['CType']['config']['itemGroups'] you can debug them in the TYPO3 backend using the backend module System > Configuration if typo3/cms-lowlevel is installed and you are an administrator.

Some third party extensions like bk2k/bootstrap-package are altering the available groups.

Plain content elements or plugins

You can add a content element or plain plugin (no Extbase) using method ExtensionManagementUtility::addPlugin(): of class \TYPO3\CMS\Core\Utility\ExtensionManagementUtility.

EXT:my_extension/Configuration/Overrides/tt_content.php

<?php

declare(strict_types=1);

use TYPO3\CMS\Core\Utility\ExtensionManagementUtility;

defined('TYPO3') or die();

ExtensionManagementUtility::addPlugin(
    [
        'label' => 'LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:myextension_myplugin_title',
        'value' => 'myextension_myplugin',
        'icon' => 'content-text',
        'group' => 'plugin',
        'description' => 'LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:myextension_myplugin_description',
    ],
);

The key value in the parameter $itemArray is used as key of the newly added content element representing the plugin.

Changed in version 14.0

The method's second and third parameter have been dropped. This method can only be used with the field CType of table tt_content.

This method supplies some default values:

group: Defaults to plugins

While it is still possible to use ExtensionManagementUtility::addTcaSelectItem() as is commonly seen in older extensions this method is not specific to content elements and therefore sets not default values for group and icon.

Plugins (Extbase) in the "New Content Element" wizard

To add an Extbase plugin you can use ExtensionManagementUtility::registerPlugin of class \TYPO3\CMS\Extbase\Utility\ExtensionManagementUtility.

This method is only available for Extbase plugins defined via ExtensionUtility::configurePlugin in file EXT:my_extension/ext_localconf.php

EXT:my_extension/Configuration/Overrides/tt_content.php

<?php

declare(strict_types=1);

use TYPO3\CMS\Extbase\Utility\ExtensionUtility;

defined('TYPO3') or die();

ExtensionUtility::registerPlugin(
    'my_extension',
    'MyPlugin',
    'LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:myextension_myplugin_title',
    'myextension_myplugin',
    'plugins',
    'LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:myextension_myplugin_description',
);

Override the wizard with page TSconfig

The TCA is always set globally for the complete TYPO3 installation. If you have a multi-site installation and want to alter the appearance of content elements in the wizard or remove certain content elements this can be done via page TSconfig. This is commonly done on a per site basis so you can use the Site set page TSconfig provider in your site package.

You can use the settings of newContentElement.wizardItems.

Remove items from the "New Content Element" wizard

Using [group].removeItems you can remove a content element type from the wizard.

EXT:my_sitepackage/Configuration/Sets/MySet/page.tsconfig

mod.wizards.newContentElement.wizardItems {
  special.removeItems := addToList(html)
}

This removes the content element "Plain HTML" from the group special.

Note

The affected content elements are only removed from the specified group and only in the wizard. Editors can still switch the CType selector to create such a content element. The content element might also appear in another tab.

Use User settings configuration to effectively ban usage for non-admin users.

You can also remove whole groups of content elements from the wizard:

EXT:my_sitepackage/Configuration/Sets/MySet/page.tsconfig

# This will remove the "menu" group
mod.wizards.newContentElement.wizardItems.removeItems := addToList(menu)

Change title, description, icon and default values in the wizard

You can use the following page tsconfig properties to change the display of the element in the wizard:

EXT:my_sitepackage/Configuration/Sets/MySet/page.tsconfig

mod.wizards.newContentElement.wizardItems {
  special.html {
    title = Plain HTML(use with care!!)
    description (
      Attention: This HTML is output unsanized! The editor is responsible
      to only use safe HTML content.
    )
    icon = mysitepackage_htmlattention
  }
}

Register a new group in the "New Content Element" wizard

New groups are added on the fly, however it is recommended to set a localized header:

EXT:my_extension/Configuration/Overrides/tt_content.php

<?php

declare(strict_types=1);

use TYPO3\CMS\Core\Utility\ExtensionManagementUtility;
use TYPO3\CMS\Extbase\Utility\ExtensionUtility;

defined('TYPO3') or die();

ExtensionManagementUtility::addTcaSelectItemGroup(
    'tt_content',
    'CType',
    'myextension_myplugingroup',
    'LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:myextension_myplugin.group',
);

ExtensionUtility::registerPlugin(
    'my_extension',
    'MyPlugin',
    'LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:myextension_myplugin_title',
    'myextension_myplugin',
    'myextension_myplugingroup',
    'LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:myextension_myplugin_description',
);

The headers can also be overridden on a per site basis using page TSconfig.

EXT:my_sitepackage/Configuration/Sets/MySet/page.tsconfig

mod.wizards.newContentElement.wizardItems {
  mygroup.header = LLL:EXT:my_extension/Resources/Private/Language/locallang.xlf:mygroup.header
}
